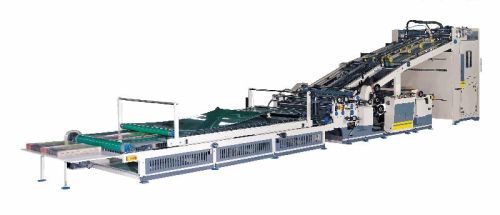

BZJ-1300 Flute Laminating Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Our BZJ-1300 Flute Laminating Machine is reckoned for its impressive performance and precise engineering. Our team professionals ensure that smooth transactions are done and for that reason, we accept payments through letter of credit & money transfer. This makes us most reliable amidst the clients. Keeping the quality standards high, we make certain that prior to production, the inputs (raw material) are examined by the professionals to make the final product free from defects.

View More Details

Send Enquiry

Specifications

Model	BJZ-1300S	BZJ-1300L	BZJ-1450S	BZJ-1450L	BZJ-1600
Max. Sheet Size W×L(mm)	1300×1100	1300×1300	1450×1100	1450×1300	1600×1450
Min. Sheet Size W×L(mm)	350×350	350×350	450×450	450×450	450×450
Min. Gsm of Bottom Paper	300	300	300	300	300
Max. Gsm of Bottom Paper	800	800	800	800	800
Max. Thickness(mm)	10	10	10	10	10
Min. Gsm of face paper (g/m )	180	180	180	180	180
Max. Gsm of face paper(g/m )	800	800	800	800	800
Laminating precision solid paper to solid paper	±1mm	±1mm	±1mm	±1mm	±1mm
Laminating precision solid paper to corrugated paper	±1.5mm	±1.5mm	±1.5mm	±1.5mm	±1.5mm
Total power(kW)	12	13	13	13	13
Production speed (s/m)	0-100	0-100	0-100	0-100	0-100
Overall dimension (m)	12.5×2.12×2.6	14.8×2.12×2.6	12.5×2.27×2.6	14.8×2.27×2.6	15.1×2.42×2.6
Total weight(kg)	6800	7200	7200	7600	7800
