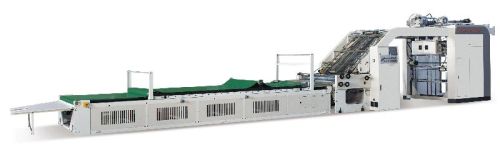

High Speed Flute Laminating Machine

1． computerized high-speed laminating, up to 10 thousand pieces per hour; 2. Face paper feeding adopts high speed feeder, ensure paper feeding accuracy under high speed; 3． bottom paper feeding: servo motor driven sucking belts mechanism makes paper feeding accurately and smoothly. 4． high precision coating glue conveying mechanism combined with side glue baffles of gluing rollers and auto liquid level control system, realize no spill of glue under high speed running and glue can be collected and reuse. 5． more sensors control relative position between face paper and bottom paper; servo motors on both side of face paper runs independently, compensating difference and positioning face paper and bottom accurately and smoothly. 6． application of man-machine interface, monitors real time state of machine running, abnormal conditions, and record works, stable performance, ce standard. Technical parameters： model gtm1412 gtm1650 max. Sheet size w×l(mm) 1400x1200 1650×1650 min. Sheet size w×l(mm) 450×450 450×450 . Gsm of bottom paper 200-500 200-500 max. Thickness of bottom paper(mm) 0.5-10 0.5-10 laminating precision ±1mm ±1mm max. Speed (sm) 140 140 total power(hp) 25 25 overall dimension (mm) 13.50×2.45×2.60 13.90×2.70×2.60 total weight(kg) 5500 6500
