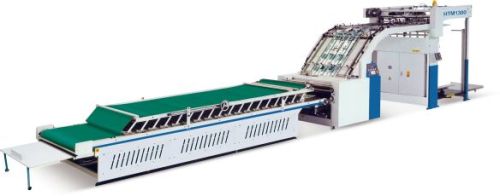

HTM-1300 Flute Laminating Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The HTM-1300 Flute Laminating Machine, we offer, is acclaimed for its make and durability. Being a blue-chip firm in this arena, we have set strong tie-ups with the leading e-commerce merchants who work for us and guarantee safe and secure transactions. Motivated by the aim to deliver nothing short of the best, we have grown as a reliable supplier of Automatic Flute Laminating Machine HTM-1300 1450 1600 in the market.

View More Details

Send Enquiry

Specifications

Model	HTM-1300S	HTM-1450S	HTM-1600
Max. Sheet Size W×L(mm)	1260*1250	1450*1450	1650*1650
Min. Sheet Size W×L(mm)	450*450	450*450	450*450
Face Paper (GSM)	250-450	250-450	250-450
Bottom paper(GSM)	250-450	250-450	250-450
Max. thickness	8mm	8mm	8mm
Laminating precision	2-5 front lay 1.5mm	2-5 Front lay 1.5 mm	2-5 ïfront lay 1.5mm
Total power(kW)	15	15	18
Max. Production speed (s/m)	6000	6000	6000
Overall dimension (m)	13.92.222.68	14.12.412.68	15.622.613.06
Total weight(kg)	6500	6800	7500
