Weifang Kaide Plastics Machinery Co. Ltd

Weifang, Shandong, China

• MOQ 1 Set(s)
• Brand NameKAIDE
• CertificationCE
• Producing Speed150m/min

• MOQ 1 Set(s)
• Speed 20m/min

We are offering ppr pipe line model:sj-65 screw diameter:65/50mm l/d:33:1 production scope:20mm-63mm production speed:20m/min total power:145kw line model:sj-80 screw diameter:80/65mm l/d:33:1 production scope:75mm-160mm production speed:6m/min total power:215kw 1.adopting the specialized high efficient extruder for glass fiber reinforced plastics, double metal screw and barrel, which ensures high speed extrusion and long service life for extruder. 2.special designed of adjusted co-die head adopts our company own intellectual property rights ensures even thickness of three layers, each of them can be adjusted freely online and no need to adjust the extruder' s rotating speed . 3.the pulling machine adopts structure of high speed multi-group roll wheel's type, completely subverting the vibration and skip in the traditional mode of pulling machine also ensures high-speed pulling stabily. 4.adopting high efficient and high speed dustless cutting machine that company has the proprietary intellectual property rights ensures smooth section and high speed cutting 5.in comparison with common ppr pipe, the product has features of high compressive strength, no -deformation under high temperature, no-bending defect of deformation of ppr pipe after transmitting hot water. 6.the entire production line adopts the originally imported new controlling system of plc programmable computer, guaranteed highly and steadily reliable controls of the production line. the parts of the production line 1.ppr extruder 2.glassfiber extruder 3.marking line extruder 4.die head mould 5.vacuum calibrating stand 6.water cooling flume 7.pulling machine 8.cutting machine 9.plc computer

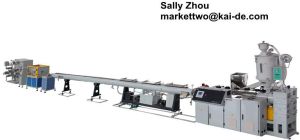

We are offering extrusion machine set model: sj-65 extruder model:sj-65/33 l/d:33:1 production scope:6-20mm production speed:50m/min total power:86kw/h normal power:48kw/h the production lines consists 1.pe single screw extruder 2.die head moulds 3.water dropper storage , filter and sort device 4.water dropper inlaid and transmission device 5.vacuum sizing and cooling tank 6.water immersion cooling water tank 7.the tracker 8.punching machine 9.double position coiling machine 10.plc computer system.

• MOQ 1 Set(s)
• Brand NameKAIDE
• CertificationCE
• Speed 20m/min
• Producing Speed20m/min

We are offering hdpe pipe production line. line model:sj-65 screw diameter:65mm l/d:33:1 production scope:20mm-63mm production speed:20m/min total power:115kw line model:sj-80 screw diameter:80mm l/d:33:1 production scope:75-160mm production speed:6m/min total power:164kw 1.high speed extruder adopts notched barrel(with water forced cooling transportation zone), shield screw with special mixing structure ensures the stability of high extruding and the plasticizing quality 2.specially structured spiral accumulator-type die head surmounts stress orientation of polymer chain during pipe forming and achieve smooth-pressure extruding , and makes the good physical and chemical properties of raw material being copied into the pipe, meanwhile the stability of the extruding pressure is the strong guarantee for high speed manufacturing 3.vacuum calibrating mandrel adopts our proprietary's multi-sheet water immersion calibrating mandrel (invention patents, practical new patents), realized the cooling calibrating evenly and effectively for plastic pipe, ensuring high production of the pipe 4.high speed flat belt pulling machine with multi-group roll wheel is specially designed for high speed pipe production , which can ensure the stable running during the production no matter at high or low speed 5.the entire production line adopts the originally new control system of plc programmable computer , guaranteed highly and steadily reliable controls of the production line. production line consists: 1.ppr extruder 2.marking line extruder 3.die head mould 4.vacuum calibrating stand 5.water cooling flume 6.pulling machine 7.cutting machine 8.plc computer.

• MOQ 1 Set(s)
• Brand NameKAIDE
• Certification CE

We are offering butt welding pex-al-pex pipe making machine. line model:sj-65 screw diameter:65/45/30mm l/d:33/25/25:1 production scope:16mm-32mm production speed:6-20m/min total power:175kw line model:sj-65 screw diameter:65/45/45 l/d:16-63mm production speed:3-20m/min total power:195kw features of production line 1.it adopts a famous programmable controlling system with the function of intelligent memory, it can not only run the whole line synchronously, but also realize the adjustment of single machine.it is equipped with a man-machine interface, the central ipc and 15" touched screen.it is operated easily and flexibly with international advanced automation. 2.the al-plastic pipe is formed by argon arc butt welding with a flat welding seam and good quality.an imported famous brand welder is equipped .the welding current is controlled by the pulling speed.equipped with double guns for instantaneous and automatic change.ensures quality of pipe and continuous production. 3.the advanced al-plastic pipe forming and positioning systems ensure the precision of al-plastic pipe and the rate finished product. 4.it adopts a special high frequency induction heating system for al-plastic pipe with energy saving and high efficiency.it also ensures the adhesive quality of the pipe .the production speed is improved in 3-5 times in comparison with that of electrical heating or flame heating device 5.the imported jet printer and the intelligent eddy current flaw detector are connected with plc.printing the setting contents and marks automatically with the sound and light alarm and the defect recorder 5.the extrusion line can be changed to produce the coaxial tv cable so as to enhance the market competitive power by replacing relative parts production line consists : 1.inner pipe extruder 2.auto loader 3.dryer 4.inner pipe die head 5.vacuum calibrating cooling flume 6.cooling flume 7.drying unit 8.plastic pipe pulling machine 9.aluminum tape releaser 10.aluminum tape forming machine 11.aluminum tape forming die head 12.argon arc butt welding machine 13.aluminum tape pulling machine 14.aluminum tape pulling jig 15.aluminum tape heating device 16.inner glue extruder 17.outer glue extruder 18.outer pipe extruder 19.outer pipe co-extrusion die head 20.cooling flume 21.plastic pipe pulling machine 22.flying knife cutting machine 23.stacker 24.double working position coiler 25.plc computer.

• MOQ 1 Set(s)
• Brand NameKAIDE
• Producing Speed20m/min
• Ceritifcation CE

We are offering ppr pipe making machinery. 1.line model:sj-45 screw diameter:45/45/30 l/d:33/25/25:1 production scope:16-32mm production speed:4-10m/min total power:93kw 2.line model:sj-50 screw diameter:50/45/30 l/d:33/30/25:1 production scope:16-63mm production speed:2-10m/min total power:105kw features of production line 1.this efficient extruder adopts our company own intellectual property rights .the part of die head, cooling unit, pulling unit, cutting unit have blend into a lot of necessary elements to produce plastic composite pipe with high-speed stably. 2.the aluminum pipe is formed by ultrasonic welders with a flat welding seam and good quality. 3.it's developed based on original production technology .up-date design and adopts the high-precision cnc and other advanced equipment to process the pipe forming mould and co-extrusion die head, increased the accuracy of pipe forming greatly. 4.it adopts the imported new generation plc programmable computer controlling system for high-speed synchronous and stable running. production line consists 1.aluminum tape releaser 2.aluminum tape saving machine 3.aluminum tape connecting machine 4.aluminum tape forming machine 5.inner pipe extruder 6.outer pipe extruder 7.inner & outer glue extruder 8.co-extrusion die head 9ultra-sonic welding machine 10cooling flume 11.pulling machine 12.coiling machine 13.plc computer.

• MOQ 1 Set(s)
• Brand NameKAIDE
• CertificationCE
• Producing Speed50m/min

We are offering ppr pipe machine. line model:sj-65 screw diameter:65mm l/d:33:1 production scope:20mm-63mm production speed:20m/min total power:115kw line model:sj-80 screw diameter:80mm l/d:33:1 production scope:75-160mm production speed:6m/min total power:164kw 1.high speed extruder adopts notched barrel(with water forced cooling transportation zone), shield screw with special mixing structure ensures the stability of high extruding and the plasticizing quality 2.specially structured spiral accumulator-type die head surmounts stress orientation of polymer chain during pipe forming and achieve smooth-pressure extruding , and makes the good physical and chemical properties of raw material being copied into the pipe, meanwhile the stability of the extruding pressure is the strong guarantee for high speed manufacturing 3.vacuum calibrating mandrel adopts our proprietary's multi-sheet water immersion calibrating mandrel (invention patents, practical new patents), realized the cooling calibrating evenly and effectively for plastic pipe, ensuring high production of the pipe 4.high speed flat belt pulling machine with multi-group roll wheel is specially designed for high speed pipe production , which can ensure the stable running during the production no matter at high or low speed 5.the entire production line adopts the originally new control system of plc programmable computer , guaranteed highly and steadily reliable controls of the production line. production line consists: 1.ppr extruder 2.marking line extruder 3.die head mould 4.vacuum calibrating stand 5.water cooling flume 6.pulling machine 7.cutting machine 8.plc computer.

• MOQ 1 Set(s)
• Brand NameKAIDE
• CertificationCE
• Producing Speed50m/min
