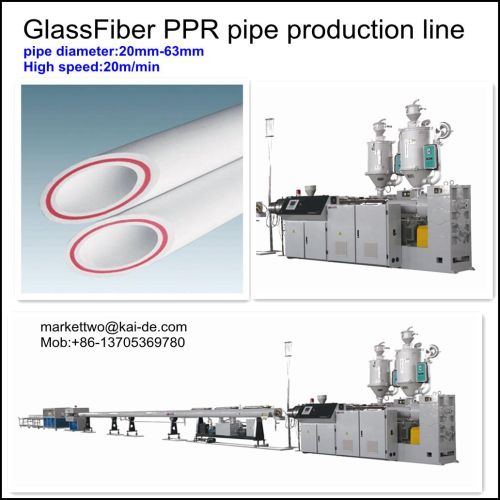

PPR Pipe

We are offering ppr pipe
line model:sj-65
screw diameter:65/50mm
l/d:33:1
production scope:20mm-63mm
production speed:20m/min
total power:145kw
line model:sj-80
screw diameter:80/65mm
l/d:33:1
production scope:75mm-160mm
production speed:6m/min
total power:215kw
1.adopting the specialized high efficient extruder for glass fiber reinforced plastics,double metal screw and barrel,which ensures high speed extrusion and long service life for extruder.
2.special designed of adjusted co-die head adopts our company own intellectual property rights ensures even thickness of three layers,each of them can be adjusted freely online and no need to adjust the extruder' s rotating speed .
3.the pulling machine adopts structure of high speed multi-group roll wheel's type,completely subverting the vibration and skip in the traditional mode of pulling machine also ensures high-speed pulling stabily.
4.adopting high efficient and high speed dustless cutting machine that company has the proprietary intellectual property rights ensures smooth section and high speed cutting
5.in comparison with common ppr pipe,the product has features of high compressive strength,no -deformation under high temperature,no-bending defect of deformation of ppr pipe after transmitting hot water.
6.the entire production line adopts the originally imported new controlling system of plc programmable computer,guaranteed highly and steadily reliable controls of the production line.
the parts of the production line
1.ppr extruder
2.glassfiber extruder
3.marking line extruder
4.die head mould
5.vacuum calibrating stand
6.water cooling flume
7.pulling machine
8.cutting machine
9.plc computer
