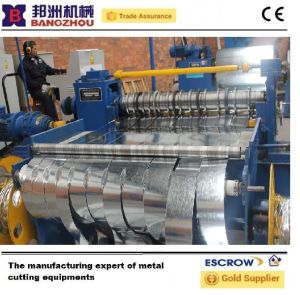

Technical parameters of simple automatic slitting machine 1. application cold rolled steel, galvanized steel 2. thickness of coiled plate 0.2-1.5mm 3. width of coiled plate 1250mm 4. width tolerance ±0.05mm2m 5. slitting speed 0-60mmin 6. loading capacity 10t 7. coil i.d 480-510mm 8. coil o.d ≤2000mm 9. knife pivot diameter of slitting 200mm 10. slitting blade 200×340×20 11. material of slitting blade 6crw2si 12. hardness of blade hrc58°—60° 13. recoiler i.d 508mm 14. power 380v three-phase 50hz 15. size 15*5 composed device of simple automatic slitting machine 1hydraulic entry coil car 2hydraulic de-coiler 3slitting machine 4scrap winder 5hydraulic tension stand 6recoiler 7hydraulic exit coil car 8hydraulic system 9electrical control system layout of machine steel coil hydraulic slitting line steel coil hydraulic slitting line packaging & shipping 1. package: machine devices will be naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes 2. delivery: 100 days 3. container: 1x40ot and 2x40gp 4. shipping: all the parts in the containers will be strengthened with the container to prevent the deveices from being slippedsteel coil hydraulic slitting linesteel coil hydraulic slitting line our services *****wuxi bangzhou machinery manufacturing co., ltd can design the machine as per your specific requirements. ******we test all the functions of each driven parts to ensure the elements are good quality *****we can help you to deliver the machiens to your country. ***** we can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.

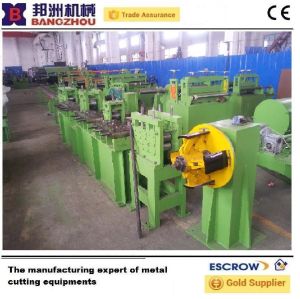

Technical parameters: 1. Application hot rolled steel, galvanized, etc 2. Thickness of coil plate 1-6mm 3. Width of coil plate 10-100mm 4. Precision of width +0.3~-0.9mm 5. Precision of fixed length 0~+5mm 6. Bending ≤2.5mmm 7. Pitch of cutting ≤2mm 8. Line speed 30mmin 9. Production incessantly 10. Operation person 1 technician and 1 common worker 11. Power 380V three-phase 50Hz 12. Size 8mx4m (Length xWidth) 13. Color green, as your require Composed device: No Name quantity 1 simple decoiler 1unit 2 7 roller-straightener 1unit 3 Chamfering and extrusion machine 1unit 4 2 roller-pinch and press device 1unit 5 Longitudinal straightener 1unit 6 Flat surface straightener 1unit 7 Hydraulic tracking cutting machine 1unit 8 Fixed length receive table 1unit 9 Electrical control system 1unit 10 Hydraulic system 1unit Characteristics: 1. Automatic procedure which is very easy to operate 2. Incessantly production can make the high output amount to maximize the flat bar straightening machine's function and value.automatic hot rolled steel flat bar leveler machine Packaging & Shipping 1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes 2. Delivery: 45-60 days 3. Container: 1x20GP 4. Shipping: All the parts in the containers will be strengthened with the container to prevent the deveices from being slipped.

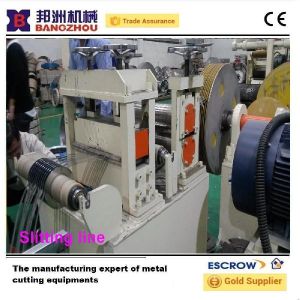

Technical parameters of simple automatic slitting machine 1. application crngo, galvanzied steel 2. thickness of coiled plate 0.2-3mm 3. width of coiled plate 650-1600mm 4. width tolerance ±0.05mm2m 5. slitting speed 0-120mmin 6. loading capacity 10t 7. coil i.d 480-510mm 8. coil o.d ≤1800mm 9. knife pivot diameter of slitting 200mm 10. slitting blade 200×340×20 11. material of slitting blade 6crw2si 12. hardness of blade hrc58°—60° 13. recoiler i.d 508mm 14. power 380v three-phase 50hz 15. size 15*5 composed device of simple automatic slitting machine 1.hydraulic coil car 2.hydraulic decoiler 3.hydraulic guiding and press, pinch and pre-leveling device 4.head-cutting machine 5.looper I 6.slitting machine 7.scrap winder 8. Looper ii 9.tension stand---damping device for pre-dividing and pressing 10.recoiler 11.hydraulic unload car 12.elecronic control system 13.hydraulic system layout of machine galvanized steel slitting machine galvanized steel slitting machine packaging & shipping 1. package: machine devices will be naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes 2. delivery: 100 days 3. container: 1x40ot and 2x40gp 4. shipping: all the parts in the containers will be strengthened with the container to prevent the deveices from being slippedgalvanized steel slitting machinegalvanized steel slitting machine

Technical parameters of simple automatic slitting machine 1. application CRNGO, Galvanzied steel 2. Thickness of coiled plate 0.2-3mm 3. Width of coiled plate 650-1600mm 4. width tolerance ±0.05mm2M 5. Slitting speed 0-120mmin 6. Loading capacity 10T 7. Coil I.D 480-510mm 8. Coil O.D ≤1800mm 9. Knife pivot diameter of slitting 200mm 10. Slitting blade 200×340×20 11. Material of slitting blade 6CrW2Si 12. Hardness of blade HRC58°—60° 13. Recoiler I.D 508mm 14. Power 380V three-phase 50Hz 15. Size 15*5 Composed device of simple automatic slitting machine 1.Hydraulic coil car 2.Hydraulic decoiler 3.Hydraulic guiding and press, pinch and pre-leveling device 4.Head-cutting machine 5.Looper I 6.Slitting machine 7.Scrap winder 8. Looper II 9.Tension stand---damping device for pre-dividing and pressing 10.Recoiler 11.Hydraulic unload car 12.Elecronic control system 13.Hydraulic system layout of machine galvanized steel slitting machine galvanized steel slitting machine Packaging & Shipping 1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes 2. Delivery: 100 days 3. Container: 1x40OT and 2x40GP 4. Shipping: All the parts in the containers will be strengthened with the container to prevent the deveices from being slippedgalvanized steel slitting machinegalvanized steel slitting machine

1. Technical parameter of high quality automatic cut to length machine 1 control model plc dc control 2 applied to carbon steel 3 thicknee 4-12mm 4 widness 800-2000mm 5 id 500-800mm 6 od 2000 7 coil weight 35t 8 diameter of leveling roller 180 9 distance of leveling roller 205 10 number of leveling rollers 13 11 material of leveling roll gcr15 12 material of cut blade cr6w2si 13 speed 25mmin 14 direction of feed material from right to left 15 length of lerance l=2m≤±1mm 16 diagonal of tolerance l=2m≤±1.5mm 17 power 380v3ph50hz(customized) composed devices : no name quantity 1v shaped table2 pieces 2hydraulic entry coil car1 set 3hydraulic double head decoiler1 pair 4press and pinch and shovel head device1 set 5transition table1 set 6side guide device1 set 7roller device1set 8straightening machine1 set 9code fixed length device1 set 1012x12000 cutter1 set 11pendulum clamp to send machine1 set 12unload table1 set 13pneumatic system1 set 14hydraulic system1 set 15electrical system1 set layout of cut to length line12mm thick steel coil sheet cut to length machine company introduction wuxi bangzhou machinery manufacturing co., ltd. Is located in jiangyin, wuxi city. We are one of the most professional machinery manufacturers in china, integrating design, production, sale and after-sales services. Our main products are steel coil slitting lines, steel cut to length machines, flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material. With our best service and machines' high quality, we have gained a great reputation in the field we welcome all friends to visit us. We are sincerely

High quality automatic cut to length machine 1. Technical parameter of high quality automatic cut to length machine 1 control model plc dc control 2 applied to carbon steel 3 thicknee 4-12mm 4 widness 800-2000mm 5 id 500-800mm 6 od 2000 7 coil weight 35t 8 diameter of leveling roller 180 9 distance of leveling roller 205 10 number of leveling rollers 13 11 material of leveling roll gcr15 12 material of cut blade cr6w2si 13 speed 25mmin 14 direction of feed material from right to left 15 length of lerance l=2m≤±1mm 16 diagonal of tolerance l=2m≤±1.5mm 17 power 380v3ph50hz(customized) composed devices : no name quantity 1 v shaped table 2 pieces 2 hydraulic entry coil car 1 set 3 hydraulic double head decoiler 1 pair 4 press and pinch and shovel head device 1 set 5 transition table 1 set 6 side guide device 1 set 7 roller device 1set 8 straightening machine 1 set 9 code fixed length device 1 set 10 12x12000 cutter 1 set 11 pendulum clamp to send machine 1 set 12 unload table 1 set 13 pneumatic system 1 set 14 hydraulic system 1 set 15 electrical system 1 set layout of cut to length linethick metal coil cut to length machine thick metal coil cut to length machine
