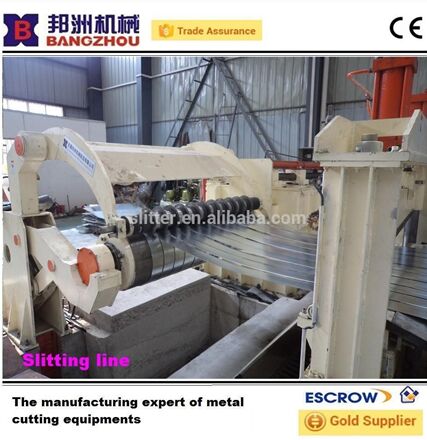

Full Aotomatic Slitting Line Price

1. Technical parameter of high quality automatic cut to length machine
1 control model plc dc control
2 applied to carbon steel
3 thicknee 4-12mm
4 widness 800-2000mm
5 id 500-800mm
6 od 2000
7 coil weight 35t
8 diameter of leveling roller 180
9 distance of leveling roller 205
10 number of leveling rollers 13
11 material of leveling roll gcr15
12 material of cut blade cr6w2si
13 speed 25mmin
14 direction of feed material from right to left
15 length of lerance l=2m≤±1mm
16 diagonal of tolerance l=2m≤±1.5mm
17 power 380v3ph50hz(customized)
composed devices :
no
name
quantity
1v shaped table2 pieces
2hydraulic entry coil car1 set
3hydraulic double head decoiler1 pair
4press and pinch and shovel head device1 set
5transition table1 set
6side guide device1 set
7roller device1set
8straightening machine1 set
9code fixed length device1 set
1012x12000 cutter1 set
11pendulum clamp to send machine1 set
12unload table1 set
13pneumatic system1 set
14hydraulic system1 set
15electrical system1 set
layout of cut to length line12mm thick steel coil sheet cut to length machine
company introduction
wuxi bangzhou machinery manufacturing co., ltd. Is located in jiangyin, wuxi city. We are one of the most professional machinery manufacturers in china, integrating design, production, sale and after-sales services.
Our main products are steel coil slitting lines, steel cut to length machines, flat bar chamfering, deburring and straightening machines, . Our products are supplied to roll forming machine and pipe welding factories and can be also applied to other industries which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field
