Cut To Length Machine

High quality automatic cut to length machine
1. Technical parameter of high quality automatic cut to length machine
1 control model plc dc control
2 applied to carbon steel
3 thicknee 4-12mm
4 widness 800-2000mm
5 id 500-800mm
6 od 2000
7 coil weight 35t
8 diameter of leveling roller 180
9 distance of leveling roller 205
10 number of leveling rollers 13
11 material of leveling roll gcr15
12 material of cut blade cr6w2si
13 speed 25mmin
14 direction of feed material from right to left
15 length of lerance l=2m≤±1mm
16 diagonal of tolerance l=2m≤±1.5mm
17 power 380v3ph50hz(customized)

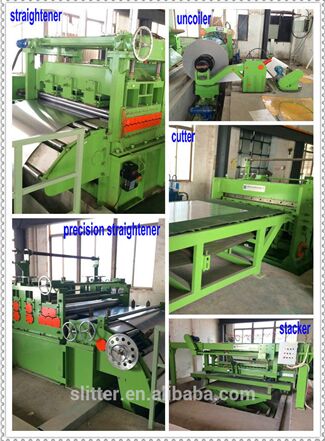

composed devices :
no
name
quantity
1
v shaped table
2 pieces
2
hydraulic entry coil car
1 set
3
hydraulic double head decoiler
1 pair
4
press and pinch and shovel head device
1 set
5
transition table
1 set
6
side guide device
1 set
7
roller device
1set
8
straightening machine
1 set
9
code fixed length device
1 set
10
12x12000 cutter
1 set
11
pendulum clamp to send machine
1 set
12
unload table
1 set
13
pneumatic system
1 set
14
hydraulic system
1 set
15
electrical system
1 set
layout of cut to length linethick metal coil cut to length machine
thick metal coil cut to length machine
