Welcome to Wuxi Haoshuo Technology Co., Ltd.
Manufacturer / Exporter / Service Provider / Supplier Of Roll Forming Machines, Slitting Line, Cut To Length Line, Transformer Line, PU Sandwich Panel Line, Welding Tube Mill, Steel Coil Slitting Line, Experienced in Professional Mechanical Sales, Engineers Available to Service Machine Overseas
Jasmyn
Jasmyn
Primary Business
Supplier

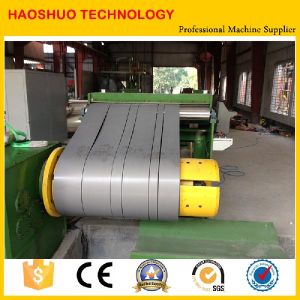

The line is fullgh speed and high precisioy automatic, especially for silicon steel (crgo) coil longitudinal slitting with hin. The wide coil (10001250mm) shall be opened and cut into required width strips and then rewinded into rolled coil. the line speed is up to 120mmin, the min. Slits width can be 8mm10mm20mm, as per your requirements. the main working flow is feeding trolley� hydraulic single-load un-coiler� feeding unit� plate head cutter� rectification unit� main slitter � scrap winder� loop bridge and buffer pit � pre-distribution & tensioning machine� recoiler � unloading trolley� hydraulic & electric control
This leveling cut to length line is used for leveling and cutting to length of panels. We have series of cut to length lines, with thickness from 0.2 to 80mm and width up to 3600mm. The cut to length includes decoiler, guiding device (lead head, press head, shovel head), pinch roll for feeding, centering and calibrating device, leveler, cut to length machine, stacker, and unloading trolley. And its main components are decoiler, leveler, cut to length machine, stacker and plc control system.

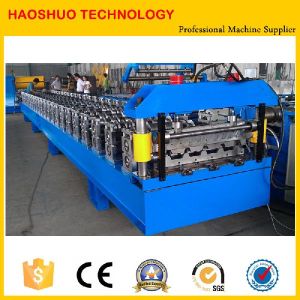

The roll forming is a continuous bending operation in which a long strip of metal (typically coiled steel) is passed through consecutive sets of rolls, or stands, each performing only an incremental part of the bend, until the desired cross-section profile is obtained. The roll forming is ideal for producing parts with long lengths or in large quantities. The cold roll forming is a bending operation in which multipass forming rolls, which have been configurated orderly, continuously laterally bend metal panel such as coiled material, and strip steel. In that way, specific section forming panel is obtained. The cold roll forming is a new technology, which has high efficiency and saves material and energy. Employing this kind of technology, we can not only manufacture high quality forming steel products, but also shorten cycles of product development and improve production efficiency. In that way, our market competitiveness is greatly improved.
This welding tube mill is the main equipment for producing straight seam welding tubes in many departments, such as metallurgy, machinery, light industry, and building materials, etc. This welding tube mill can roll certain specification long steel belt into tube barrels, and then weld those tube barrels into tubes. And this machine can be used to manufacture profiled pipes as well as round pipes. The main components of this equipment includes decoiler, buffer pit, hydraulic shear, roll former, flying saw cutter, blanking table, and solid-state high frequency welding.

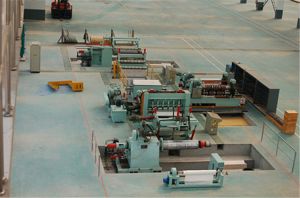

This slitting line is used for slitting raw material coils into strips. This machine can slit raw material coils into specific width. Our company has series of slitting lines, with thickness of 0.1-25mm and width up to 2500mm. The slitting line normally includes loading trolley, decoiler�guiding device (including lead head, press head, shovel head), coil head shear, centering and calibrating device, slitting machine, scrap rewinder, pre-distribution and tensioning machine, recoiler, and unloading trolley. And the main components are decoiler, slitting machine, scrap rewinder, recoiler, and plc control system.
