Wuxi Rollbank Machinery Co.,Ltd

• MOQ 1 Set(s)

Cz purlin roll forming machine is fully-automatically controlled by plc. Compared with other type cz purlin machine, it’s reliable for running steadily, punching hole in a highly precision, high output and inerratic and smooth surface of the notch. producing process sketch of pre-punching pre-cutting cz purlin roll forming machine: technological process of pre-punching pre-cutting cz purlin roll forming machine: uncoiling—feeding—leveling—pre-punching &pre-cutting—roll forming—products collecting main technical specifications of pre-punching pre-cutting cz purlin roll forming machine: number items unittype rf-cp-1 rf-zp-1 1 purlin specification mm 80-300 100-300 2 steel thickness mm 2.0-3.0 2.0-3.0 3 forming speed mmin 10-15 10-15 4 roller stands stand 18 20 5 material of roller 45# steel, coated with chrome 45# steel, coated with chrome 6 main motor power kw 15 18 7 hydraulic power kw 11 11 8 hydraulic pressure mpa mpa 20 20 9 power supply 380v, 50hz, 3 phase 380v, 50hz, 3 phase 10 tolerance mm 1.5 1.5 11 material of cutting cr12 cr12 12 control system plc with touch screen plc with touch screen 13 machine net weight t 14 15.

• MOQ 1 Set(s)

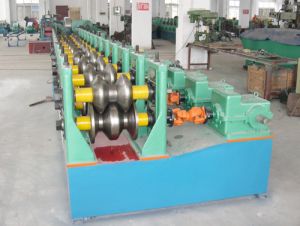

We offer guard railway roll forming machine. Number items unittype rf-rc 1 steel thickness mm 2-4 2 forming speed mmin 8-12 3 roller stands stand 16 4 roller material 45# steel, coated with chrome 5 main motor power kw 55 6 hydraulic cutting power kw 7.5 7 hydraulic pressure mpa 12 8 power supply 380v, 50hz, 3 phase 9 tolerance mm 1.5 10 material of cutting cr12 11 control system plc with touch screen 12 machine net weight t 20.

• MOQ 1 Set(s)

We are offering corrugated roof roll forming machine. Rolling speed : 12-15mmin(cutting time is not include) steel sheet thickness:0.3-0.8mm control system:plc:(panasonic) un coiler: 5 ton manual roller stations:20-24stations(for 24 stations the price would be a little higher) roller material : 45# forge steel, coated with chrome shaft material and dia: ￠65mm, material is 45# forge steel main motor power: 5.5kw hydraulic station power: 3kw hydraulic pressure: 15mpa material of cutting: cr12mov quenching 60-62℃ material of the stations: memorial archway tolerance:3m+1.5mm power supplier: 220 single-phase vac or 380 vac to 50 hz. way of drive:1.2 inch single chain color of the machine:blue max outer dimension:14m*1.5m*1.3m machine net weight:15t.

• MOQ 1 Set(s)

We offer gutter roll forming machine. For quotation with detail specification, please send us drawing of gutter. We can make machine according to your profile. following is some data and photo of machine for your reference. including: decoiler----guiding ---roll former--cutter--cun out table, controlled by plc roll forming machine rolling speed 15-20mmin(not include cutting time) rolling thickness 0.3-0.6mm raw material galvanized steel sheet dimension 5500×1600×1500(mm) effective width roller stations 15 stationsone stage for embossing roller material 45#forge steel, coated with chrome shaft diameter:φ70mm, material is 45# forge steel transmission:by chain1 inch material of chain:45# forged steel with frequency quenching, 12a material of cutting:cr12mov with quench hrc58-62° tolerance: 6m+-1.5mm frame h type steel.

• MOQ 1 Set(s)

We offer cable tray forming machine forming steps: 18 material thickness: 0.8mm-1.5mm material width: 300mm-800mm speed: (5-16) mmin motor power: 25kw hydraulic cutting:7.5kw wuxi rollbank machinery co.ltd is engaged in the research, manufacturing and export sales of various cold roll forming machinery including roofwall roll forming machine , pu sandwich panel line , purlin roll forming machine , deck floor roll forming machine, shelf roll forming machine, guard railway forming machine.rain spout forming machine. Color tile forming machine, door frame roll forming machine and we experienced in customers design, installation and test, technical solution and after-sale services, innovation, high quality, internationalization is our corporate core. We have been sold out our machines to many countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation. We are expecting you.

• MOQ 1 Set(s)

We offer roof/wall panel roll forming machine. details： 1) production characteristic and use: this kind of machine used in simple house, steel plants and other wall board production, speeds up to 30 m min, greatly improve the production efficiency. 2) main technical specification: ①material thickness: 0.3-0.8mm working speed: 12-15mmin roll station: 18 stations （depend on the profile） main power: 5.5kw hydraulic power: 3kw control system: plc panasonic drive: by chain ②material thickness: 0.3-0.8mm working speed: 25-30mmin roll station: 18 stations （depend on the profile） main power: 7.5kw hydraulic power: 3kw control system: plc panasonic drive: by chain.
