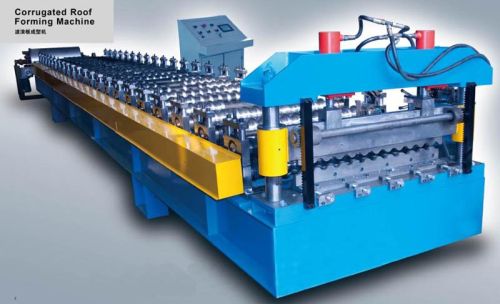

Corrugated Roof Roll Forming Machine

₹ 89 / Set

MOQ1 Set(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering corrugated roof roll forming machine. Rolling speed : 12-15mmin(cutting time is not include) steel sheet thickness:0.3-0.8mm control system:plc:(panasonic) un coiler: 5 ton manual....

Company Information

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering corrugated roof roll forming machine.
Rolling speed : 12-15mmin(cutting time is not include)
steel sheet thickness:0.3-0.8mm
control system:plc:(panasonic)
un coiler: 5 ton manual roller stations:20-24stations(for 24 stations the price would be a little higher)
roller material : 45# forge steel, coated with chrome
shaft material and dia: ￠65mm, material is 45# forge steel
main motor power: 5.5kw
hydraulic station power: 3kw
hydraulic pressure: 15mpa
material of cutting: cr12mov quenching 60-62℃
material of the stations: memorial archway
tolerance:3m+1.5mm power supplier: 220 single-phase vac or 380 vac to 50 hz.
way of drive:1.2 inch single chain color of the machine:blue
max outer dimension:14m*1.5m*1.3m
machine net weight:15t.
