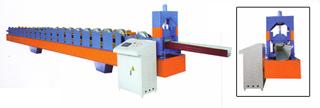

We offer gutter roll forming machine.
For quotation with detail specification, please send us drawing of gutter. We can make machine according to your profile.
following is some data and photo of machine for your reference.
including:
decoiler----guiding ---roll former--cutter--cun out table,
controlled by plc
roll forming machine
rolling speed 15-20mmin(not include cutting time)
rolling thickness 0.3-0.6mm
raw material galvanized steel sheet
dimension 5500×1600×1500(mm)
effective width
roller stations 15 stationsone stage for embossing
roller material 45#forge steel, coated with chrome
shaft diameter:φ70mm,material is 45# forge steel
transmission:by chain1 inch
material of chain:45# forged steel with frequency quenching, 12a
material of cutting:cr12mov with quench hrc58-62°
tolerance: 6m+-1.5mm
frame h type steel.
