- MOQ 1 Set(s)
- batteryBuilt-in rechargeable lithium battery 8000MAH
- Operating LanguageEnglish/Chinese
- e-mailsales@idea-ndt.com
- tel86-592-6301913
- weight2 kg
- frequency10 Hz～10 MHz
- Probe driver1-8
- MSNvilinezhang@hotmail.com
- webwww.idea-ndt.com
- size210*130*90 mm
- colorblack
- Phase rotation0～359°
- Yahoovilinezhang@yahoo.com
- .Operating temperature -20° ～ 50°Ｃ
- contact Ms Viline Zhang
- gain0 dB～99 dB

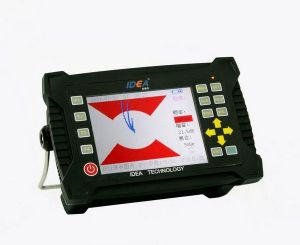

Here one of the leading ndt detectors supplier and manufacturer with solid r&d strength of more than 40 professional research engineers. Products mainly includes eddy current detectors, magnetic flux leakage detectors, magnetic memory detectors, ultrasonic detectors and industrial endoscopes. specifications 1. Eddy current testing signals playback, analysis, storage, printing 2. Usb 2.0 (host) connection for output 3. Intelligent digital design, easy to operate 4. High-accuracy, high-efficiency testing 5. Various testing schemes according to the userâ��s requirements 6. Compact design, portable 7. Easy operation, real-time on-screen instruction, fool-style operation available technical parameter 1.large screen, high-luminance 5.7â�³color tft-lcd, overcomes the shortcomings of the traditional monochrome screen display 2.frequency range: 10â hzï½�10â mhz, continuously adjustable 3.gain: 0â dbï½�99â db, with wide adjustable range 4.phase rotation: 0ï½�359â°, flexible phase rotation 5.testing speed: >100m/min, meets various testing requirements 6.testing accuracy up to: 0.01mmï¼� 7. Lift-off height: >3mm, no need for surface clearance. 8.fast digital electronic balance 9.phase/non-constant amplitude, box and fan-shape alarm modes to meet various testing requirements 10. Probe driver: 1-8. To meet the requirements of various probe structure and achieve multifunction in the real sense 11.independent x and y gain ratio 12.digital filtering: high-pass frequency (0hz ~ 2000hz), low-pass frequency (0hz ~ 2000hz) 13.usb 2.0 (host) connection for output 14.eddy current testing signals playback, analysis, storage, printing 15.operating system: linuxâ 2.6â â 16.operating language: chinese, english 17.easy to operate, real time on-screen instruction 18. On-line hot-key graphics, text help. 19.built-in rechargeable lithium battery 8000mah 20.rectangular coordinate system and polar coordinates 21. Center coordinates: x/y, adjustable. 22.automatically display the date, time and battery capacity 23.operating temperature: â -20â°â ï½�â 50â°ï¼£ 24.instrument size: 210â mmâ xâ 130â mmâ xâ 90â mm 25.instrument weight: 2.0kg for more details, welcome to contact me directly
