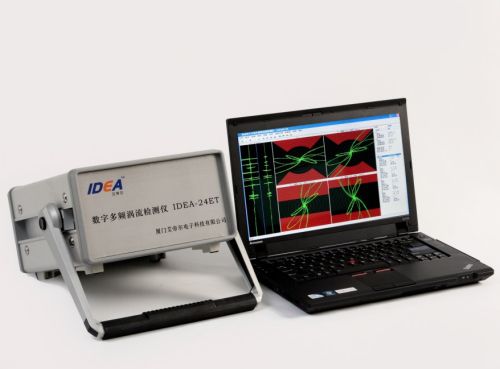

IDEA-24ET Remote Field Ndt Eddy Current Measuring Gauges For Heat Exchanger/boilers/pressure Vessels

1. Frequency range: 50 Hz ~ 10 MHz
2. Two independently selectable frequencies
3. 3 mixing unit (automatic mixer)
4. Real-time trace memory of 4 eddy current signals
5. Gain range: 0 ~ 99dB continuously adjustable, the work of each file 0.1dB step
6. Phase Rotation: 0 ~ 359 ° continuously adjustable, precision 1 °. In the phase-setting process, the screen instantly displays the phase change in impedance after the plans and eddy current signal amplitude and phase values, convenient and intuitive
7. Adjustable probe stimulus, 1-8
8. Fast digital / analog electronic balance
9. Four trace impedance plane diagram and eight internal belt curve analysis display,
10. time-base scan display.
11. Delayed blanking function of memory path
12. Menu-driven man-machine dialogue (in English and Chinese versions, Chinese Traditional / Simplified fonts optional).
13. Operating system is Win98, WinMe, Win2000, WinNT, WinXp.
14. Automatic signal amplitude and phase measurements, and eddy current signals slow (adjustable) playback
15. Digital filtering: Low-pass: 0hz ~ 2000hz, high-pass: 0hz ~ 2000h.
16. Configuration analysis function
17. Can be equipped with access absolute, differential and self-comparison forms, including through type, interpolation type, flat type, point, rotary and other probe
18. With a unique non-constant-amplitude phase / amplitude domain Alarm
19. Multiple hardware alarm output port
20. Real-time alarm output, delayed alarm output
21. Mass storage can be various testing procedures and test data
22. C-scan display
23. Automatic Phase / defect depth curves show
24. One-screen display the cross-section diagram of in-service pipeline, the rank number of tested tubes, and the eddy current testing signals.
25. Classified marks of pipe cross-section diagram, to form eddy current testing overview map of in-service pipeline
26. Classified statistical test results (tables and histogram display), to facilitate the cumulative analysis of test results
27. Automatically display the calendar and time
28. Optional Data Analysis System
