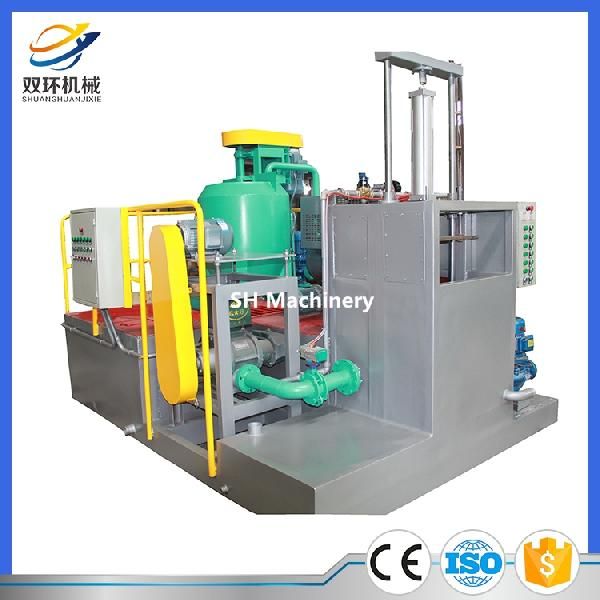

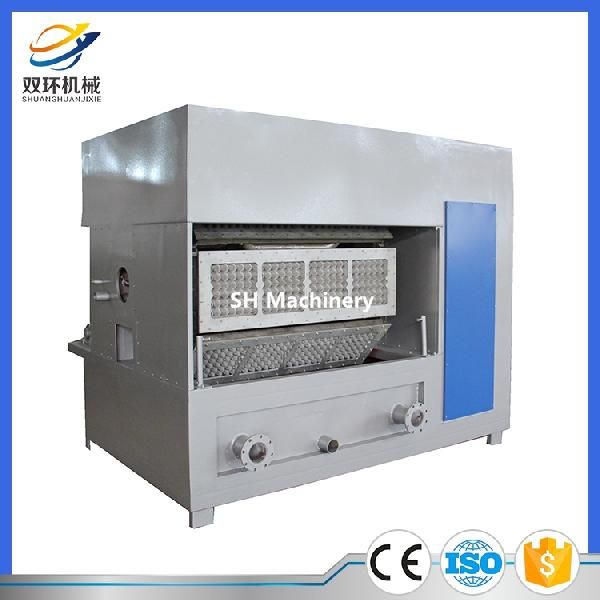

integrated Egg Tray Machine is semi automatic egg tray machine. It doesnt have drying system, because its capacity is very small, so we can drying egg tray by sunshine. But if you need drying line, we also can design it for you.2. Forming MachineReciprocating Egg Tray Machine SHW-700 and SHW-900.Name Model CapacityReciprocating Egg Tray Machine SHW-700 600-720PCSHRSHW-900 900-1000PCSHR SHW-700 and SHW-900 are in reciprocating motion (up and down), lower die (forming dies) molded products by vacuum pump working , The upper die (transfer mold) will match with lower die after vacuum dehydration, then sending the finished product to platform.3. Mold Type:In Shuanghuan Machinery, we have 17 kinds of molds, there are 5 popular molds in the form. We also can design the mold according to your product.In the sale of services* we are in charge of installing, debugging and training* technical guidance of frequently asked questionsAfter-sales service* one year guarantee for whole machine except of quick-wear part* 24 hours technical support by emailphone* calling, network or door-to-door service* use friendly English software, user manual and detailed VideosCD

Introduction 1. Pulping system: this is the first step to making egg tray. We put the waste paper to pulper to make pulp, after some support equipment and 3 pulp pools, the pulp concentration will become 0.8%-1%. 2. Forming system: in forming system, forming machine and the support equipments make the pulp become the egg tray. eight platens rotating egg tray machine has 4 kinds of forming machine; shz-2700shz-3600shz-4500shz-5000 .Model mold (forming + transferring) platen sizeshz-2700 3x8 + 3 pcs 1100 x 450mmshz-3600 4x8 + 4 pcs 1450 x 450mmshz-4500 5x8 + 5 pcs 1800 x 450mmshz-5000 4x8 + 4 pcs 1450 x 450mm3. Drying system & packing systemwe have 3 kinds of drying system. A. Single brick drying lineb. Single metal drying linec. Multi metal drying line
