We are leaders in the market for providing best range of Egg Carton Machine

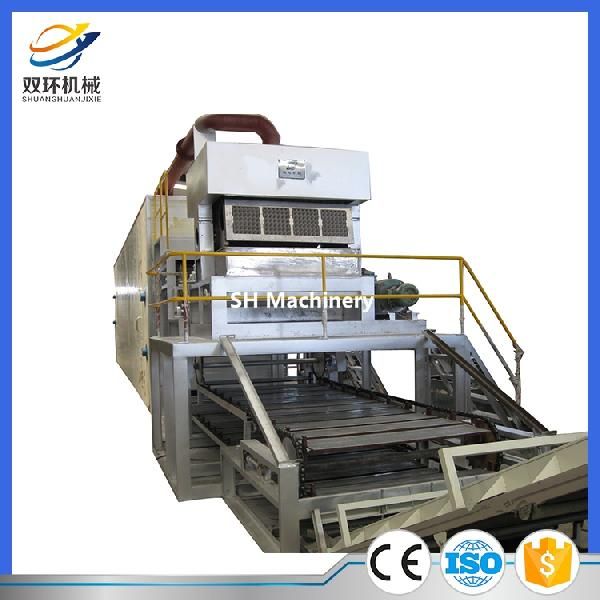

Egg Carton Machine

Min. Order (MOQ) 1 Set(s)
Frequency 50Hz/60Hz
Business Scale: Paper mill, Chicken farm, Investment project
Pulp concentration for molding machine: 0.8-1%
Pressure of compressed air 0.5-0.7Mpa

Introduction1. Pulping system:This is the first step to making egg tray.We put the waste paper to pulper to make pulp, after some support equipment and 3 pulp pools, the pulp concentration will become 0.8%-1%.2. Forming system:In Forming system, forming machine and the support equipments make the pulp become the egg tray.Eight Platens Rotating Egg Tray Machine has 4 kinds of forming machine;SHZ-2700/SHZ-3600/SHZ-4500/SHZ-5000 .Model Mold (forming + transferring) Platen SizeSHZ-2700 3X8 + 3 pcs 1100 x 450mmSHZ-3600 4X8 + 4 pcs 1450 x 450mmSHZ-4500 5X8 + 5 pcs 1800 x 450mmSHZ-5000 4X8 + 4 pcs 1450 x 450mm3. Drying system & Packing systemWe have 3 kinds of drying system.A. Single Brick Drying LineB. Single Metal Drying LineC. Multi Metal Drying Line

Additional Information:

Payment Terms : L/C, D/P, T/T

Packaging Details : wrapped with corrugated sheets, then fixed by steel wires in the container.

Delivery Time : 30 working days
