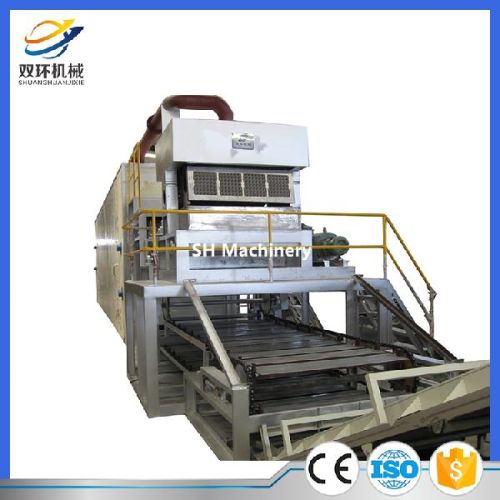

50Hz/60Hz Egg Carton Machine

Introduction
1. Pulping system:
This is the first step to making egg tray.
We put the waste paper to pulper to make pulp, after some support equipment and 3 pulp pools, the pulp concentration will become 0.8%-1%.
2. Forming system:
In Forming system, forming machine and the support equipments make the pulp become the egg tray.
Eight Platens Rotating Egg Tray Machine has 4 kinds of forming machine;
SHZ-2700/SHZ-3600/SHZ-4500/SHZ-5000 .
Model Mold (forming + transferring) Platen Size
SHZ-2700 3X8 + 3 pcs 1100 x 450mm
SHZ-3600 4X8 + 4 pcs 1450 x 450mm
SHZ-4500 5X8 + 5 pcs 1800 x 450mm
SHZ-5000 4X8 + 4 pcs 1450 x 450mm
3. Drying system & Packing system
We have 3 kinds of drying system.
A. Single Brick Drying Line
B. Single Metal Drying Line
C. Multi Metal Drying Line
