DGD-SD6A Power cable fault locator Main function With the function of cable path indication and left or right orientation indication Integration type with receiver and probe together, easy to operate Features and technical data Can synchronously receive sound and electromagnetic waves when fault point discharge with strong anti-interference. . Test error: ±0.1m Fliter range: 100Hz-5000Hz Working power: DC 9V(1±20%)

• MOQ 1 Set(s)

Dgs-av/35-5 Cable Fault Tester working Power: Ac 220v(1â±10%) 50hz(1â±5%), Dc 24v Internal Storage Battery Operation: Keyboard communciation: Rs232 and Usb 2.0 (special Software Communicates with Pc) 5 5a 5b 5c 5d display 5"lcd 5"lcd 6" Army-grade Lcd 5"lcd 6"colour Lcd operating Temperature -10â°c~40â°c -10â°c~40â°c -25â°c~70â°c -10â°c~40â°c -20â°c~50â°c humidity Rhâ?¤95% Rhâ?¤95% Rhâ?¤95% Rhâ?¤85% Rhâ?¤90% printer Integration Integration Integration External Integration size 360*240*180mm 360*240*180mm 360*240*180mm 210*150*120mm 360*240*180mm weight 6.4kg 6.5kg 6.6kg 2kg 6.5kg Dgs-av/35-5c Dgs-av/35-5

Cable Test Van for 35kv and Lower system Outline Composition van Type: Transit or Ivecooutline: Balance Weight, Fine Outline for Whole Body, Personalized Operation Platform features generator: the Special Slideway for Generator is Equipped At the Rear Left Door for Which is a Open Type Working Condition.there is Caliper At Slideway to Prevent the Slide of Generator power System:over-current, Over-voltage Protector.hidden Location Helps the Better Power Supply and Safety the Location of Auxiliary Parts: Rack with Lock for the Convenient Practice outlet and Caliper: Strands of Wire Rack is Matched with the Outlet At the Rear Right Door, When in Detection all Doors Locked for No Interruption of Normal Work.the Room of Wire Rack and Outlet is Equipped with Caliper-rack to Fix the Position of Hv Detection Wire to Avoid is the Squeeze When Closes the Door. van Lighting; 220v Light is Added At the Top of Van to Supply Enough Light in the Van. the Space Application of Main Equipment: the Front of the Slide-door is Designed as a Drawer Type Tool-box and Filling Space for Equipment Cubicle.main Equipment is Put At the Left of Side-door to Make It Look Nice and Give Enough Space for Operation seats Layout: Singal Seats are Added Behind the Driver Seats for Thr Convenience of Work. basic Function of System ac Voltage Withstand Test is Applied to 10kv(and Lower)cable and other Electric Equipment By the Application of Ultra-low Frequency or Converter Harmony. to Carry Out the Coarse Detection of all Types of Cable Fault By Wave-reflection Principe(impulse, Flashing and Comprehensive Sampling Way) to Carry Out the fine Position of Various Fault Points By Sound-magnetic Synchronization to Carry Out the Accurate Detection for Unknown Cable Path and Depth By Electromagnetic Induction Principle to Acknowledge the Identification Strands of Cable and Pricking system Composition imported Generator, Special Operation Platform, Detection Software and Cable Management System. complete Set of Detection Equipment of Cable Fault: Dgs Series Cable Fault Tester, Dgd Series Cable Fault Locator, Dgl Series Cable Path Finder, Dgsy Series Integration of Detection Equipment of Cable Fault identification System of Power Cable: Include Cable Identification and Pricker Etc ac Voltage Withstand Test Equipment: Cdpz Series Ultra-low Frequency (0.1hz) or Xzf Converter Harmony auxiliary Testing Device and Hv Outlet Leads: E-meter, Measurement Gauge, Phase Instrument, Tool-box and Hv Outlet Leads

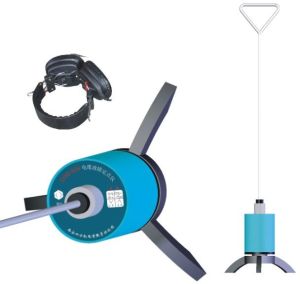

Dgd-sd5 Power Cable Fault Locator aplication: discharge the Fault Point Under the Impulse of High Voltage(fz, Gzf, Cxz Etc )and Carry Out the Accurate Orientation of Fault Point in the Coarse Detection. features and Technical Data; can Synchronously Receive Sound and Electromagnetic Waves When Fault Point Discharge with Strong Anti-interference. structures Features: Receiver and Detector Separate.army-grade Anti-noise Earphone. Detector is Made of Sepcial Technology with Professional Sound Collector display: Double Indiciator with Sound and Magnetic Strength.led Show the Comparative Distance of Fault Point working Method:orientation By Sound, By Distance and By Both. test Error: ±0.1m distance Measure Range: 0.1msâ??999.9ms gain: 0-170db Continuously Adjustment fliter Range: 60hz-3000hz working Power: Dc 12v(1â±20%)

• MOQ 1 Set(s)

Power cable fault tester Quick detect all the faults of 35KV (and lower)cable and wire, display the tap position of cable and calibrate the length of cable. Main functions: Measure the distance, speed and resistance. Continuously auto-sampling and no discharge wave will be neglected. Auto-judge the discharge of fault point, the process is reminded by english menu. Test the fault type automatically and indicate the test method Automatic measurement to find the fault point. Comparison display of automation and manual wave. Measurement method: impulse, flash voltage, flash current, direct-flash voltage, direct-flash current, flash and direct flash. Mesuring range: Smax � 40km Smin: No blind area Test error: ±5m Technical data With all the functions of ordinary PC. With site-camera and wireless communication function. Real-time expert instructs at the detection site or wireless fax. Defect wave can be wireless recorded when high-resistance defect happens Movable storage: U-Disk with USB interface Fix storage: Electric hard disk with less power and strong anti-earthquake. Display: 10 inches Industrial LCD Operation: Touch-screen operation Power supply: AC 220V(1±10%)50Hz(1±5%)DC 24V Working temperature: -10°c~50°c Humidity: RH�90% Dimensions:350*250*160mm Weight: 5kg

Dgl-50gy Cable Path Finder application can Separately Exploit the Out-of-service or In-operation Power Cable's Embedded Path composition the Whole Set of Equipment is Made of Singal Resource and Receiver. main Function can Detect the Path of Electrified Cable singal Resource strong Output Power and Anti-interference. Output Resistance is Self-matched and have Open-circuit and Short-circuit Protection Function. output Power: 50w Radiation Frequency: 15khz 33khz output Wave: Discontinuous Sine Wave working Power: Ac 220v(1â±10%) 50hz(1â±5%) working Temperature: -10â°c~50â°c Humidity: Rhâ?¤90% size: 315*260*185mm Weight:5.5kg receiver receiving Frequency: 15khz, 33khz, 50hz working Power:dc 9v(1â±10%) working Environment: Temperature: -10â°c~50â°c Humidity: Rhâ?¤90% size: Ï?80mmã?720mm Weight:1kg
