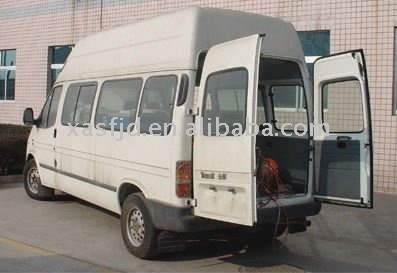

Cable Test Van

Cable Test Van for 35kv and Lower
system Outline Composition
van Type: Transit or Ivecooutline: Balance Weight,Fine Outline for Whole Body,Personalized Operation Platform
features
generator: the Special Slideway for Generator is Equipped At the Rear Left Door for Which is a Open Type Working Condition.there is Caliper At Slideway to Prevent the Slide of Generator
power System:over-current,Over-voltage Protector.hidden Location Helps the Better Power Supply and Safety
the Location of Auxiliary Parts: Rack with Lock for the Convenient Practice
outlet and Caliper: Strands of Wire Rack is Matched with the Outlet At the Rear Right Door,When in Detection all Doors Locked for No Interruption of Normal Work.the Room of Wire Rack and Outlet is Equipped with Caliper-rack to Fix the Position of Hv Detection Wire to Avoid is the Squeeze When Closes the Door.
van Lighting; 220v Light is Added At the Top of Van to Supply Enough Light in the Van.
the Space Application of Main Equipment: the Front of the Slide-door is Designed as a Drawer Type Tool-box and Filling Space for Equipment Cubicle.main Equipment is Put At the Left of Side-door to Make It Look Nice and Give Enough Space for Operation
seats Layout: Singal Seats are Added Behind the Driver Seats for Thr Convenience of Work.
basic Function of System
ac Voltage Withstand Test is Applied to 10kv(and Lower)cable and other Electric Equipment By the Application of Ultra-low Frequency or Converter Harmony.
to Carry Out the Coarse Detection of all Types of Cable Fault By Wave-reflection Principe(impulse,Flashing and Comprehensive Sampling Way)
to Carry Out the fine Position of Various Fault Points By Sound-magnetic Synchronization
to Carry Out the Accurate Detection for Unknown Cable Path and Depth By Electromagnetic Induction Principle
to Acknowledge the Identification Strands of Cable and Pricking
system Composition
imported Generator,Special Operation Platform,Detection Software and Cable Management System.
complete Set of Detection Equipment of Cable Fault: Dgs Series Cable Fault Tester,Dgd Series Cable Fault Locator,Dgl Series Cable Path Finder,Dgsy Series Integration of Detection Equipment of Cable Fault
identification System of Power Cable: Include Cable Identification and Pricker Etc
ac Voltage Withstand Test Equipment: Cdpz Series Ultra-low Frequency (0.1hz) or Xzf Converter Harmony
auxiliary Testing Device and Hv Outlet Leads: E-meter,Measurement Gauge,Phase Instrument,Tool-box and Hv Outlet Leads
