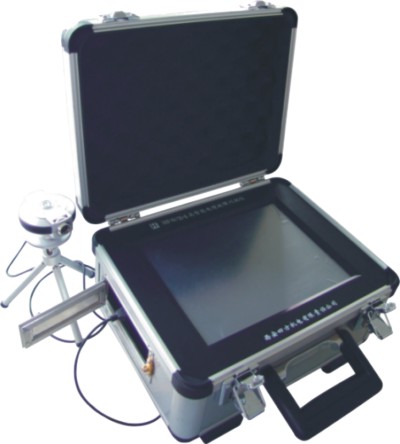

Cable Fault Tester

Power cable fault tester
Quick detect all the faults of 35KV (and lower)cable and wire, display the tap position of cable and calibrate the length of cable.
Main functions:
Measure the distance, speed and resistance.
Continuously auto-sampling and no discharge wave will be neglected.
Auto-judge the discharge of fault point,the process is reminded by english menu.
Test the fault type automatically and indicate the test method
Automatic measurement to find the fault point.
Comparison display of automation and manual wave.
Measurement method: impulse,flash voltage,flash current,direct-flash voltage,direct-flash current,flash and direct flash.
Mesuring range: Smax â?¥ 40km Smin: No blind area
Test error: ±5m
Technical data
With all the functions of ordinary PC.
With site-camera and wireless communication function.
Real-time expert instructs at the detection site or wireless fax.
Defect wave can be wireless recorded when high-resistance defect happens
Movable storage: U-Disk with USB interface
Fix storage: Electric hard disk with less power and strong anti-earthquake.
Display: 10 inches Industrial LCD
Operation: Touch-screen operation
Power supply: AC 220V(1±10%)50Hz(1±5%)DC 24V
Working temperature: -10°c~50°c
Humidity: RHâ?¤90%
Dimensions:350*250*160mm
Weight: 5kg
