Zgtek

China, China

• MOQ 100000 Piece(s)
• ApplicationFor filter bag
• Made with Zgtek Ring machineAutomatic
• Brand NameZgtek
• Number Of FlowerFilter ring
• Model NumberABM-200-1
• Country of OriginChina

• MOQ 1 Piece(s)
• Zgtek Ring MachineAutomatic Economic Version

We are offering ring making machine. Specification model: r-6-300 e-series input voltage: 380v(3-phase) or custom power frequency: 5060hz instant power during welding: 15kva(for 4mm wire) instant power during forming: 2kva wire thickness: 2.8-5mm max ring diameter: 300mm min ring diameter: 70mm ring diameter tolerance: 0.16mm cooling: natural cooling air flow required: 250lmin air pressure: 0.6-0.8mpa throughput: about 1560pcshr(for ring diameter 150mm) weight: 1000kg features r-6-300 e-series is not equipped with digital regulation of ring sizes, the ranges of ring thickness and ring size are also less than r-6-300. 1. High precision: intelligent "s" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines. 2.high stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts which would get less precise due to wear-out. 3.easy operation: ring size is adjusted by turning the wheels, much easier than traditional mechanical or hydraulic machines. 4. Automatic ring welding: worker attendance is not required during machine operation. 5. Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel.

• MOQ 1 Piece(s)
• Zgtek filter cageFilter cage machine DLN series

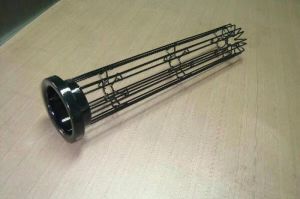

Spider filter cage zgtek for filter bag dust collectorbag filterbaghouse spider filter cage zgtek made with zgtek cage welding machine.

• MOQ 1 Piece(s)
• Brand NameZGTEK
• Cage outer diameter: 100-200mmTransformers: 2sets
• Power capacity80KVA
• Availabilityabout 1200KG

• MOQ 1 Piece(s)
• Zgtek Ring MachineAutomatic

Specification model: abm-200-1 snap band diameter: 100-200mm snap band width: 19, 20, 25, 30, 35, 40mm, other sizes can be customized rivets spec: 3mm, half hollow speed: 8s per piece voltage: 220v 5060hz, or customized power: 2.5kva compressed air consumption: 300lmin air pressure: 0.6-0.8mpa features 1. High speed 2. High stability 3. Easy operation with touch screen

• MOQ 1 Piece(s)
• Brand NameZgtek
• ApplicationFor wire mesh welding
• Wire Diameter5-12mm
• Availability~16T
• ZgtekAutomatic
• Number Of FlowerWire mesh welding
• Country of Origin380V, 50/60Hz or cusmized
• After-Sales Service Providedall the time
• Model NumberGWC-3300

Specification model: gwc-3300 wire diameter: 5-12mm max mesh width: 3300mm max mesh length: no limit grid size: 50-400mm adjustable line wire spacing: 100-400mm (multiple of 50) cross wire spacing: 50-300mm, step-less adjustable max welding capacity: 12+12mm max welding speed: ~60 rowmin max welding spots: 32 wire feeding method(cross wireline wire): pre-cutoff-coil material: carbon steel, stainless steel, galvanized steel voltage: 380v, 5060hz power capacity: 1600kva (can be reduced by batch welding) compressed air: 3 m³min air pressure: 0.8mpa cooling: water cooling dimensions(lwh): ~30*6*2.5m weight: ~16t features 1. High speed 2. High stability based on years of experience in resistance welding 3. Easy operation with touch screen 4. Compatible welding: capable of welding cold rolled ribbed wire, cold drawn wire, hot rolled ribbed wire (after straightened), hot rolled plain wire, stainless steel wire, galvanized wire, etc.

• MOQ 1 Piece(s)
• BrandZGTEK
• Cooling: Natural coolingThroughput: about 1560pcs/hr(for ring diameter 150mm)
• Max ring diameter:300mm
• Weight:1200KG
• Wire thickness:2.8mm-6mm

• MOQ 1 Piece(s)
• Zgtek Cage MachineRed

Specification model: dln-24-5 cage wire quantity: 81012141618202224 ring space: can be set at any value cage outer diameter: 100-200mm rail length: standard 7m, up to 10m can be customized input voltage: 380v(2-phase) or customized power frequency: 5060hz designed max capacity of transformers: 80kva instant power in sync mode: 36kva instant power in async(time-sharing) mode: 18kva transformers: 2sets air pressure: 0.6-0.8mpa required ir flow: 300lmin cooling method: natural cooling weight: about 1000kg features very high welding speed, e.g. For a 12-wire cage, one ring takes only 0.18s automatic cage pulling, ring space can be set in the program through the user-friendly interface. The cage pulling carriage is equipped with bearings, runs on the rail with linear guides, it's smooth and precise function of bad weld detection and auto re-welding material selection, different welding parameters for mild steel, galvanized steel and stainless steel auto compensation gives enough space to insert the ring when the ring distance is short ring space precision is 0.1mm; cage pulling speed is 0.4ms rails and material shelf equipped and connected to the machine. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages four air tanks, short air route inside the machine ensures quick response of the cylinders 25mm thick front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s equipped with powerful micro-computing unit synctime-sharing mode can put two transformers work at the same time or one after another, secure good welding quality even when the power supply is not very sufficient

We are offering ring making and welding machine. Model: r-6-300 input voltage: 380v(3-phase) or customized power freq.: 5060hz rated power: 18kva cooling: natural cooling air flow: 250lmin air pressure: 0.6-0.8mpa wire thickness: 2.8mm-6mm max ring diameter: 300mm min ring diameter: a. 88mm (wire thickness less than 4mm) b. 90mm (wire thickness between 4 mm and 5mm) c. 105mm (wire thickness between 5mm and 6mm) throughput: about 1200pcshour(for ring diameter 150mm) ring diameter tolerance: less than 0.16mm weight: 1200kg features: 2nd generation ring making and welding machine r-6-300 two years ago, the release of ring making and welding integrated machine had been the first of its kind in china; now, the 2nd generation machine is even more powerful: 1. High precision: intelligent "s" shape speed curve, the encoder and the servo motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines. 2. Advanced and reliable wire feeding: the feeding unit includes a high-end servo motor and a planetary reducer, works on the basis of "dual-drive". 3. Automatic ring making: sizes can be adjusted automatically, worker attendance is not required during machine running 4. Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel; if equipped with a tig unit, it can also weld stainless steel and titanium rings. 5. Easy operation and maintenance: user-friendly interface on touch screen, easy to adjust, operate and diagnose the machine.

We are offering ring making machine. Specification model: r-6-300 e-series input voltage: 380v(3-phase) or custom power frequency: 5060hz instant power during welding: 15kva(for 4mm wire) instant power during forming: 2kva wire thickness: 2.8-5mm max ring diameter: 300mm min ring diameter: 70mm ring diameter tolerance: 0.16mm cooling: natural cooling air flow required: 250lmin air pressure: 0.6-0.8mpa throughput: about 1560pcshr(for ring diameter 150mm) weight: 1000kg features r-6-300 e-series is not equipped with digital regulation of ring sizes, the ranges of ring thickness and ring size are also less than r-6-300. 1. High precision: intelligent "s" shape speed curve, the encoder and the motor form a closed-loop wire feeding control system, secure a diameter tolerance less than 0.16mm, eventually solve the ring precision issues inherent in the traditional mechanical or hydraulic ring making machines. 2.high stability: wire feeding unit is driven by two motors directly without gears, belts or other transmission parts which would get less precise due to wear-out. 3.easy operation: ring size is adjusted by turning the wheels, much easier than traditional mechanical or hydraulic machines. 4. Automatic ring welding: worker attendance is not required during machine operation. 5. Compatible welding: capable of welding low, medium and high carbon steel, spring steel, galvanized steel.

Specification Model: ABM-200-1 Snap band diameter: 100-200mm Snap band width: 19, 20, 25, 30, 35, 40mm, other sizes can be customized Rivets spec: 3mm, half hollow Speed: 8s per piece Voltage: 220V 5060Hz, or customized Power: 2.5KVA Compressed air consumption: 300Lmin Air pressure: 0.6-0.8MPa Features 1. High speed 2. High stability 3. Easy operation with touch screen
