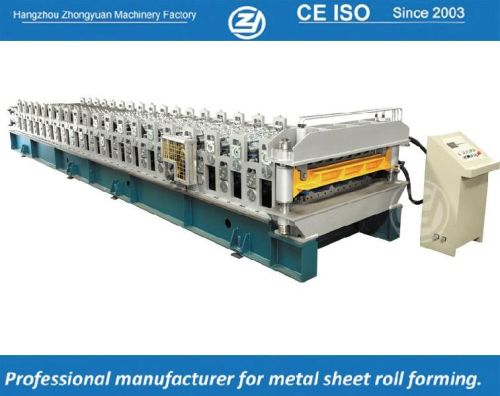

Double Layer Roll Forming Machine, Brand Name : Zhongyuan

Double layer roll forming machine
machine's feature:
one machine can make two kinds of profile. Client’s profile available.
Technical data of double layer roll forming machine
suitable material q235 color steel sheet;0.3-0.7mm,
forming speed about 20-25mmin
power requirement main motor power: 7.5 kw(depend on final design)
hydraulic station power: 2.2kw(depend on final design)
material of forming rollers no.45 steel, plated with chrome on sureface.
Material of cutter  cr12 mould steel with quench treatment, hrc58-60
material of shaft high quality 45# steel with heat treatment.roller grinder milling.
Shaft diameter 72mm
controlling system mitsubishi plc & converter
total weight of machine about 13000kgs
machine’s size about 11.5m×1.8m× 1.5m (depend on final design)
shipping 1x40gp container can load one machine
bearings inside rollers:
bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.
Our range of products metal roll forming machine, sandwich panel production line, metal sheet forming machines, metal roll forming machine, eps sandwich panel production machine, line forming machine, step tile forming machines etc. We can better control the machine quality and delivery time of machines.
