Welcome to Zhejiang Mingyuan Machinery Co.,Ltd
Manufacturer / Exporter Of Paper Cup Machine, Paper Cup Forming Machine, Paper Plate Machine, Paper Bowl Machine, Die Cutting Machine, Forming Machine
Welcome to Zhejiang Mingyuan Machinery Co.,Ltd
Manufacturer / Exporter Of Paper Cup Machine, Paper Cup Forming Machine, Paper Plate Machine, Paper Bowl Machine, Die Cutting Machine, Forming Machine

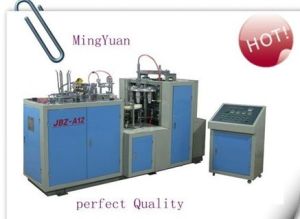

We are offering paper cup machine. briefing introduction: jbz-a paper cup forming machine is an automatic machine with multi-working station. It produces one-side film-coated paper cup through the procedure of automatic paper feeding, sealing, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. This kind of cup can be for tea, coffee, milk , ice-cream etc. main technical parameters technical specification model jbz-a04 jbz-a12 jbz-a16 jbz-a22 jbz-a36 cup size 2, 3, 4, 5, 6 oz (for ice-cream) 6, 8, 9, 12 oz 12-16oz 16-22oz 22-36oz raw material one side pe coated paper capacity 40-50pcs/min 40-45pcs/min 30-40pcs/min 30-35pcs/min 30pcs/min power source 380v 50hz(it can be changed if customer require) total power 4.5kw 5kw 6kw 11kw 11kw weight 1600kg package size 2800*1320*1800mm 2800*1320*1800mm 3000*1320*1950mm 3300*1450*2050mm 3550*1450*2150mm (l*w*h) 730*600*1100mm 730*600*1100mm 730*600*1100mm 800*750*1300mm 850

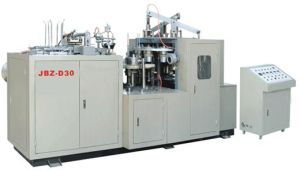

We are offering paper bowl machine.detailed information: jbz-d30 automatic single pe paper bowl forming machine is fully absorbed in the korean new paper bowl machine based on the domestic situation and development, via the automatic paper feeding ( printed fan disk ), two preheating, sealing ( bowl ), oil ( lubricating scroll export ), red ( from the bottom reel paper automatic punch bowl ), two bottom heating, rolling flower ( bowl bottom sealing ), roll ( roll, roll top ) injection line, unloading bowl collection, continuous process, and has a photoelectric detection, fault alarm, counting and other functions, is the production of paper, paper bowl, bowl of instant noodles. Bowls and other large capacity of large diameter bowl is the ideal equipment. jbz-d30paper bowl machine is mainly used for the production of" single pe film" paper bowl. This machine is simple in operation (of a person ), stable performance, less land occupation, high efficiency, is the first venture investment project. jbz-d30disposable paper bowl machine main technical parameters: bowl specification:20--50 oz and other specifications ( die replacement); paper raw materials:170---320g/ square metres of a coated paper ( single-sided pe paper ); production speed:35--45/ min; power requirements:380v50hz; total power:8 kw; machine weight:2000 kg; dimensions: ( length x width x height)3300 x1450 x1800 mm; electrical control box:760 x600 x1300 mm paper bowl: production cost by paper bowl, paper size used by the weight and the printing color number decision, general cost in 6 -20 points. other notes: we can be customized according to customer requirements and production of various specifications of paper bowl machine, paper bowl mold.

We are offering paper cup forming machine. Briefing introduction: jbz-s paper cup forming machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonicwelding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side pe coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc. main technical parameters technical specification model jbz-s04 jbz-s12 jbz-16 jbz-s22 jbz-s36 cup size 2, 3, 4, 5, 6.oz 6, 8, 12 oz 12-16 oz 16-22 oz 22-36 oz raw material two side pe coated paper capacity 40-50pcs/min 40-45pcs/min 35-40pcs/min 30-35pcs/min 22-36pcs/min power source 380v 50hz(it can be changed if customer require) total power 10kw 11kw 12.5kw 12.5kw 12.5kw weight 1600kg 2200kg 2200kg package size 2800*1350*1800mm 2800*1350*1800mm 3050*1350*1950mm 3250*1450*2050mm 3550*1450*2150mm (l*w*h) 800*750*1300mm 800*750*1300mm 800*750*1300mm 800*750*1400mm 900*750*1400mm air source 0.18m3/min;0.6mpa customer-owned

We are offering die cutting machine.detailed information: use: creasing and cutting machine is pressing cutting all kinds of ordinary cardboard, corrugated cardboard, plastic, leather and special equipment, suitable for printing, packaging and decoration, plastic industries by. main structural features: 1 body using high quality materials for integral casting of high strength. 2monolithic electromagnetic clutch is sensitive and reliable. 3operation height of reasonable arrangement the pressing frame of large opening angle. the 4 electrical system according to iec standard design. 5continuous cutting, open delay two functions. 6reliable safety protection system. 7 centralized lubrication system.

We are offering forming machine jdgt cake tray forming machine use machine hand to clip paper, feeding paper, separate paper, punching, discharge etc. This model can make different size of cake tray through changing mould. Simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running. main technical parameters model jdgt paper size 55-130mm raw material oil-protect paper 30-40gsm capacity 15-20pcs/time 20-40times/min. power source 380v / 50hz ( it can be changed if customer require) total power 2.5kw(motor:1.5kw, heating:1kw) air source working pressure 0.6mpa customer-owned air volume 0.3m3/min weight 500kg package size 1500*1300*1400mm

We are offering paper plate machine.briefing introduction: zdj-300k hih speed automatic paper plate forming machine is developed and desigend as the requirement of market. I t is pneumatic type automatic paper dish forming machine with owned unique illtellectual property right , which has funtions as automatic paper feeding , forming , dish ejecting , temperature constant controlling , automatic counting , fast working speed, safe operation and easy maintenance, etc. main technical parameters model zdj-300k diameter of paper disb 4-9 inch capacity 40-60pieces/minute(once working station) power source 220v 50hz total power 2kw weight 500kg dimension(l*w*h) 1480*1150*2050mm air source working pressure0.6mpa customer-owned working air volume 1m3/min
