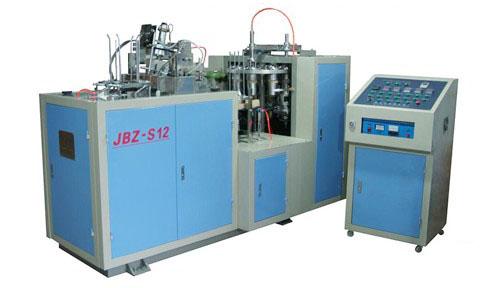

Paper Cup Forming Machine

We are offering paper cup forming machine.
Briefing introduction:
jbz-s paper cup forming machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup through the procedure of automatic paper feeding, ultrasonicwelding, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side pe coated paper with full printing design cups. This cup can for both hot and cold drinking, such as soft drinking, ice-cream and coffee etc.
main technical parameters
technical specification
model
jbz-s04
jbz-s12
jbz-16
jbz-s22
jbz-s36
cup size
2,3,4,5,6.oz
6,8,12 oz
12-16 oz
16-22 oz
22-36 oz
raw material
two side pe coated paper
capacity
40-50pcs/min
40-45pcs/min
35-40pcs/min
30-35pcs/min
22-36pcs/min
power source
380v 50hz(it can be changed if customer require)
total power
10kw
11kw
12.5kw
12.5kw
12.5kw
weight
1600kg
2200kg
2200kg
package size
2800*1350*1800mm
2800*1350*1800mm
3050*1350*1950mm
3250*1450*2050mm
3550*1450*2150mm
(l*w*h)
800*750*1300mm
800*750*1300mm
800*750*1300mm
800*750*1400mm
900*750*1400mm
air source
0.18m3/min;0.6mpa customer-owned
