Paper Cup Machine

We are offering paper cup machine.
briefing introduction:

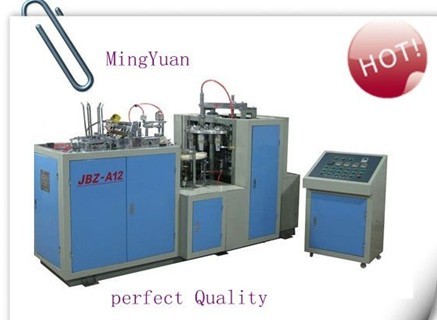

jbz-a paper cup forming machine is an automatic machine with multi-working station. It produces one-side film-coated paper cup through the procedure of automatic paper feeding, sealing, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. This kind of cup can be for tea, coffee, milk , ice-cream etc.
main technical parameters
technical specification
model jbz-a04 jbz-a12 jbz-a16 jbz-a22 jbz-a36
cup size 2,3,4,5,6 oz (for ice-cream) 6,8,9,12 oz 12-16oz 16-22oz 22-36oz
raw material one side pe coated paper
capacity 40-50pcs/min 40-45pcs/min 30-40pcs/min 30-35pcs/min 30pcs/min
power source 380v 50hz(it can be changed if customer require)
total power 4.5kw 5kw 6kw 11kw 11kw
weight 1600kg
package size 2800*1320*1800mm 2800*1320*1800mm 3000*1320*1950mm 3300*1450*2050mm 3550*1450*2150mm
(l*w*h) 730*600*1100mm 730*600*1100mm 730*600*1100mm 800*750*1300mm 850
