Lab Press & Pellet Pressing Die Set

Leading Manufacturer, Supplier & Retailer of 3-6mm Pellet Pressing Die Set and Hydraulic Press Machine Lab Model.

3-6mm Pellet Pressing Die Set

₹ 9,050 - ₹ 16,290 / set Get Latest Price

Size 3mm /4mm/5mm/6mm

Sample shapeDie materialHigh-speed tool steel from Japan ASSAB+17 Indenter hardness HRC68-HRC70 Sample size 3mm/ 4mm /5mm/6mm Cavity depth 20mm (N) Dimensions 4378mm (LH) Weight 0.55kg Diagram of press die Note:Customized size is available, we can design the size according to your need.

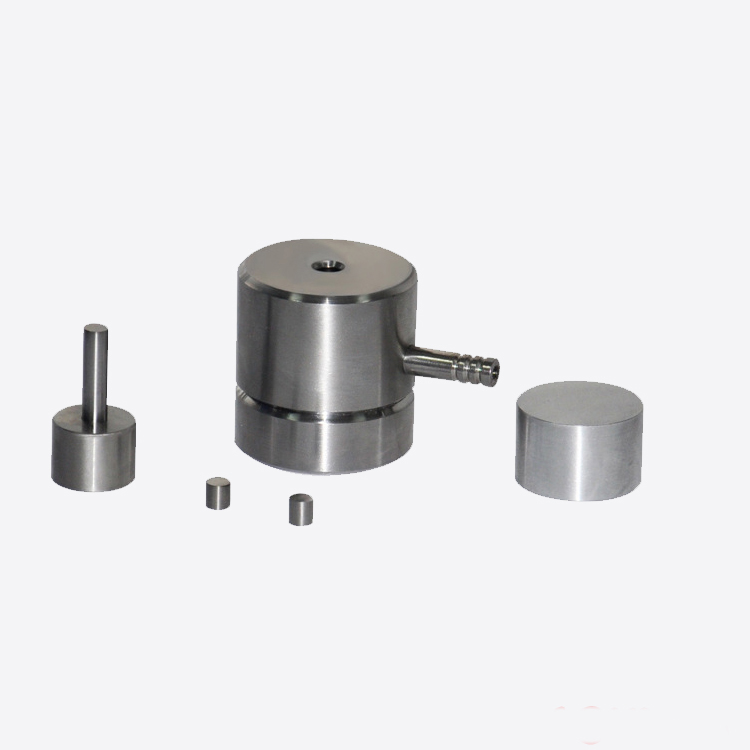

3-6mm Dry Powder Pellet Pressing Die Set

Sample shape
Die material	High-speed tool steel from Japan ASSAB+17
Indenter hardness	HRC68-HRC70
Sample size	φ3mm/ φ4mm /φ5mm/φ6mm
Cavity depth	20mm (N)
Dimensions	Φ43×78mm (L×H)
Weight	0.55kg
Diagram of press die

Note:Customized size is available, we can design the size according to your need.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Hydraulic Press Machine Lab Model

Min. Order (MOQ) 1 Set(s)
Brand Name TCH
Condition NEW
Automatic Grade MANUAL
After-Sales Service Provided YES
Country of Origin CHINA
Model Number TCH-CP-15
product press machine

15t manual table top hydraulic press model tch-cp-15pressure range 0 - 15t (0 -30 mpa)piston diameter 80 mm (chrome plated cylinders)special requirement protective safety shield integrated structure the sealing connection of the main-board, oil pool, and the piston.Pressure gauge digital displaymax. Piston travel distance 30mm working bench diameter 95 mm pressure stability 1mpa10minworking space 80 80 130mmoutside dimension 260 190 430mmnet weight 45 kg

Additional Information:

Payment Terms : L/C, T/T

Packaging Details : wooden case

Delivery Time : within 1 week

15T Hydrualic Manual Powder Pellet Press Machine

Model	TCH-PM-15S
Pressure range	0 -15T (0 - 30 MPa)
Pressure gauge	Digital display with range of 0.00 – 40.00 MPa. Note: the digital pressure gauge is optional, please order with extra USD 100
Protection Cover (optional)	Polycarbonate Safety Shield is used with the press to protect the user from fragmentation.
Diameter of piston	90 mm(D)
Max. Travel distance of the piston	30 mm (T)
Pressure stability	≤1 MPa / 10 min
Diameter of the working station	90mm (D)
Supporting size	80130 mm (MN)
Dimensions	260175390mm ( LWH)
Net weight	40Kg
Marks
Warranty	1 Year
Certificate	CE

Contact mobile/whatsapp: 008613526477203

Contact email: tchinstrumenttch@163.com

Download Detail File : Click Here

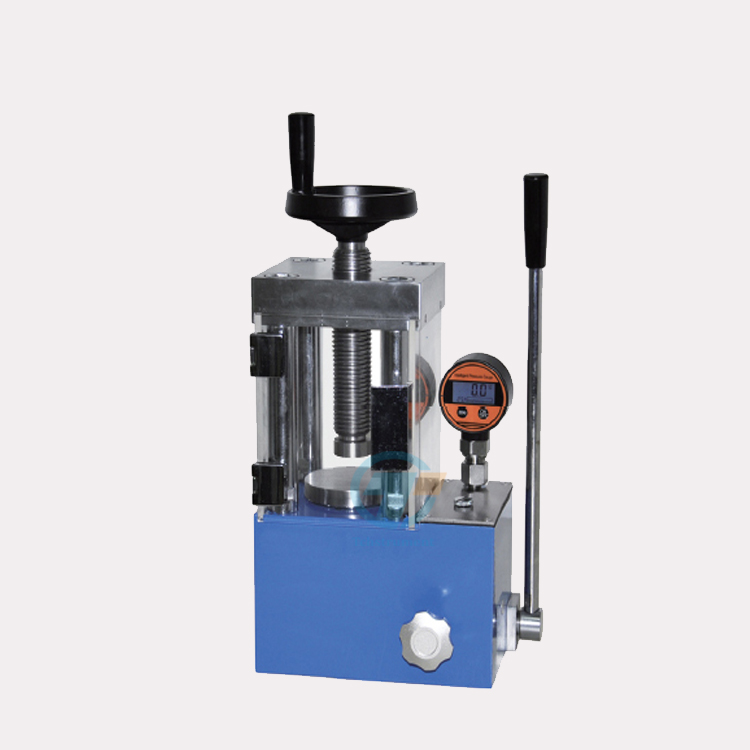

15T Hydrualic Manual Powder Pellet Press Machine With Safety Cover

Model	TCH-PM-15S
Pressure range	0 -15T (0 - 30 MPa)
Pressure gauge	Digital display with range of 0.00 – 40.00 MPa. Note: the digital pressure gauge is optional, please order with extra USD 100
Protection Cover (optional)	Polycarbonate Safety Shield is used with the press to protect the user from fragmentation.
Diameter of piston	90 mm(D)
Max. Travel distance of the piston	30 mm (T)
Pressure stability	≤1 MPa / 10 min
Diameter of the working station	90mm (D)
Supporting size	80130 mm (MN)
Dimensions	260175390mm ( LWH)
Net weight	40Kg
Marks
Warranty	1 Year
Certificate	CE
