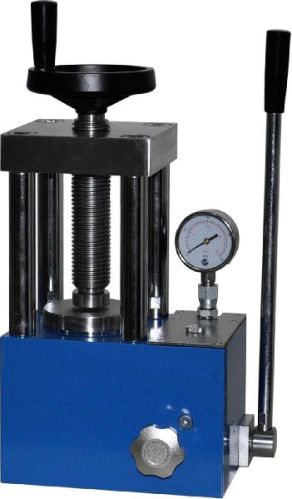

15t manual table top hydraulic press
model tch-cp-15
pressure range 0 - 15t (0 -30 mpa)
piston diameter 80 mm (chrome plated cylinders)
special requirement protective safety shield
integrated structure the sealing connection of the main-board, oil pool, and the piston.
Pressure gauge digital display
max. Piston travel distance 30mm
working bench diameter 95 mm
pressure stability 1mpa10min
working space 80 80 130mm
outside dimension 260 190 430mm
net weight 45 kg
Model | TCH-PM-15S |
Pressure range | 0 -15T (0 - 30 MPa) |
Pressure gauge | Digital display with range of 0.00 – 40.00 MPa. Note: the digital pressure gauge is optional, please order with extra USD 100 |
Protection Cover (optional) | Polycarbonate Safety Shield is used with the press to protect the user from fragmentation. |
Diameter of piston | 90 mm(D) |
Max. Travel distance of the piston | 30 mm (T) |
Pressure stability | ≤1 MPa / 10 min |
Diameter of the working station | 90mm (D) |
Supporting size | 80*130 mm (M*N) |
Dimensions | 260*175*390mm ( L*W*H) |
Net weight | 40Kg |
Marks |
|
Warranty | 1 Year |
Certificate | CE |
Contact mobile/whatsapp: 008613526477203
Contact email: tchinstrumenttch@163.com
Model | TCH-PM-15S |
Pressure range | 0 -15T (0 - 30 MPa) |
Pressure gauge | Digital display with range of 0.00 – 40.00 MPa. Note: the digital pressure gauge is optional, please order with extra USD 100 |
Protection Cover (optional) | Polycarbonate Safety Shield is used with the press to protect the user from fragmentation. |
Diameter of piston | 90 mm(D) |
Max. Travel distance of the piston | 30 mm (T) |
Pressure stability | ≤1 MPa / 10 min |
Diameter of the working station | 90mm (D) |
Supporting size | 80*130 mm (M*N) |
Dimensions | 260*175*390mm ( L*W*H) |
Net weight | 40Kg |
Marks |
|
Warranty | 1 Year |
Certificate | CE |
