Zhongshan Xingcheng thermostat Co. Ltd.

guangdongzhongshan, China

We are offering ksd301 temperature control switch name: temperature control switch model: ksd301 1, electrical parameters: 1) cqc, vde, ul, cul? ac250v 50~60hz 5a 10a 15a (resistive load) 2) ul ac 125v 50hz 15a (resistive load) 2, the operating temperature range: 0~240 degrees (ren xuan), the precision of temperature: + 2 + 3 + 5 + 10 c 3, reply and action temperature: 8~100 degrees (ren xuan) 4, plug connection: terminal 250# (curved 0~90 deg 187# (optional); inserting terminal bending 0~90 degrees optional, thickness 0.5 0.8mm optional) 5, the service life is more than 100000 times: 6, the electrical strength: ac 50hz 1800v for 1min, no flicker, no breakdown 7, contact resistance is less than or equal to 50m. 8, insulation resistance: less than 100m. 9, contact form: normally closed: the temperature rise, the contacts are broken, the temperature drop of contact; open type: increasing temperature, contact, temperature drop off contact 10, shell protection grade: ip00 11, grounding mode: connected grounded metal parts by metal shell and thermostat device. 12, installation: direct use of nut reinforcement can. 13, the temperature range: -25 to +240 deg +1 deg c to 2 c

We are offering ksd301 temperature control switch name: temperature control switch model: ksd301 1, electrical parameters: 1) cqc, vde, ul, cul? ac250v 50~60hz 5a 10a 15a (resistive load) 2) ul ac 125v 50hz 15a (resistive load) 2, the operating temperature range: 0~240 degrees (ren xuan), the precision of temperature: + 2 + 3 + 5 + 10 c 3, reply and action temperature: 8~100 degrees (ren xuan) 4, plug connection: terminal 250# (curved 0~90 deg 187# (optional); inserting terminal bending 0~90 degrees optional, thickness 0.5 0.8mm optional) 5, the service life is more than 100000 times: 6, the electrical strength: ac 50hz 1800v for 1min, no flicker, no breakdown 7, contact resistance is less than or equal to 50m. 8, insulation resistance: less than 100m. 9, contact form: normally closed: the temperature rise, the contacts are broken, the temperature drop of contact; open type: increasing temperature, contact, temperature drop off contact 10, shell protection grade: ip00 11, grounding mode: connected grounded metal parts by metal shell and thermostat device. 12, installation: direct use of nut reinforcement can. 13, the temperature range: -25 to +240 deg +1 deg c to 2 c

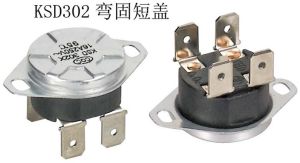

We are offering ksd302high power thermostat series product a with double metal sheets for the sense of temperature controller of temperature components, electrical work, double metal sheet in the free state. Contact is closed disconnected state, when the temperature reaches the action temperature, bimetallic strip is heated to generate internal stress and rapid action, open close contact, cut connect circuit, thus to temperature control function. When the appliance is cooled to reset temperature, contact automatically closed open, return to normal working condition. Are widely used in: drinking water machine, water heater, sandwich toaster, dish washer, dryer, disinfection cabinet, microwave oven, electric coffee pot, electric cooker, refrigerator, air conditioner, glue machine, office equipment, car seat heaters and other electric appliances. Operation parameters: 1, electrical parameters: cqc 10a 16a 20a (resistive load) 2, the operating temperature range: 50~150 degrees, temperature accuracy: + 2 + 3 + 5 + 10 c 3, reply and action temperature: 8~100 degrees (ren xuan) 4, plug connection: terminal 250# (curved 0~90 deg 187# (optional); inserting terminal bending 0~90 degrees optional, thickness 0.5 0.8mm optional) 5, the service life is more than 60000 times: automatic reset; manual reset is more than 6000 times 6, the electrical strength: ac 50hz 1800v for 1min, no flicker, no breakdown 7, contact resistance is less than or equal to 50m. 8, insulation resistance: less than 100m. 9, contact form: normally closed: the temperature rise, the contacts are broken, the temperature drop of contact; open type: increasing temperature, contact, temperature drop off contact 10, shell protection grade: ip00 11, grounding mode: connected grounded metal parts by metal shell and thermostat device.

• CertificationCQC
• Packaging Type黑色
• Brand NameJHD
• ApplicationTemperature control and thermal protection
• Country of Originchina guangdong
• Model NumberC-007
• Number Of FlowerLarge current thermostat
