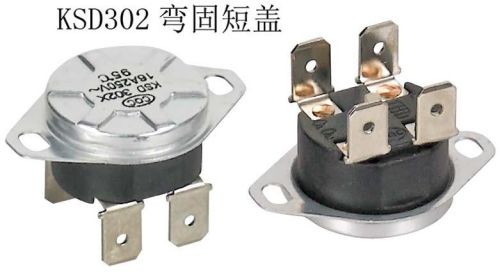

Ksd302high Power Thermostat

We are offering ksd302high power thermostat series product a with double metal sheets for the sense of temperature controller of temperature components, electrical work, double metal sheet in the free state. Contact is closed disconnected state, when the temperature reaches the action temperature, bimetallic strip is heated to generate internal stress and rapid action, open close contact, cut connect circuit, thus to temperature control function. When the appliance is cooled to reset temperature, contact automatically closed open, return to normal working condition.
Are widely used in: drinking water machine, water heater, sandwich toaster, dish washer, dryer, disinfection cabinet, microwave oven, electric coffee pot, electric cooker, refrigerator, air conditioner, glue machine, office equipment, car seat heaters and other electric appliances. Operation parameters:
1, electrical parameters: cqc 10a 16a 20a (resistive load)
2, the operating temperature range: 50~150 degrees, temperature accuracy: + 2 + 3 + 5 + 10 c
3, reply and action temperature: 8~100 degrees (ren xuan)
4, plug connection: terminal 250# (curved 0~90 deg 187# (optional); inserting terminal bending 0~90 degrees optional, thickness 0.5 0.8mm optional)
5, the service life is more than 60000 times: automatic reset; manual reset is more than 6000 times
6, the electrical strength: ac 50hz 1800v for 1min, no flicker, no breakdown
7, contact resistance is less than or equal to 50m.
8, insulation resistance: less than 100m.
9, contact form: normally closed: the temperature rise, the contacts are broken, the temperature drop of contact;
open type: increasing temperature, contact, temperature drop off contact
10, shell protection grade: ip00
11, grounding mode: connected grounded metal parts by metal shell and thermostat device.
