Contact SupplierWe are offering ksd301 temperature control switch

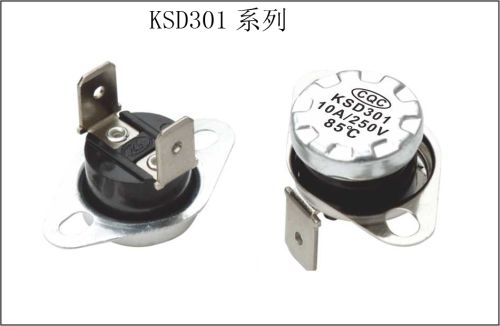

name: temperature control switch
model: ksd301
1, electrical parameters: 1) cqc, vde, ul, cul? ac250v 50~60hz 5a 10a 15a (resistive load)
2) ul ac 125v 50hz 15a (resistive load)
2, the operating temperature range: 0~240 degrees (ren xuan), the precision of temperature: + 2 + 3 + 5 + 10 c
3, reply and action temperature: 8~100 degrees (ren xuan)
4, plug connection: terminal 250# (curved 0~90 deg 187# (optional); inserting terminal bending 0~90 degrees optional, thickness 0.5 0.8mm optional)
5, the service life is more than 100000 times:
6, the electrical strength: ac 50hz 1800v for 1min, no flicker, no breakdown
7, contact resistance is less than or equal to 50m.
8, insulation resistance: less than 100m.
9, contact form: normally closed: the temperature rise, the contacts are broken, the temperature drop of contact;
open type: increasing temperature, contact, temperature drop off contact
10, shell protection grade: ip00
11, grounding mode: connected grounded metal parts by metal shell and thermostat device.
12, installation: direct use of nut reinforcement can.
13, the temperature range: -25 to +240 deg +1 deg c to 2 c
