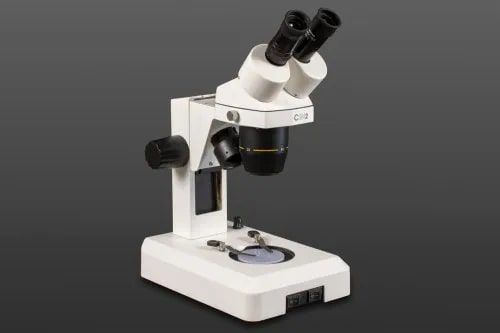

1 Products availableLeading Manufacturer, Supplier & Retailer of D1 Gemological Microscope, Cognep Gemological Microscope, Portable Gemological Microscope, Zeiss Gemological Microscope and Rotatable Gemological Microscope.
Specifications
| Portable | Yes |
|---|---|
| Working Distance | 100mm |
| Coating Type | Durable Powdercoat |
| Body Material | Metal And Plastic |
| Barlow Lens | 0.5X |
| Objective Zoom Range | 0.35X-4.5X, using the Barlow lens |
| Vision | 61 D |
| Magnification | 6X-45X Zoom |
| Light Source | 64-LED ring light with dimmer |
| Head | 360 degree rotatable 45 degree inclined binocular |
| Widefield Of View | 22mm |
| Eyepieces | 30mm super widefield high-eyepoint WH10X/20MM |
| Diopter Adjustment | +/-5 dp |
| Field of View | 2-1/2" (65mm) |
| Round Plate | 3-3/4" (95mm) in diameter |
| Interpupillary Distance | 2-3/16" - 2-15/16"(55-75mm) |
Details
Specifications
| Diopter Adjustment | Dual |
|---|---|
| Optical Design | Greenough Converged |
| Head Rotation | 360 Degrees |
| Eyepiece Style | SWF Super Widefield (FN 20mm) |
| Body Material | Mixed Metal/Plastic |
| Illumination Style | Transmitted, Incident, Brightfield/Darkfield |
| Head Type | Binocular |
| Ocular Angle | 45 Degree |
| Zoom Control Type | Smooth Continuous |
| Interpupillary Adjustment | Arc (Seidentopf) |
| MAP Copy | MAP - Motic |
| Illumination Type | LED |
| Max Working Distance (standard) | 113mm |
| Magnification Type | Zoom |
| Minimum Objective (X) | 10X |
| Maximum Objective | 67 |
| Focus Controls | Coarse |
| Power Supply | 110V/240V |
Specifications
| Magnification | 10x |
|---|---|
| Brand | cognep |

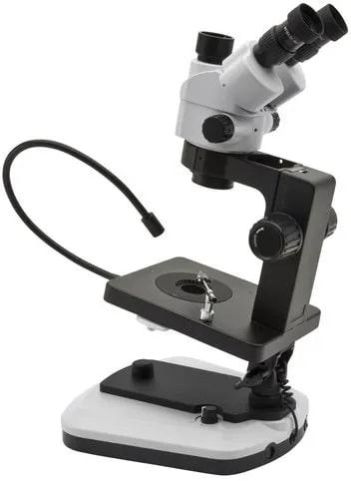

| Model Name/Number | OPTIGEM-1 |
| Head Dimension | 230 x 140 x 150 mm |
| Tilting mechanism | Yes, full 90 Degree tilt angle and 360 Degree rotating |
| Working distance | 100 mm |
| Diameter of micrometer glass | 23 mm |
| Input voltage | 100/240 VAC, 50/60 Hz |
| Microscope connector | Jack, 2.1 mm |
| Max. required power | 3 W |
| Standard magnifications | 7x-45x |
| Optical system | Greenough |
| Field number | 21 mm |
| Maximum sample height | 90 |
| Illuminance | 20,000 Lux |
| Power plug type | Multi-plug (EU, UK, US) |
| Tube inner diameter | 30 mm |
| Output voltage | 12 VDC 1.5 A |
| Coarse total travel | 114 mm |
| Interpupillary distance | 51-75 mm |
| Type | Binocular |
| Darkfield illuminator | Yes, side-emitting LEDs |
| Zoom type | Achromatic |
| Construction material | Aluminum & Plastic molds / Aluminum gears |
| Lifetime | > 65,000 Hour |
| Head holder internal diameter | 76 mm |
| Inclination | 45 Degree |
| Zoom ratio | 6.43 |
| Temperature | 6,300 K |
