Industrial Valves

Our product range contains a wide range of Brass Gate Valve, Pressure Reducing Valve, Cast Iron Butterfly Valves, Electric Knife Gate Valve and Ductile Iron Butterfly Valves

Brass Gate Valve

  • Size 1/4" TO 3"
  • BODY BRASS
  • TRIM BRASS
  • CONNECTION BS21 PARALLEL
View Complete Details

Pressure Reducing Valve

  • Body ASTM A351 Gr.CF8/CF8M/CF3M
  • Seat Buna-N (Water) / PTFE (Steam)
  • Diaphragm Buna-N (Water) / PTFE (Steam)
  • 'O' Ring Buna-N
  • Spring Stainless Steel
  • Adjusting stem SS 304
  • End Screwed/ Flnged
  • Pressure Temperature 80° (For water) 200° (for Steam)
  • Working Pressure 21KG/cm2 in
  • Prssure Adjusting Range 1-6 kg/cm2, 4-10 kg/cm2 (High Range On Request)

"Concorde Valves" offers investment casting stainless steel materialPressure Reducing Valvefor air, water, oil, gas, chemical, & steam.

View Complete Details

Cast Iron Butterfly Valves

  • End Connection Wafer Sandwiched(Lug Type On Request)
  • Pressure Rating PN 10 / PN 16(On Request)
  • Body I.C./ CI(IS 210 Gr.FG 200/ 220)WCB/ S.S.304/ S.S.316
  • Disc CF8/ CF8M/ CF3M/ S.G. Iron/ Teflon Coated /Powder Coated Nylon Coated/Rubber Line
  • Seat EPDM/ Nitrile/ Hayplon/ Viton/ Moulded or Replaceable muffler type
  • Shaft AISI 410/ CF8/ CF8M/ CF3M
  • Valve Type: Centric Disc Butterfly Valve with a single piece rubber lined body
  • Body Type Short wafer (sandwiched between flanges)
  • Seat type Integrally Moulded with the body
  • Oper.Temp.range -25℃ to 130℃(depending on MOC)
  • Seat Leakage Tight shut off
  • Operation Hand lever for sizes from 40MM to 350MM , Worm gear boxes for 40 MM to 1000MM

CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.

View Complete Details

Electric Knife Gate Valve

  • Number Of Flower OS & Y TYPE
  • End Connection Wafer / Lugged / Flanged
  • Size Range 50 NB through 900 NB
  • Pressure Rating MSS SP 81- 150# / PN16
  • Operation Electrical Actuator
  • Port Opening Full
  • Seat Integral/Renewable Metal to Metal or Soft Seating
  • Disc Solid Knife type
  • Gasket & Packing PTFE / Graphite / Asbestos etc
  • MOC Refer Material Chart
  • Design Code MSS SP-81
  • Testing MSS SP-81
  • Inspection 3rd Party / Client / Manufacturer
  • Body Shell Test As per MSS SP- 81 Norms 10Kg/cm2 Working pressure 6Kg/cm2
  • Seat Leaking Test Metal Seated Vaalves as per MS SP 81 Norms & Tappi 405. Soft Seated Valves Zero Leakage

We have the exclusive stock & are the trader ofELECTRIC KNIFE GATE VALVEfrom sizes ranging from 50mm to 200mm ready stock.

View Complete Details

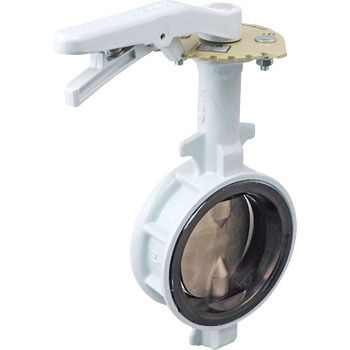

Ductile Iron Butterfly Valves

  • Number Of Flower WAFER
  • CLASS 10K/PN16
  • BODY DUCTILE IRON
  • DISC DUCTILE IRON
  • SEAT EPDM
  • SHAFT 13 Cr SS/ AISI 410
  • OPERATION LEVER/GEAR

Kitz Ductile Iron Butterfly Valve in a distinctive range of sizes following all the norms and standards set by industry accurately. Kitz Ductile Iron valves are manufactured with impeccable quality.

View Complete Details

Non Return Valve

  • Pressure Rating PN 40.
  • Body  Construction ASTM A 351 Gr. CF8 / CF8M
  • Disc AISI 304 or AISI 316
  • Spring AISI 304 or AISI 316
  • Spring Retainer AISI 304 or AISI 316
  • Disc Seat Metal to Metal
View Complete Details

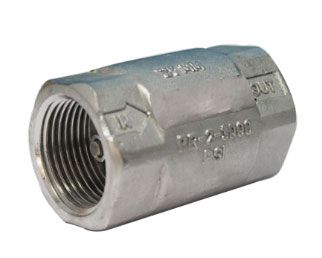

High Performance NON RETURN VALVE

  • Size 1/2" to 2"
  • Media Air, Water, Oil & Gas
  • Body CF8 / CF8M
  • Valve Pin S.S. 304/S.S. 316
  • Spring S.S. 304
  • '0' Ring Viton
  • Ends Screwed
  • Leakage test Buble tight
  • Pressure 3000 PSI
  • Temperature 100 °C (High Temperature available)
View Complete Details

Manual Butterfly Valves

  • Valve Size 40MM TO 600MM
  • Media Water, Air, Gas
  • Brand Name KITZ
  • Pressure PN 10 & PN 16
  • Temperature of Media Low Temperature, Medium Temperature
  • OPERATION LEVER/GEAR

We have the exclusive stock & are the trader ofKITZ ALUMINIUM BUTTERFLY VALVESfrom sizes ranging from 40mm to 300mm ready stock.

View Complete Details

ELECTRIC HIGH PERFORMANCE BUTTERFLY VALVES

  • Size Range 1.1/2” to 48”
  • Construction type Double Eccentric Disc Design
  • Body WCB / CF8 / CF8M
  • Disc WCB / CF8 / CF8M
  • Seat PTFE (Metal to Metal On request)
  • Shaft AISI 410/ 304/ 316
  • Plate Mounting NAMUR Standard
  • Pressure Rating ANSI 150 Class, ANSI 300 Class(On Request)
  • End Connection Wafer/ Sandwiched
  • Operating Temp Range: -25℃ to 180℃(Soft Seating), -25℃ to 600℃ (Metal to Metal Seating)
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.

View Complete Details

PNEUMATIC CAST IRON BUTTERFLY VALVES

  • End Connection Wafer Sandwiched(Lug Type On Request)
  • Pressure Rating PN 10 / PN 16(On Request)
  • Body I.C./ CI(IS 210 Gr.FG 200/ 220)WCB/ S.S.304/ S.S.316
  • Disc CF8/ CF8M/ CF3M/ S.G. Iron/ Teflon Coated /Powder Coated Nylon Coated/Rubber Line
  • Seat PEPDM/ Nitrile/ Hayplon/ Viton/ Moulded or Replaceable muffler type
  • Shaft AISI 410/ CF8/ CF8M/ CF3M
  • Valve Type: Centric Disc Butterfly Valve with a single piece rubber lined body
  • Body Type Short wafer (sandwiched between flanges)
  • Seat type Integrally Moulded with the body
  • Oper.Temp.range -25℃ to 130℃(depending on MOC)
  • Seat Leakage Tight shut off
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

CONCORDE VALVES AND AUTOMATIONS provides variety of Slim Seal Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as PN10, PN16, PN20, PN25, PN40.

View Complete Details

PNEUMATIC ALUMINIUM BUTTERFLY VALVES

  • Brand Name KITZ
  • Valve Size 40MM TO 600MM
  • Media Water, Air, Gas
  • Pressure PN 10 & PN 16
  • Temperature Of Media Low Temperature, Medium Temperature
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

We have the exclusive stock & are the trader of PNEUMATICALLY OPERATED KITZ BUTTERFLY VALVES, ALUMINIUM BUTTERFLY VALVEfrom sizes ranging from 40mm to 200mm ready stock.

View Complete Details

PNEUMATIC HIGH PERFORMANCE BUTTERFLY VALVES

  • Pressure Rating ANSI 150 Class, ANSI 300 Class(On Request)
  • Size Range 1.1/2” to 48”
  • Construction type Double Eccentric Disc Design
  • Body WCB / CF8 / CF8M
  • Disc WCB / CF8 / CF8M
  • Seat PTFE (Metal to Metal On Request)
  • Shaft AISI 410/ 304/ 316
  • Plate Mounting NAMUR Standard
  • End Connection Wafer/ Sandwiched
  • Operating Temp Range: -25℃ to 180℃(Soft Seating), -25℃ to 600℃ (Metal to Metal Seating)
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.

View Complete Details

Auto Drain Valve

  • Country of Origin 230V, 110, 24, 12V, AC/DC Available on Request
  • Valve Body CF8
  • Connection 1/2" BSP
  • Pressure Upto 10kg/cm2
  • Temperature 85° C
  • Time on 0.5 to 10 Sec.
  • Time Off 0.5 to 45 minute
  • Manualoverride Reset

Auto Drain Valveautomatically drains water from compressed air systems. Applications include air dryers, separator, coalescing filters and drop legs. The proper size and quality fittings should be used with ample inside diameters as not to restrict the flow to the ADT-A Adjustment of the timer ON time and OFF cycle time allows for optimal system drainage.

View Complete Details

High Performance Butterfly Valves

  • Pressure Rating ANSI 150 Class, ANSI 300 Class(On Request)
  • End Connection Wafer/ Sandwiched
  • Size Range 1.1/2” to 48”
  • Construction type Double Eccentric Disc Design
  • Body WCB / CF8 / CF8M
  • Disc WCB / CF8 / CF8M
  • Seat PTFE (available EPDM/Metal to Metal)
  • Shaft AISI 410/ 304/ 316
  • Plate Mounting NAMUR Standard
  • Operating Temp Range: -25℃ to 180℃(Soft Seating), -25℃ to 600℃ (Metal to Metal Seating)
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

CONCORDE VALVES AND AUTOMATIONS provides wide range of High performance Valves, these type of valves are prefered by clients for its heavy-duty, automatic throttling control flow for applications involving large flow rates and moderate pressure drops. It incorporates the two basic features of the high performance butterfly valve types: a PTFE, RTFE, or metal seal ring instead of a liner and double offset (eccentric operation) to reduce seal friction and operating torque and provide superior performance .We provide some of the high performance valves like Handle Operated Spherical Disc Valve and Worm Gear Operated Spherical Disc Valve too.

View Complete Details

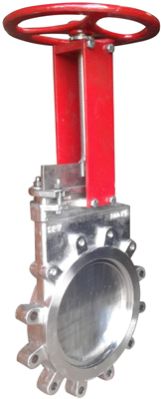

Gate Valve

  • Size 50NB — 600NB Above 600NB Consult Factory
  • Pressure 150PSI
  • Temperature 0 Deg C -1200 Deg C.
  • Body , Chest Solid One piece casting of Cast Iron Fg 260 Cast Steel Gr WCB , CF8, CF8M.
  • Seat Integral to Body, Soft, Optional.
  • Gate AISI SS 304, 316, 316L, 317, 317L
  • Screw Spindle AISI SS 410, 304, 316.
  • Nut Brass
  • Yoke Plate type of MS.
  • Gland Follower Cast Iron , Cast steel , Ductile Iron , CF8, CF8M.
  • Hand Wheel Cast Iron , Cast steel , Ductile Iron
  • Gland Packing PTFE , PTFE Impregnated.
  • Ends Lugged
  • Port STANDARD [Round].Optional V Port, Diamond Port, .
  • Body Shell Test As per MSS SP- 81 Norms 10Kg/cm2 Working pressure 6Kg/cm2
  • Seat Leaking Test Metal Seated Vaalves as per MS SP 81 Norms & Tappi 405. Soft Seated Valves Zero Leakage

We have the exclusive stock & are the trader ofKNIFE GATE VALVEfrom sizes ranging from 40mm to 200mm ready stock.

View Complete Details

ELECTRIC CAST IRON BUTTERFLY VALVES

  • End Connection Wafer Sandwiched(Lug Type On Request)
  • Pressure Rating PN 10 / PN 16(On Request)
  • Body I.C./ CI(IS 210 Gr.FG 200/ 220)WCB/ S.S.304/ S.S.316
  • Disc CF8/ CF8M/ CF3M/ S.G. Iron/ Teflon Coated /Powder Coated Nylon Coated/Rubber Line
  • Seat PEPDM/ Nitrile/ Hayplon/ Viton/ Moulded or Replaceable muffler type
  • Shaft AISI 410/ CF8/ CF8M/ CF3M
  • Valve Type: Centric Disc Butterfly Valve with a single piece rubber lined body
  • Body Type Short wafer (sandwiched between flanges)
  • Seat type Integrally Moulded with the body
  • Oper.Temp.range -25℃ to 130℃(depending on MOC)
  • Seat Leakage Tight shut off
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

CONCORDE VALVES AND AUTOMATIONS provides variety of Butterfly Valves , these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world. We are providing the valves with pressure classes, such as such as PN10, PN16, PN20, PN25, PN40.

View Complete Details

PNEUMATIC OPERATED KNIFE GATE VALVE

  • Size 50NB — 600NB Above 600NB Consult Factory
  • Pressure 150PSI
  • Temperature 0 Deg C -1200 Deg C.
  • Body , Chest Solid One piece casting of Cast Iron Fg 260 Cast Steel Gr WCB , CF8, CF8M.
  • Seat Integral to Body, Soft, Optional.
  • Gate AISI SS 304, 316, 316L, 317, 317L
  • Screw Spindle AISI SS 410, 304, 316.
  • Nut Brass
  • Yoke Plate type of MS.
  • Gland Follower Cast Iron , Cast steel , Ductile Iron , CF8, CF8M.
  • Hand Wheel Cast Iron , Cast steel , Ductile Iron
  • Gland Packing PTFE , PTFE Impregnated.
  • Ends Lugged
  • Port STANDARD [Round].Optional V Port, Diamond Port, .
  • Body Shell Test As per MSS SP- 81 Norms 10Kg/cm2 Working pressure 6Kg/cm2
  • Seat Leaking Test Metal Seated Vaalves as per MS SP 81 Norms & Tappi 405. Soft Seated Valves Zero Leakage

CONCORDE VALVES AND AUTOMATIONS provides variety of , PNEUMATIC OPERATED KNIFE GATE VALVE, these type of valves are known for their durability and long lasting life so it is prefered by clients all over the world.

View Complete Details

ELECTRIC ALUMINIUM BUTTERFLY VALVE

  • Media Water, Air, Gas
  • Pressure PN 10 & PN 16
  • Brand Name KITZ
  • Temperature Of Media Low Temperature, Medium Temperature
  • Valve Size 40MM TO 600MM
  • Operation Hand Lever, Worm Gear box, Pneumatic Actuated, Electrical Actuated

We have the exclusive stock & are the trader ofELECTRICALLY OPERATED KITZ BUTTERFLY VALVESfrom sizes ranging from 40mm to 200mm ready stock.

View Complete Details
