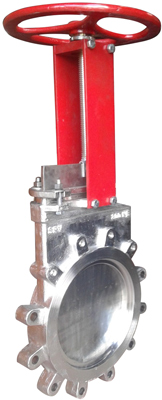

Gate Valve

SeatIntegral to Body, Soft, Optional.
Size50NB — 600NB Above 600NB Consult Factory
Gland PackingPTFE , PTFE Impregnated.
Seat Leaking TestMetal Seated Vaalves as per MS SP 81 Norms & Tappi 405. Soft Seated Valves Zero Leakage
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

PortSTANDARD [Round].Optional V Port, Diamond Port,.
Screw SpindleAISI SS 410,304,316.
Body , ChestSolid One piece casting of Cast Iron Fg 260 Cast Steel Gr WCB ,CF8,CF8M.
Hand WheelCast Iron , Cast steel , Ductile Iron
Gland PackingPTFE , PTFE Impregnated.
Temperature0 Deg C -1200 Deg C.
Size50NB — 600NB Above 600NB Consult Factory
Pressure150PSI
YokePlate type of MS.
Gland FollowerCast Iron , Cast steel , Ductile Iron ,CF8,CF8M.
EndsLugged
Body Shell TestAs per MSS SP- 81 Norms 10Kg/cm2 Working pressure 6Kg/cm2
SeatIntegral to Body, Soft, Optional.
Seat Leaking TestMetal Seated Vaalves as per MS SP 81 Norms & Tappi 405. Soft Seated Valves Zero Leakage
GateAISI SS 304,316,316L,317,317L
NutBrass
