Our Products
Leading Manufacturer, Supplier & Retailer of Static Cone Penetrometer 100 Kn Engine Driven, Digital Direct Shear Apparatus, Triaxial Load Frame Digital, Digital Load Frame and Direct Shear Electronic.

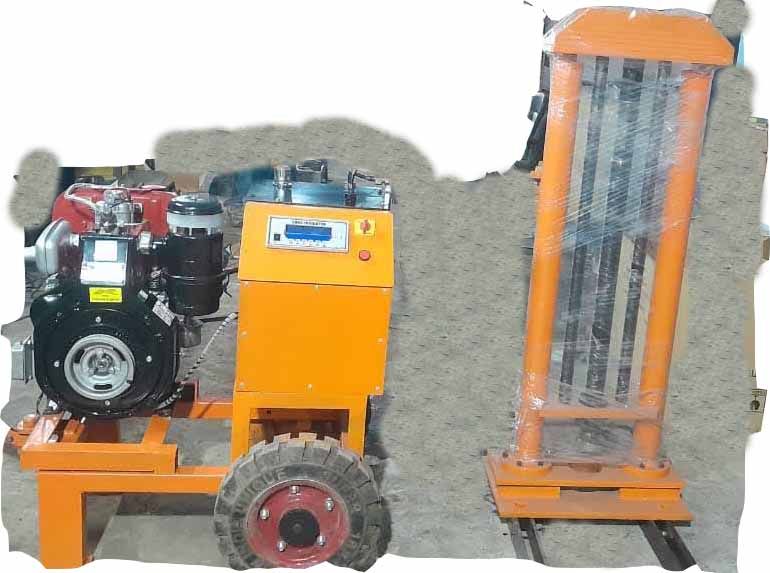

To reach greater depths and constant rate of penetration of 1 to 2.5 cm/sec of the cone. The Engine driven Static Cone 100 KN preferred.
The equipment consists of a Hydraulic pump-driven by a petrol Engine The Engine Mounted on a towable trolley. The pumping unit connected by means of flexible pipes.
Complete with Penetration Cone, Extension and other necessary accesories.

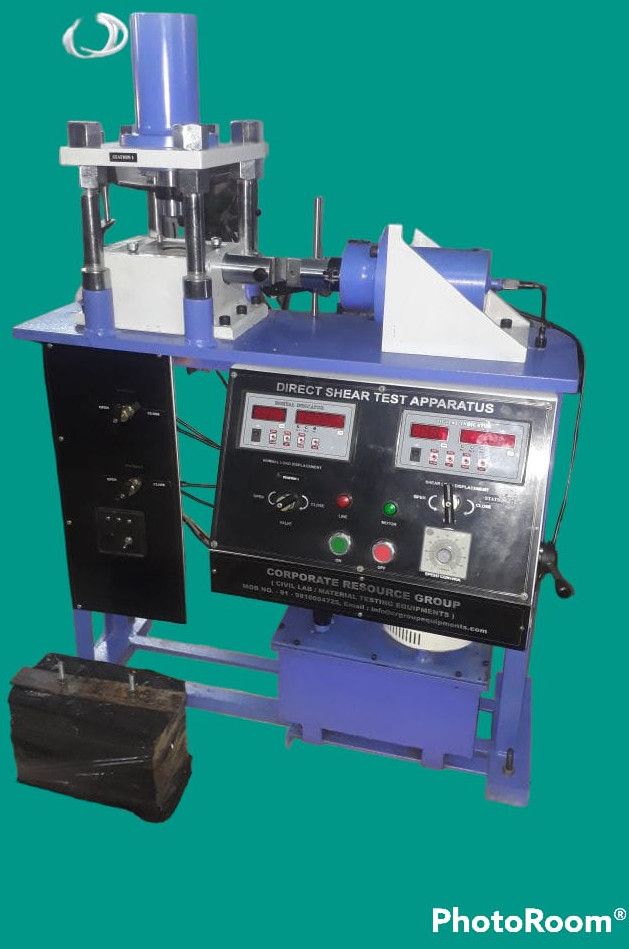

Digital Direct Shear Apparatus Electrically operated to give the following 12 rates or strains. 1.25, 0.625, 0.25, 0.125, 0.01, 0.002, 0.005, 0.0001, 0.0004 AND 0.0002 mm /min. The apparatus is suitable for operation on 230Volts single phase A.C. Supply.
At the same time it can set unlimited speed by using the knob.
Digital Universal Triaxial Shear Load Tester capacity 5000 kgf. Speed 30 rates of strain

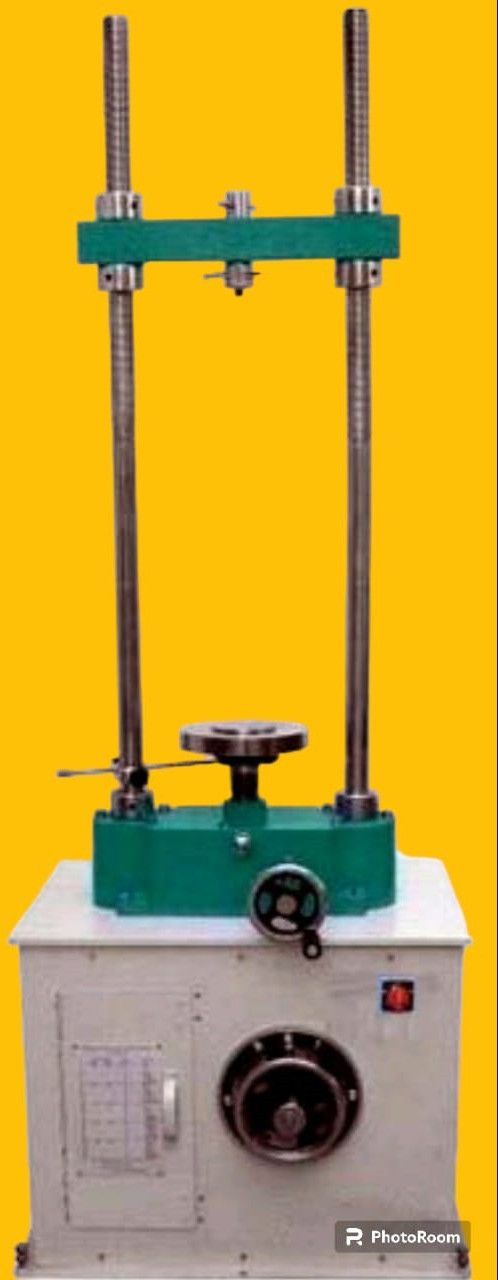

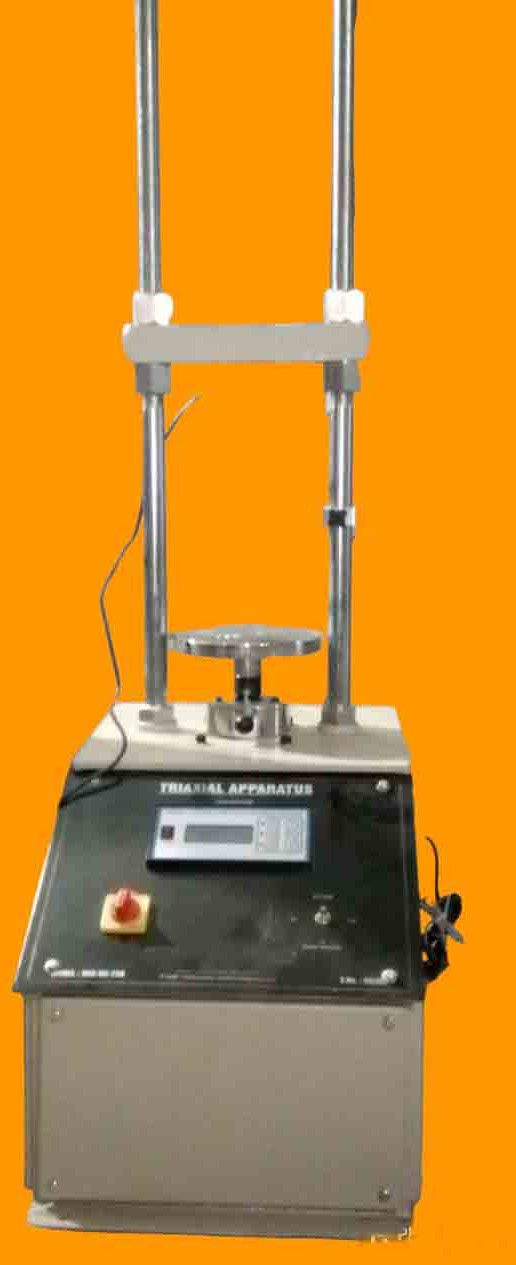

Digital Load Frame having 30 rates of strain. Capacity 5000 kgf

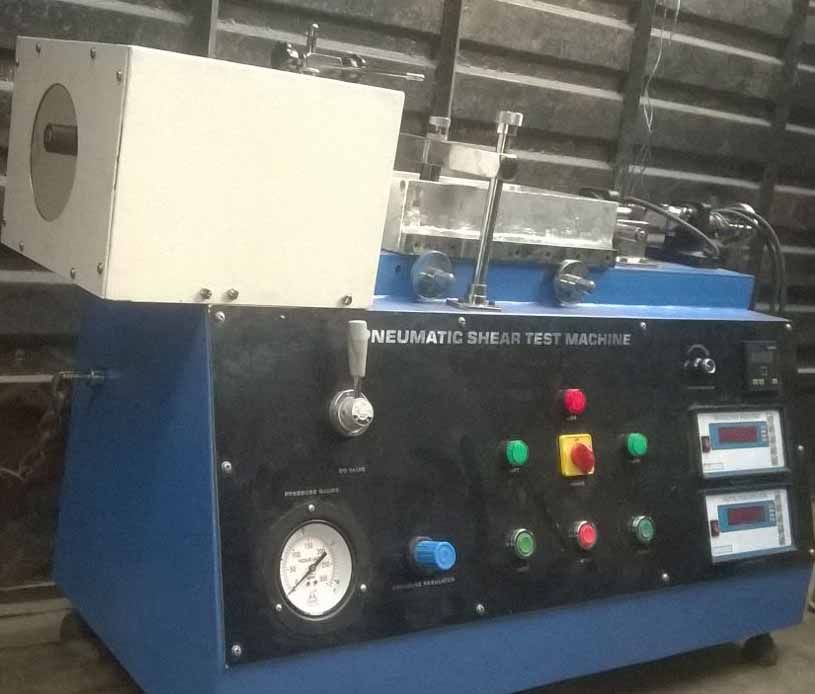

Direct Shear Apparatus With complete accessories. Digital or with RS 232 Port for Data acquisition.

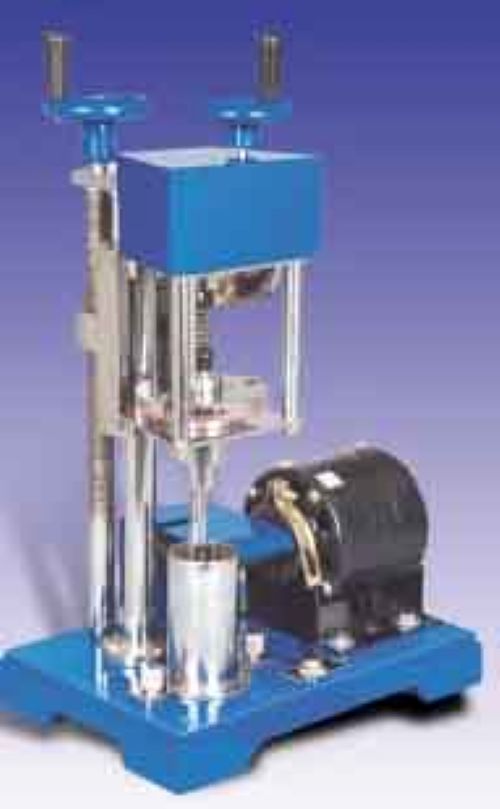

Laboratory Vane Shear Apparatus Hand Operated
Laboratory Vane Shear Apparatus Motorised
Field Vane Shear Apparatus
Soft and sensitive soils whose shear strength is less than 15KN/m2 the results are depended on operators skill.
Consists of a torque hand adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen.

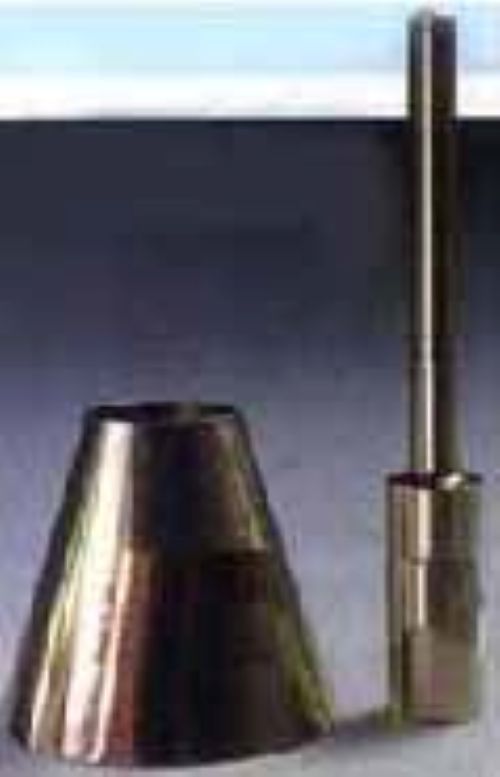

The equipment comprises of A conical metal mould 2.7/8 inch in height. A metal tamping rod.
Different rate of strain Capacity 20 KN has upto 30 rates of strain.

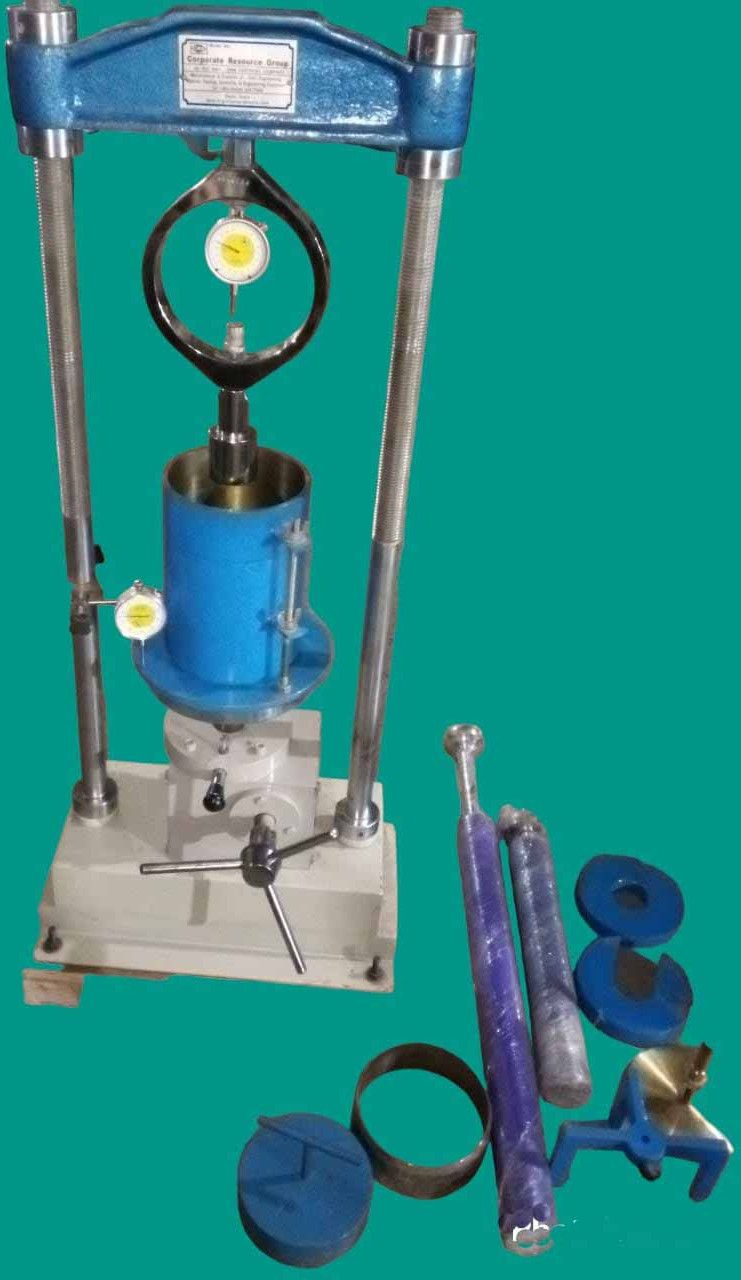

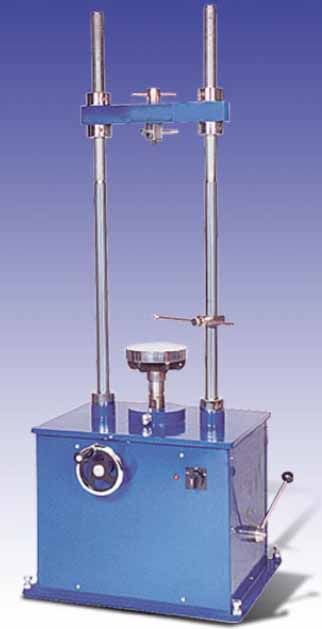

Load Frame for CBR
Triaxial
Unconfined,
Rock Triaxial,
Torsional Ring Shear Apparatus
Rock ITS test (Indirect Tensile Strength ) splitting test, is a widely adopted test methodthat uses a rock compression machine in order to measurethe rocks tensile strength.
Uniaxial compressive strength of Rock ( UCS)
Digital controlled Load frame can also Manufacture.
The unit is made of Bench mounted. The Sand Equivalent Shaker provides a consistent and repeatable oscillation, minimising variation in test results.
Manual models are also available.

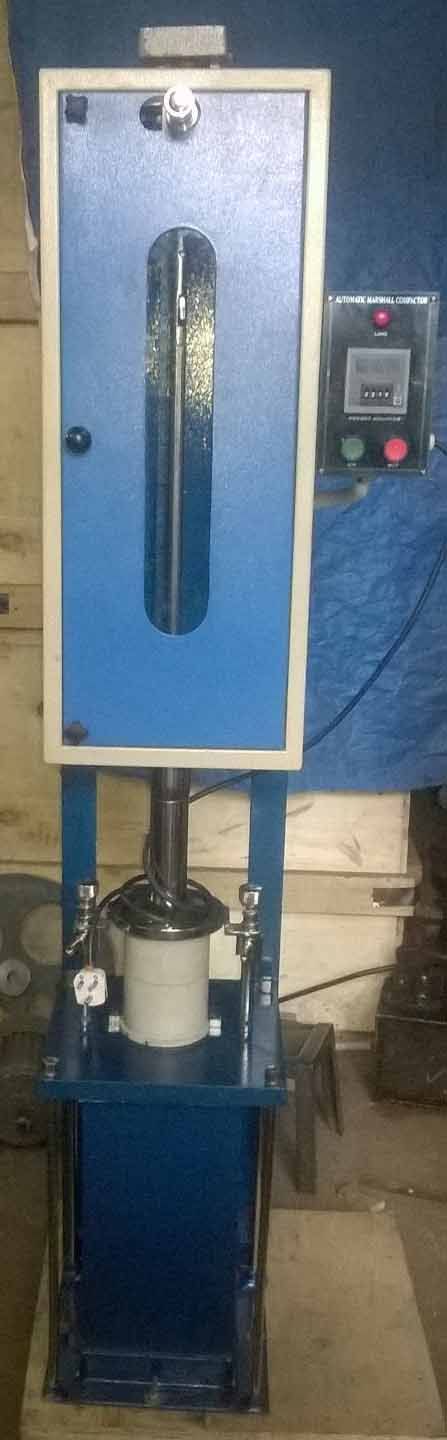

Marshall Compactorautomatically compact the bituminous sampleand stops off the motor after the present number of blows has been completed.

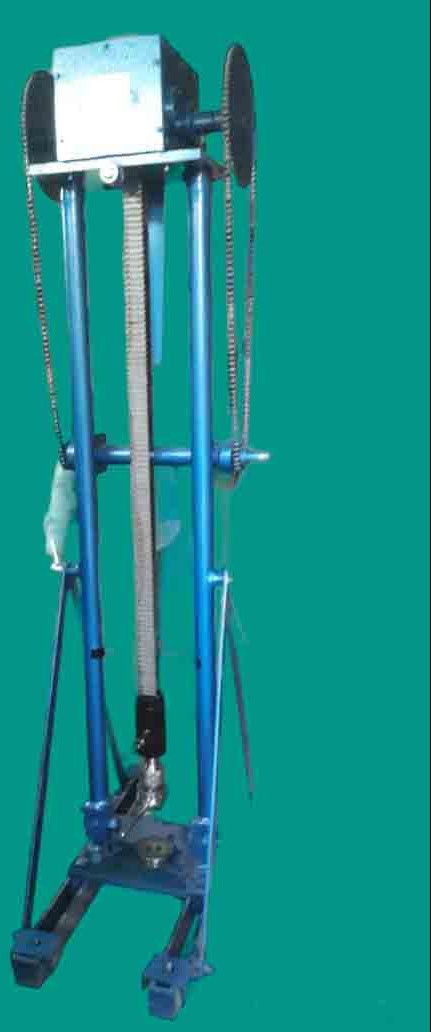

Static Cone Penetrometer Hand Operted capacity 3000 kgf
Static Cone Penetrometer 5 Ton Capacity
Static Cone Penetrometer 10 Ton Capacity
The drive is by means of a rack and pinion and is driven manually through a gearing arrangement.
The gearbox rack and pinion are fixed on two upright pillars and the movement of the pressure gauges 15cm sq. are provided to indicate the penetration resistance. Isolation valve is provided to automatically isolate the lower range gauge when it reaches the maximum capacity. The valve can be adjusted and locked at desired values between 20 to 60kg/cm.sq. provisions made to anchor the unit at site and there is provision for lateral shifting so that subsequent tests could be performed without having to shift the entire anchorage system.
The standard outfit is as under :
Penetration cone, steel 60 angle 10sq.cm. base area with friction jacket on Mantle tube, nonuse form 36mm, OD at the two ends and reduced dia in between with souriding rod, working length 1m Fifteen.
Load measuring head with automatic cut off valve and oil can one set.
Pressure Gauge 0-160kg /cm.sq One
Pressure Gauge 0-60kg/cm.sq. . One.
Auger with bolt. Four
Auger driving handle . Four
Bench mounting type 5000kgf capacity load frame Motorized or Hand Operared Load frame. The lead screw of the load frame had a single constant rate of travel of 1.25mm/minute. Complete with all accessories and Proving Ring.
Digital Models are also available.

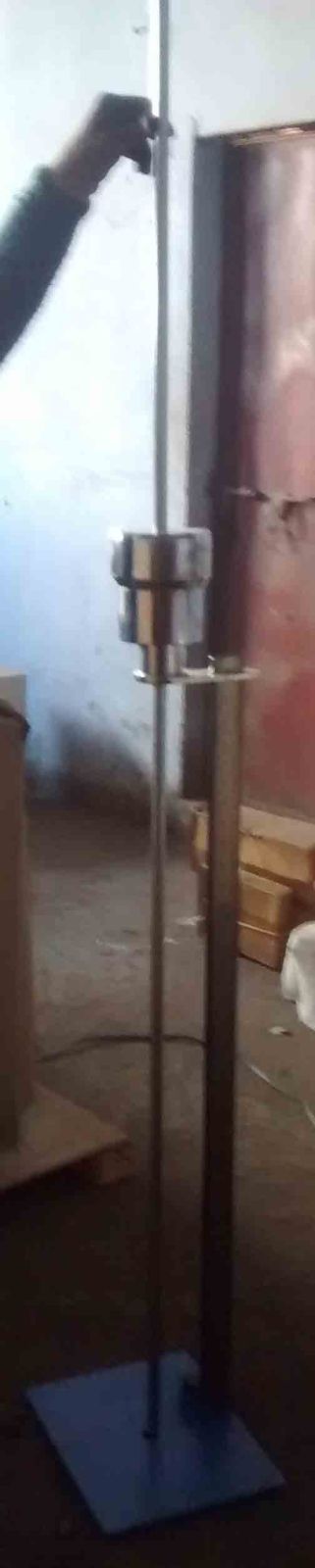

The Dynamic Cone Penetrometer (DCP) is an instrument designed to provide a measure of the in-situ strength of fine grained and granular subgrades, granular base and subbase materials, and weakly cemented materials.
Additional Information:
Payment Terms : T/T
Delivery Time : 7 days

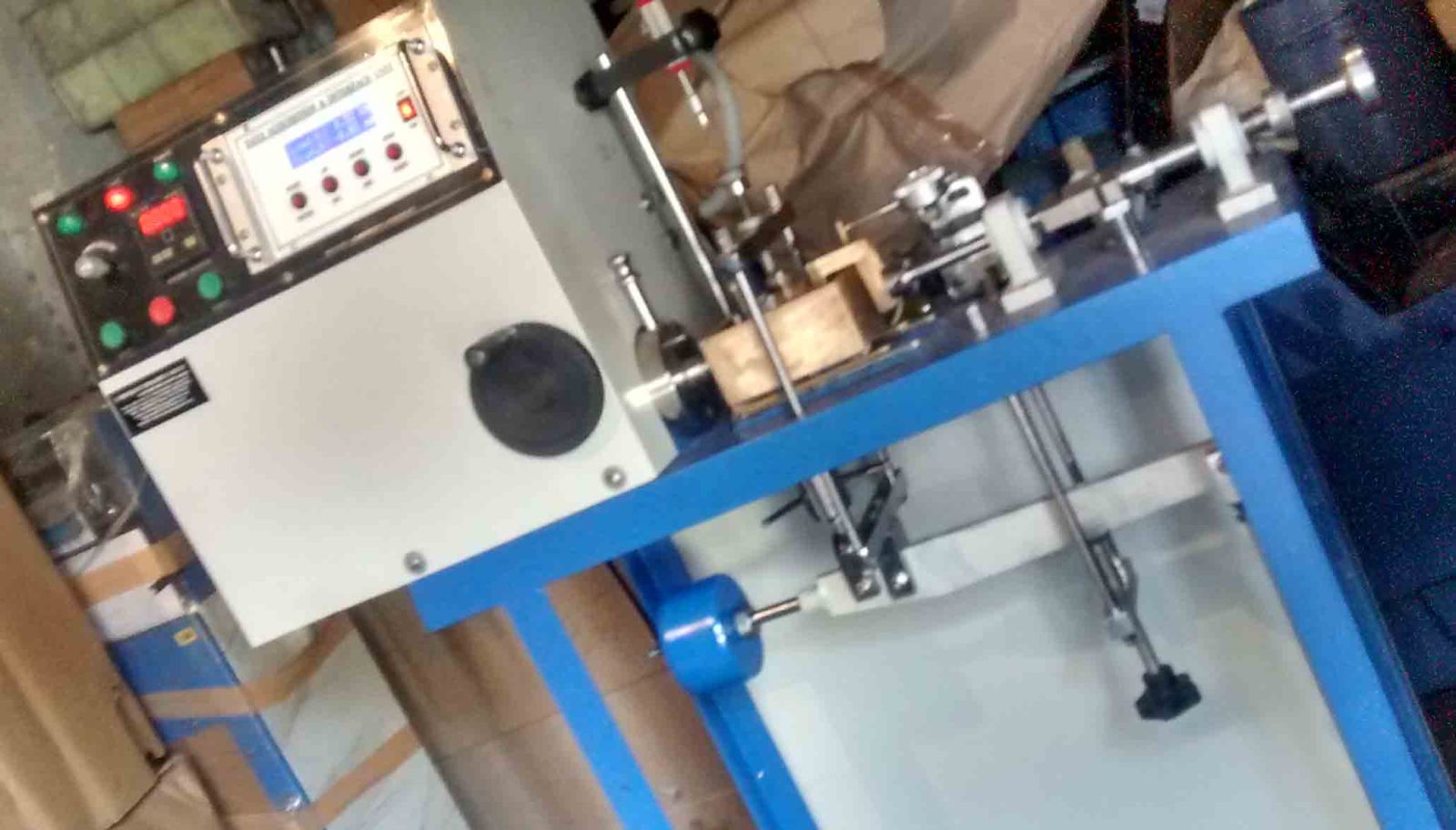

Automatic Direct Shear Apparatus with data acquisition system with software.
Additional Information:
Payment Terms : T/T
Delivery Time : 7 days

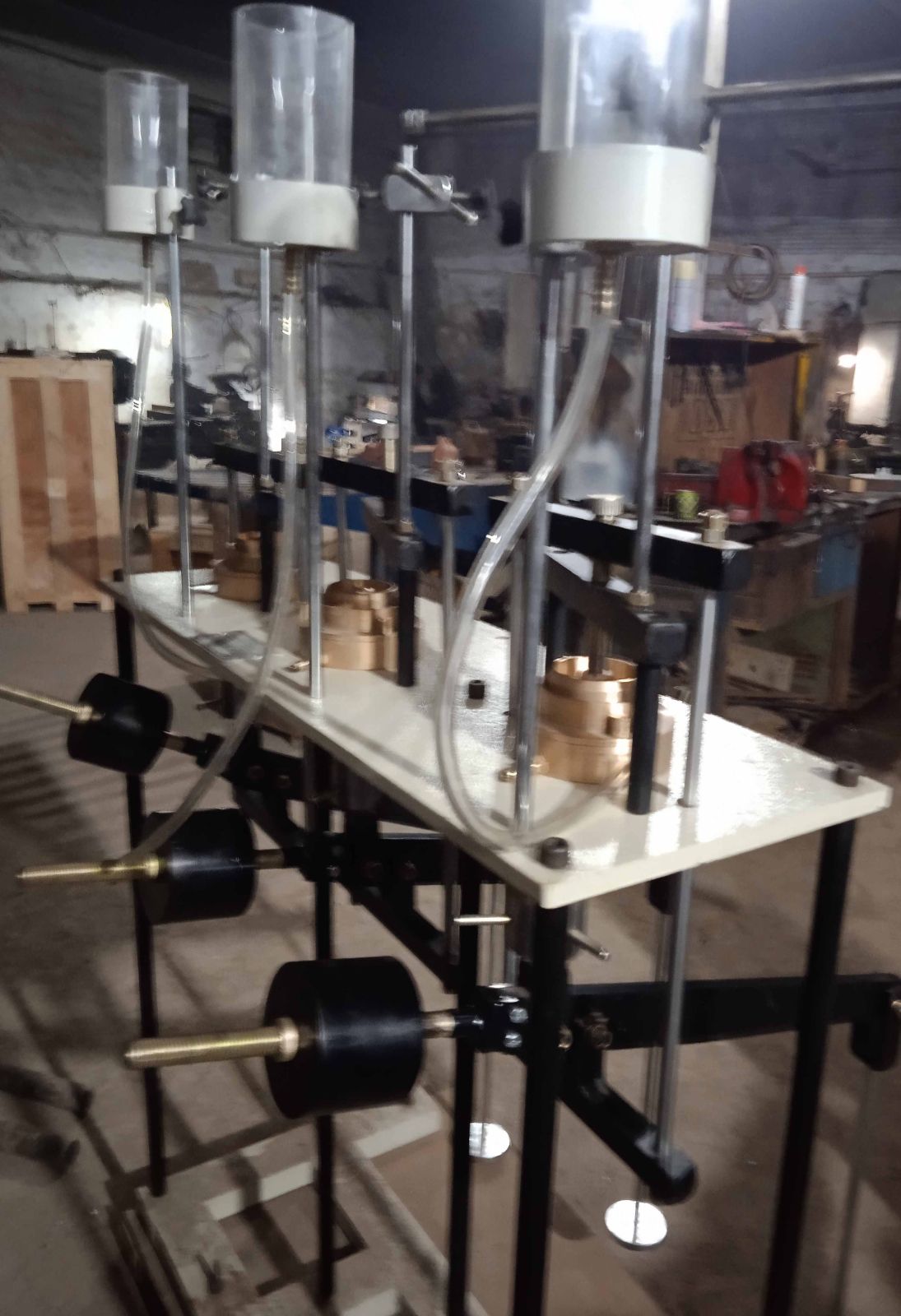

This equipment has been designed and fabricated for measuring the differential settlement of compressible soils under static load.
Single Gang
Three Gang Model
