Static Cone Penetrometer

Static Cone Penetrometer Hand Operted capacity 3000 kgf

Static Cone Penetrometer 5 Ton Capacity

Static Cone Penetrometer 10 Ton Capacity

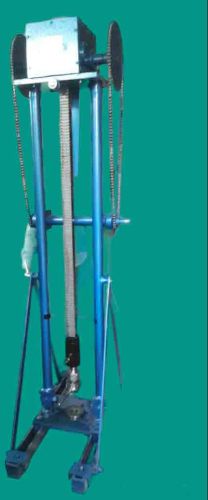

The drive is by means of a rack and pinion and is driven manually through a gearing arrangement.

The gearbox rack and pinion are fixed on two upright pillars and the movement of the pressure gauges 15cm sq. are provided to indicate the penetration resistance. Isolation valve is provided to automatically isolate the lower range gauge when it reaches the maximum capacity. The valve can be adjusted and locked at desired values between 20 to 60kg/cm.sq. provisions made to anchor the unit at site and there is provision for lateral shifting so that subsequent tests could be performed without having to shift the entire anchorage system.

The standard outfit is as under :

Penetration cone, steel 60 angle 10sq.cm. base area with friction jacket on Mantle tube, nonuse form 36mm, OD at the two ends and reduced dia in between with souriding rod, working length 1m…………………… Fifteen.

Load measuring head with automatic cut off valve and oil can one set.

 Pressure Gauge 0-160kg /cm.sq ………………… One

Pressure Gauge 0-60kg/cm.sq. ………………….. One.

Auger with bolt………………………………….. Four

Auger driving handle ……………………………. Four
