We are leaders in the market for providing best range of Automatic Water Pouch Packing Machine, High Speed Automatic Pouch Packing Machine, Automatic milk packing machine CFlex-1000-L Impulse SH and Automatic Paste Pouch Packing Machine

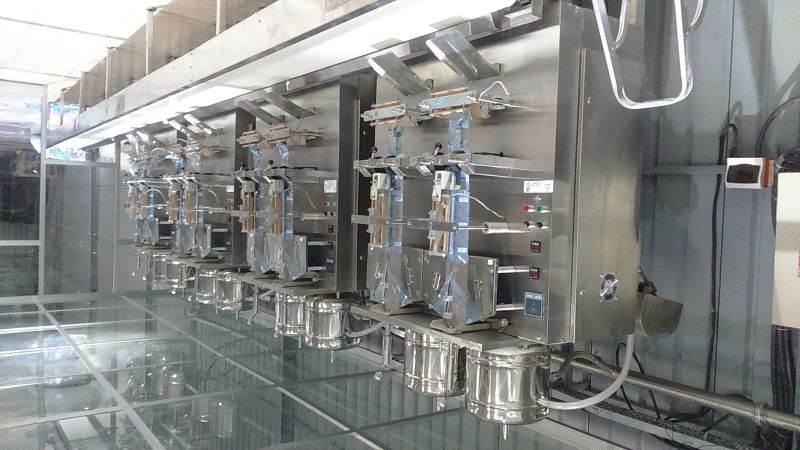

Creativeflex present india advances CSM technology fully automatic high speed form fill & seal machine Cflex Aquatica 500 L DH (Double Head) pouch packing machines to pack RO pure drinking water in multy layer co-extruded LLDPE poly pouches.
TECHNICAL SPECIFICATIONS
01. Feeding head : Continues gravity flow filling system.
02. Production Speed : 6000 - 6400 pouches / hour.
03. Machine Control system : Digital Electronic System.
04. Packing range : 100 to 500 ml.
05. Film Width : 325 mm.
06. Film Thickness : 60 to 80 microns.
07. Film Material : Co-Extruded Virgin films.
08. Sealer heating system : Continues Sealing system.
09. Filling Accuracy : +/- 3 ml.
10. Inner Core Dia. of Film Roll : 70 mm.
11. Outer Dia. of the film Roll : up to 350 mm.
12. Pouch Style : Center sealed Pillow type.
13. Pouch Width : up to 150 mm.
14. Pouch Length : Up to 160 mm.
15. Power Consumption : 2.4 kW / Hour.
16. Peak Power : 3.5 kW.
17. Power requirement : Single phase, 230 V, AC 50 Hz.
18. Cooling Water requirement : Not required.
20. Pouch Counter : Provided.
21. Date printing Device : Optional.
25. Machine Dimensions : 1500(H)x1600(W)x950(Dept) mm.
26. Net Weight : 450 kgs (approx).
____________________________________________________________________________
Note: Due to continue R&D and products enhancement technical specifications are subject to change with prior notice.
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : Export worthy wodden packing
Delivery Time : One week
