Our Products
We offer the best product range of Water Pouch Packing Machine, Oil Pouch Packing Machine, Cflex-500 L-DH Water Pouch Packaging Machine, Cflex-500 L Water Pouch Packaging Machine and Automatic Edible Oil Packing Machine.
high speed fully automatic form fill & seal machines (pouch packing machines) to pack ro pure drinking water in three layer co-extruded lldpe poly pouches.
technical specifications
01. feeding head : continues gravity flow filling system.
02. production speed : 3000 - 3200 pouches / hour.
03. machine control system : electronic timer system.
04. packing range : 100 to 500 ml.
05. film width : 325 mm.
06. film thickness : 60 to 80 microns.
07. film material : co-extruded virgin films.
08. sealer heating system : continues sealing system.
09. filling accuracy : +/- 3 ml.
10. inner core dia. of film roll : 70 mm.
11. outer dia. of the film roll : up to 350 mm.
12. pouch style : center sealed pillow type.
13. pouch width : up to 150 mm.
14. pouch length : up to 160 mm.
15. power consumption : 1.2 kw / hour.
16. peak power : 2.5 kw.
17. power requirement : single phase, 230 v, ac 50 hz.
18. cooling water requirement : not required.
20. pouch counter : provided.
21. date printing device : optional.
25. machine dimensions : 1500(h)x800(w)x950(dept) mm.
26. net weight : 250 kgs (approx).
note: due to continue r&d and products enhancement technical specifications are subject to change with prior notice.
Additional Information:
Payment Terms : T/T, Western Union
Packaging Details : Export worthy wooden packing
Delivery Time : 5 days
Fully automatic form fill and seal machines to pack viscous liquid like edible oil, refined oil, vanaspati, ghee etc. in center seal or three side seal pillow pouches co-extruded multy layer poly pouches.
Range : 200 to 1000 ml/gm.
Capacity: 1000 to 1200 pouches/min.
Please do contact us for further information products related queries etc. we are happy to assist you for choosing right product for your applications.
Thanking you.
Additional Information:
Payment Terms : T/T
Packaging Details : Export worthy wooden planks
Delivery Time : 3 - 4 weeks

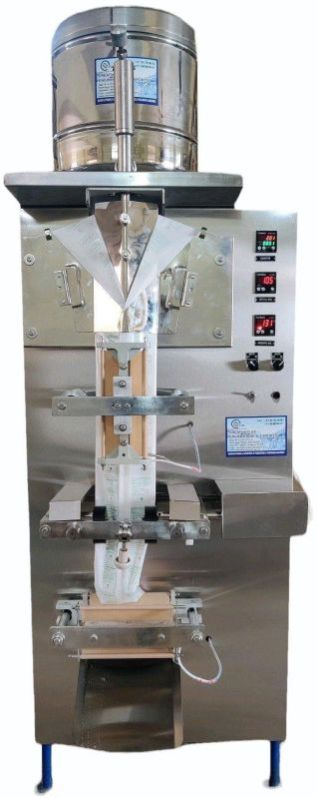

automatic from fill & seal machines to pack dairy product such as milk in center seal multy layer co-extruded poly pouches with float balance tank magnetic valve control volumetric filling system all contact parts are in ss 304 grade with optional attachments photo cell & batch coding complete ready to use.
technical specifications
model - cflex - 500 l (single head)
01. feeding head : magnetic coil float balanced gravity flow filling system.
02. production speed : 35-45 pouches / min.
03. machine control system : plc / digital solid state electronic control.
04. packing range : 200 500 ml.
05. film width : up to 325 mm.
06. film thickness : 65 to 85 microns.
07. film material : co-extruded virgin films.
08. sealer heating system : impulse sealing only.
09. filling accuracy : +/- 2 5 ml.
10. inner core dia. of film roll : 70 mm.
11. outer dia. of the film roll : up to 350 mm.
12. pouch style : center sealed pillow type.
13. pouch width : up to 150 mm
14. pouch length : up to 150 mm.
15. power consumption : 2.5 kw / hour.
16. peak power : 3.5 kw / hour.
17. power requirement : single phase, 230 v, 50hz.
18. cooling water requirement : 50 lt/hr @ 10 degree.
20. air compressor : not required.
21. pouch counter : available.
25. machine dimensions : 1850 (h) x 550 (w) x 650 (d) mm.
26. net weight : 250 kgs (approx).
note: due to r&d and products enhancements technical data are subject to change without prior notice.
Additional Information:
Payment Terms : T/T
Packaging Details : Export worthy wooden packing
Delivery Time : 25 to 30 days
Automatic form fill & seal machine to pack viscous and non viscous liquids in multy layer laminated three or four layer poly pouches (Sachets) with precisely design mechanical volumetric piston filling system, machine based on heavy duty MS atructure duly powder coated & wrapped with stainless steel cabinet all contact part are in SS 304 grade optional attachments "Photo Cell" complete ready to use.
Additional Information:
Payment Terms : T/T
Packaging Details : Export worthy wooden packing
Delivery Time : One week
