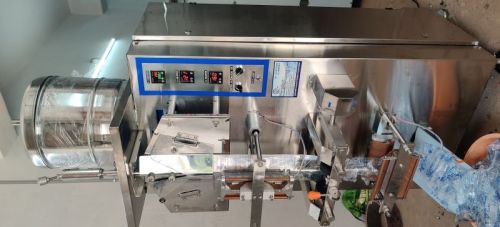

Stainless Steel Electric Fully Automatic Water Pouch Packing Machine, Weight : 500-1000kg

high speed fully automatic form fill & seal machines (pouch packing machines) to pack ro pure drinking water in three layer co-extruded lldpe poly pouches.

technical specifications

01. feeding head                         : continues gravity flow filling system.

02. production speed                   : 3000 - 3200 pouches / hour.

03. machine control system           : electronic timer system.

04. packing range                        : 100 to 500 ml.

05. film width                             : 325 mm.

06. film thickness                       : 60 to 80 microns.

07. film material                          : co-extruded virgin films.

08. sealer heating system             : continues sealing system.

09. filling accuracy                      : +/- 3 ml.

10. inner core dia. of film roll        : 70 mm.

11. outer dia. of the film roll          : up to 350 mm.

12. pouch style                           : center sealed pillow type.

13. pouch width                          : up to 150 mm.

14. pouch length                         : up to 160 mm.

15. power consumption                 : 1.2 kw / hour.

16. peak power                            : 2.5 kw.

17. power requirement                  : single phase, 230 v, ac 50 hz.

18. cooling water requirement        : not required.

20. pouch counter                       : provided.

21. date printing device                : optional.

25. machine dimensions                 : 1500(h)x800(w)x950(dept) mm.

26. net weight                            : 250 kg’s (approx).

note: due to continue r&d and products enhancement technical specifications are subject to change with prior notice.
