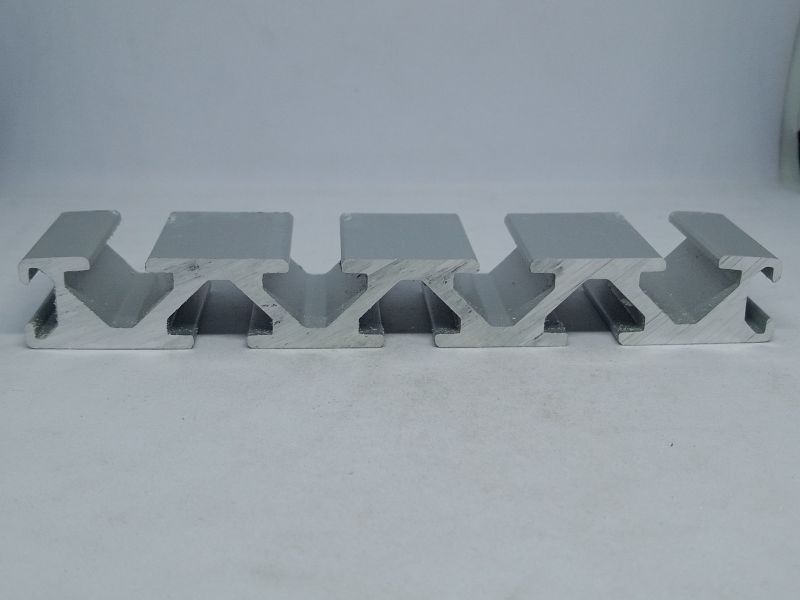

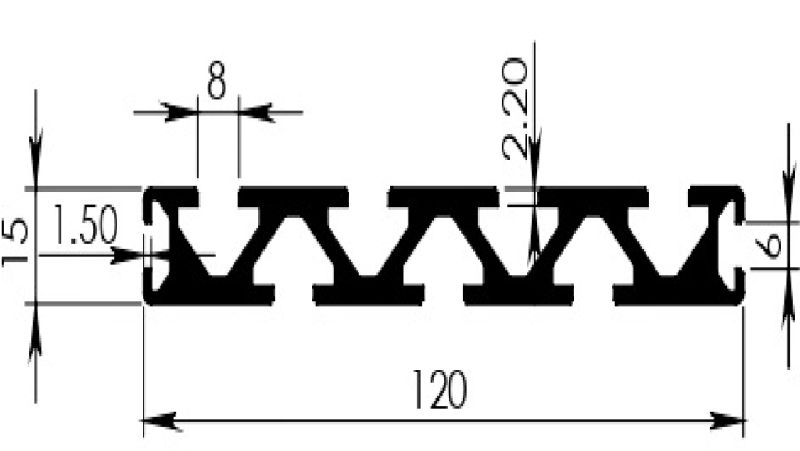

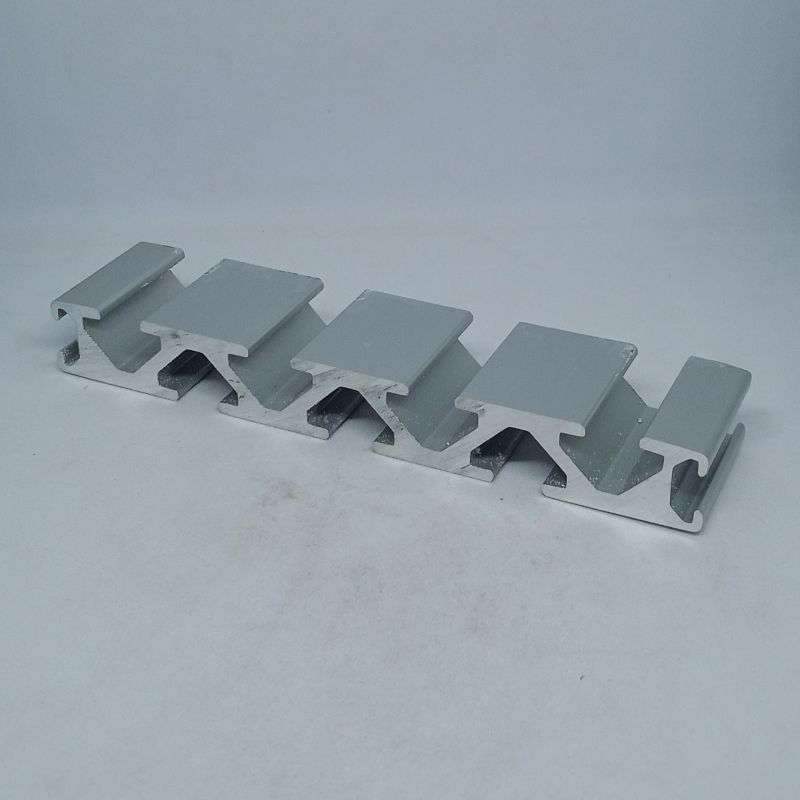

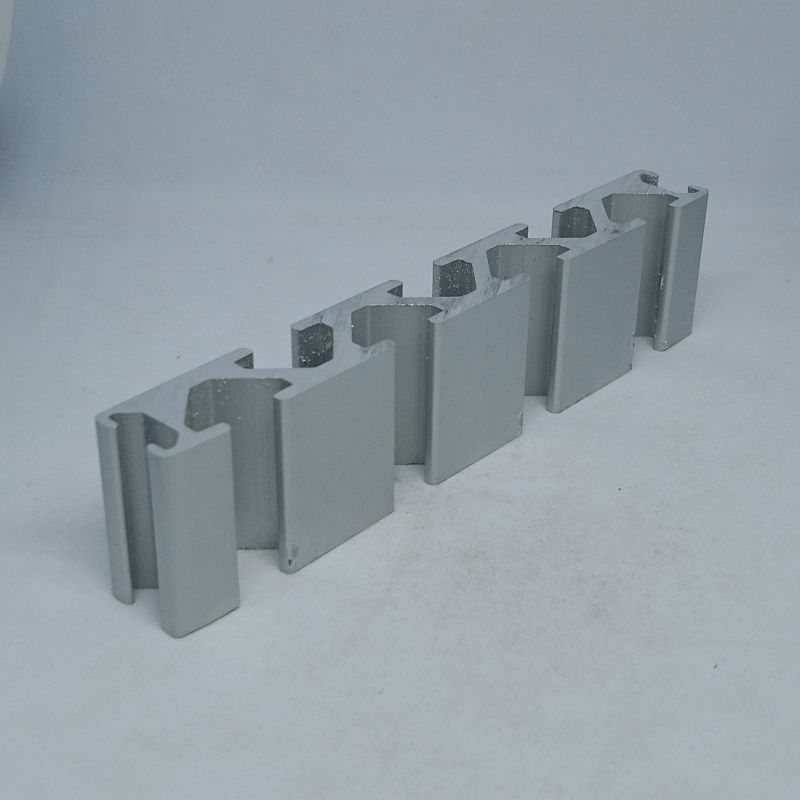

The Dexterous Aluminium Profile 15x120 is a high-strength, precision-engineered T-slot extrusion designed for robust industrial framing and automation applications. Manufactured from premium-grade aluminium alloy 6063-T6, this profile combines superior mechanical strength, light weight, and corrosion resistance, making it ideal for heavy-duty structural frameworks and industrial automation systems.

With a cross-section of 15mm x 120mm, this profile offers a unique balance of rigidity and flexibility in design. Each meter of the profile weighs approximately 2.11 kg ±150 grams, ensuring excellent load-bearing capacity without adding excessive weight to the overall structure. The high surface area of 794 mm² enhances stability while maintaining a sleek, compact form suitable for both lightweight and heavy-duty applications.

The moment of inertia values, measured as Ix = 110.4 cm and Iy = 2.2 cm, highlight its strong resistance to bending and deflection under load. It features dual slot widths of 6mm and 8mm ±0.2, allowing compatibility with a wide range of fasteners, brackets, and T-nuts, making it adaptable to multiple modular assembly systems. The profile also offers high tensile strength of 205 MPa and yield strength of 160 MPa, ensuring durability and reliable performance even under prolonged mechanical stress.

This model’s load-bearing capacity is one of the highest in its class. Based on standard testing, the 15x120 profile supports a maximum safe load of 4100 kg at a 0.3-meter span, 2400 kg at a 0.5-meter span, and 1250 kg at a 1-meter span (values are for static loads without safety factors). For practical engineering applications, a safety factor between 1.5 and 2.5 is typically recommended. These attributes make it exceptionally reliable for constructing industrial workstations, heavy-duty assembly lines, machine frames, and safety enclosures.

The profile is anodized to a premium finish that enhances corrosion protection, improves wear resistance, and gives a professional, aesthetic appearance suitable for exposed industrial or laboratory environments. The T-slot design facilitates rapid assembly, easy modification, and reusability—saving both time and labor during installation or redesign.

Applications

• Workstations and industrial assembly lines

• Machine frames and safety enclosures

• Conveyor support systems

• Heavy-duty linear motion structures

• Industrial automation and robotic frameworks

Key Features

• Dimensions: 15mm x 120mm

• Weight: 2.11 kg per meter ±150 g

• Slot Width: 6mm & 8mm ±0.2

• Moment of Inertia: Ix = 110.4 cm, Iy = 2.2 cm

• Tensile Strength: 205 MPa Yield Strength: 160 MPa

• Max Load Capacity: Up to 4100 kg (0.3 m span)

• Alloy: Aluminium 6063-T6 (Anodized)

• Length Options: Standard 6 meters (custom cuts available)

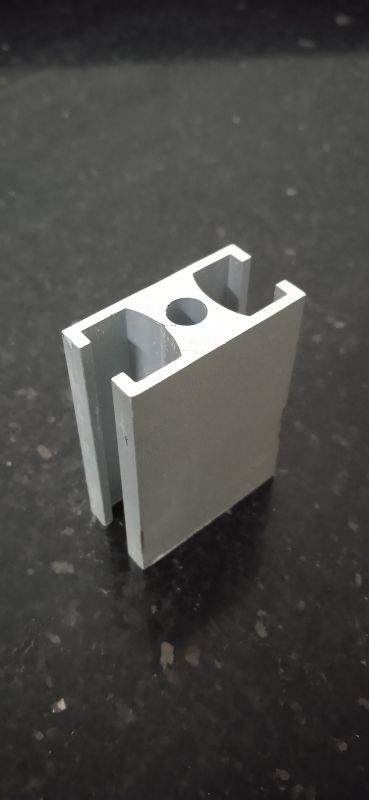

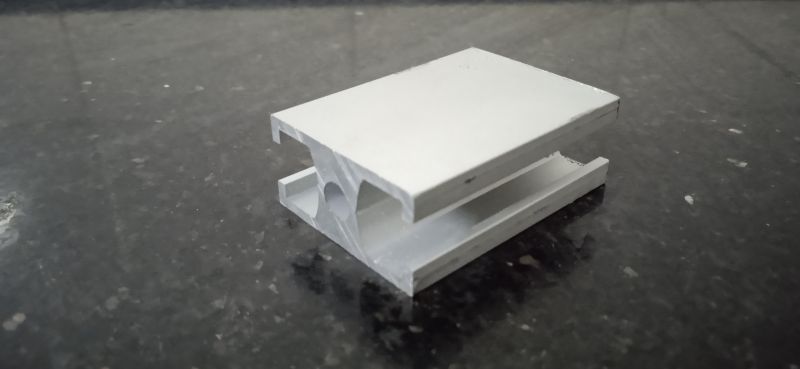

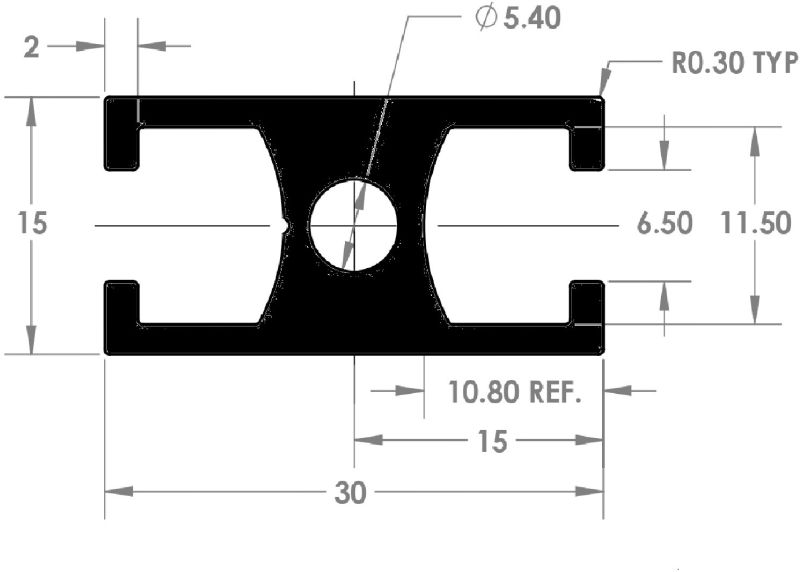

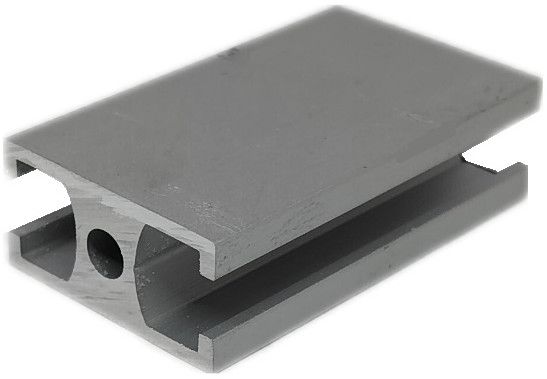

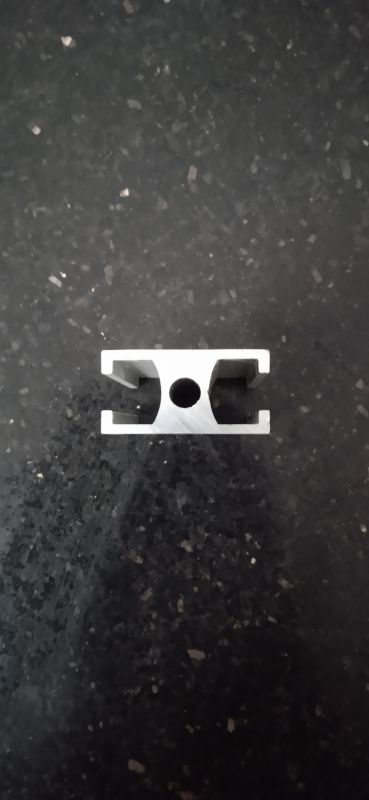

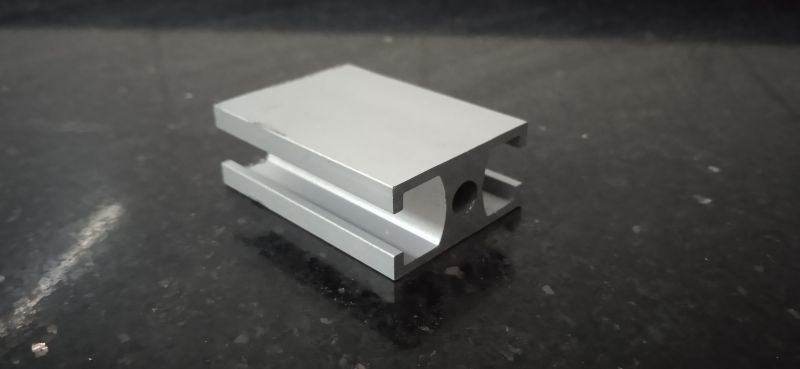

The Dexterous Aluminium Profile 15x30 is a high-quality, lightweight, and versatile structural framing component designed for a wide range of industrial and automation applications. Manufactured using premium Aluminium Alloy 6063-T6, this profile offers excellent mechanical strength, corrosion resistance, and dimensional accuracy, making it suitable for machine frames, enclosures, display structures, and lightweight frameworks.

With its cross-sectional size of 15mm x 30mm, the profile provides a compact yet sturdy structure that is ideal for small to medium-duty assemblies. It features a slot width of 6mm (±0.2 mm), allowing easy compatibility with standard slot-6 accessories such as T-nuts, bolts, and angle brackets. The center hole diameter of Ø5.5 mm is suitable for M5 threading or self-tapping, enabling quick and secure fastening without additional machining.

Weighing approximately 0.567 kg per meter (±100 grams), this profile combines low weight with strong structural support. The profile surface area of 211 mm² ensures excellent rigidity and load-bearing efficiency, providing the strength needed for various automation and mechanical structures. Its moment of inertia values (Ix = 0.8 cm, Iy = 1.6 cm) demonstrate balanced stiffness, making it capable of handling both vertical and horizontal loads effectively.

The profile has a tensile strength of 205 MPa and yield strength of 160 MPa, ensuring long-lasting performance even under continuous operation. It is anodized to a smooth, corrosion-resistant finish that provides a professional and aesthetic appearance suitable for cleanroom, industrial, and laboratory environments. The anodized coating also enhances resistance to wear, oxidation, and environmental factors.

The Dexterous 15x30 Aluminium Profile is engineered for efficiency and flexibility. It can be easily cut, drilled, and assembled using modular connection systems without welding or complex tools, making it ideal for adjustable and reusable structures. Its high-quality surface finish and precise slot dimensions enable seamless integration with all Dexterous T-slot components and accessories, ensuring reliable assembly every time.

In static load tests, the maximum safe load capacity is measured as 260 kg at a 0.3-meter span, 155 kg at a 0.5-meter span, and 75 kg at a 1-meter span. These values assume static load conditions without safety factors. For practical applications, a safety factor of 1.5 to 2.5 is recommended based on usage type and dynamic conditions.

• Lightweight framing structures

• Machine enclosures and guards

• Automation equipment and workstations

• Display and exhibition stands

• Laboratory and R&D setups

• Dimensions: 15mm x 30mm

• Weight: 0.567 kg/m ±100 g

• Slot Width: 6mm ±0.2 mm

• Center Hole: Ø5.5 mm (for M5 threading/self-tapping)

• Moment of Inertia: Ix = 0.8 cm, Iy = 1.6 cm

• Profile Surface Area: 211 mm²

• Tensile Strength: 205 MPa

• Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Estimated Max Load:

  • 0.3 m span – 260 kg

  • 0.5 m span – 155 kg

  • 1 m span – 75 kg

• Standard Length: 6 meters (Custom cutting available)

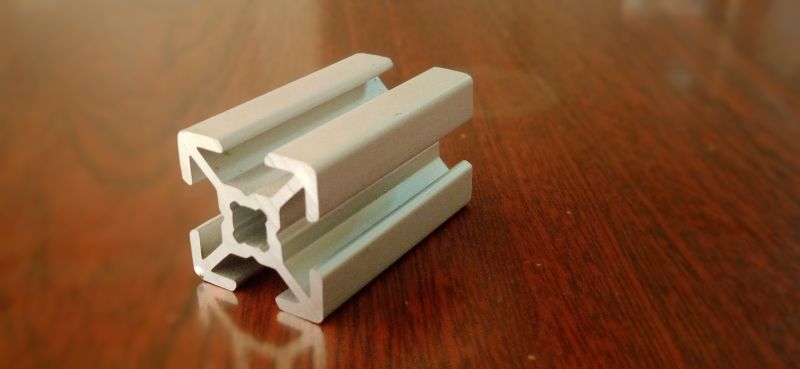

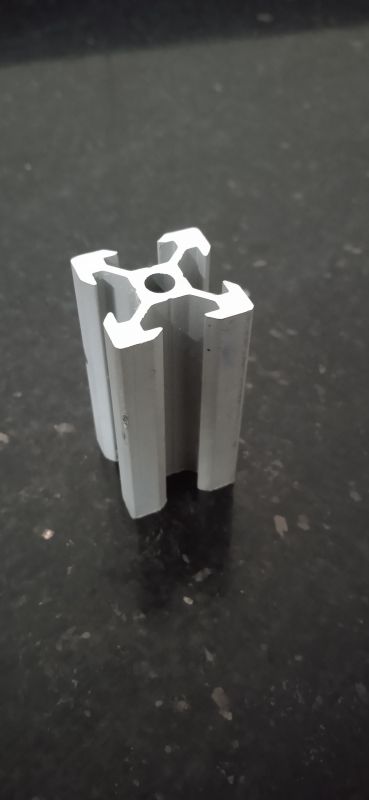

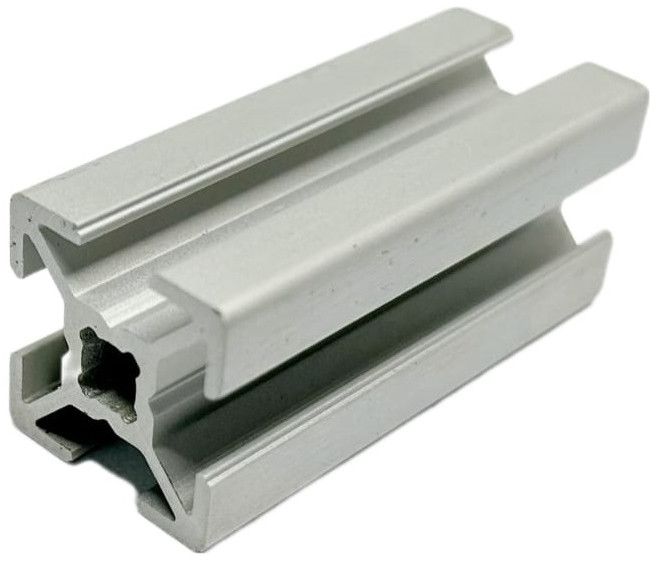

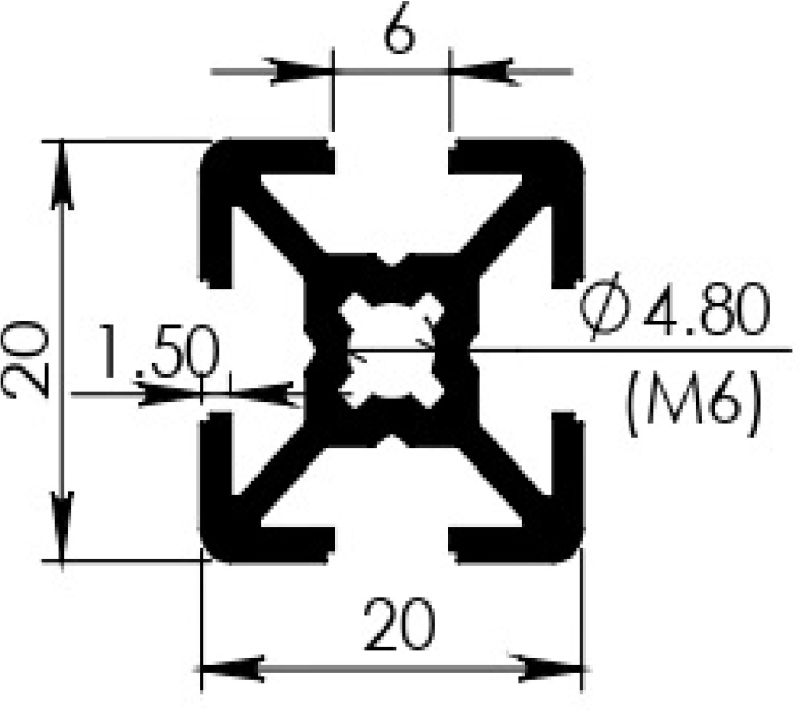

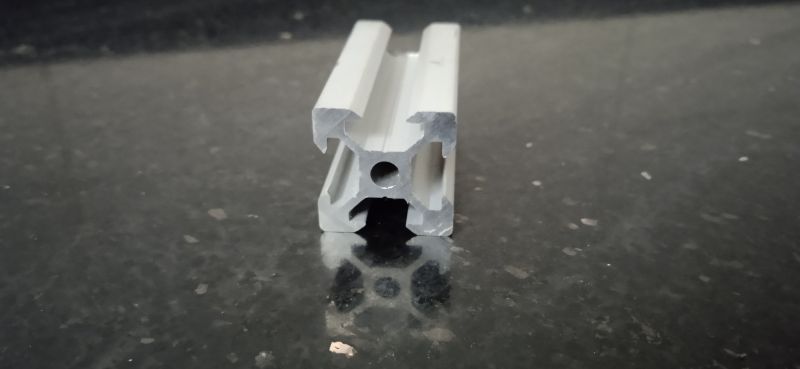

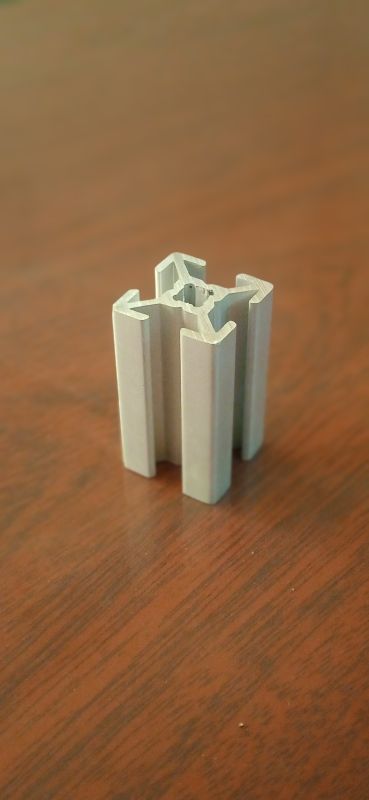

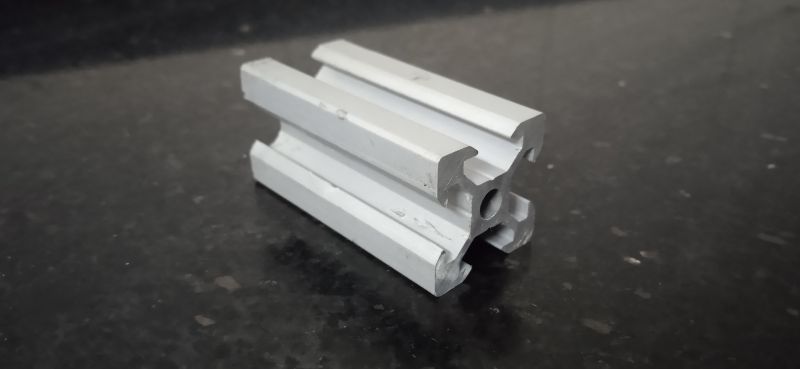

The Dexterous Aluminium Profile 20x20 T-Slot is a precision-engineered structural framing solution designed for light to medium-duty industrial, automation, and DIY applications. Manufactured from high-grade Aluminium Alloy 6063-T6, this profile offers an exceptional balance of strength, durability, and lightweight construction, making it a popular choice for machine frames, workstations, enclosures, and prototyping projects.

With its compact 20mm x 20mm cross-section, the profile provides a sturdy yet lightweight framework suitable for countless modular designs. Weighing approximately 0.420 kg per meter (±100 grams), it allows for easy handling and assembly without compromising rigidity. The profile surface area of 146 mm² ensures excellent load distribution and mechanical stability across structures, maintaining integrity under various working conditions.

The moment of inertia for this profile is Ix = 0.7 cm and Iy = 0.7 cm, demonstrating uniform strength and stiffness across both axes. The slot width of 6.15 mm (±0.2 mm) is perfectly compatible with standard M6 T-nuts, bolts, and accessories, offering flexibility for joining, mounting, and expanding assemblies. Its center hole diameter of Ø4.8 mm allows for M6 threading or self-tapping screws, providing a versatile interface for mechanical connections.

The 20x20 T-Slot profile is engineered for tensile strength of 205 MPa and yield strength of 160 MPa, guaranteeing structural reliability even in demanding applications. It is anodized with a natural silver finish, which not only enhances corrosion resistance but also provides a smooth, aesthetic appearance ideal for exposed installations and design-based assemblies.

In load testing, this profile demonstrates impressive strength for its size, with an estimated maximum safe load capacity of 1350 kg at a 0.3-meter span, 820 kg at a 0.5-meter span, and 410 kg at a 1-meter span (under static conditions, without applied safety factors). For engineering purposes, a safety factor between 1.5 and 2.5 is recommended, depending on the load and environment.

Thanks to its T-slot modular system, the profile allows for quick and secure connections using standard aluminium profile accessories such as brackets, connectors, angle joints, and base plates—eliminating the need for welding or machining. This modularity ensures reusability, easy adjustments, and long-term cost efficiency, making it suitable for engineers, designers, and hobbyists alike.

• Lightweight machine frames and workstations

• Enclosures, guarding systems, and display units

• 3D printer and CNC machine structures

• Automation and robotic assembly frames

• Custom furniture, stands, and prototypes

• Dimensions: 20mm x 20mm

• Weight: 0.420 kg/m ±100 g

• Slot Width: 6.15 mm ±0.2 mm

• Center Hole Diameter: Ø4.8 mm (for M6 threading)

• Moment of Inertia: Ix = 0.7 cm, Iy = 0.7 cm

• Tensile Strength: 205 MPa Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Standard Length: 6 meters (custom cut available)

• Load Capacity: Up to 1350 kg (0.3 m span)

This profile is widely used in automation systems, laboratory setups, assembly lines, and modular fixtures. It supports innovative engineering designs that require lightweight, corrosion-resistant, and modular structural integrity.

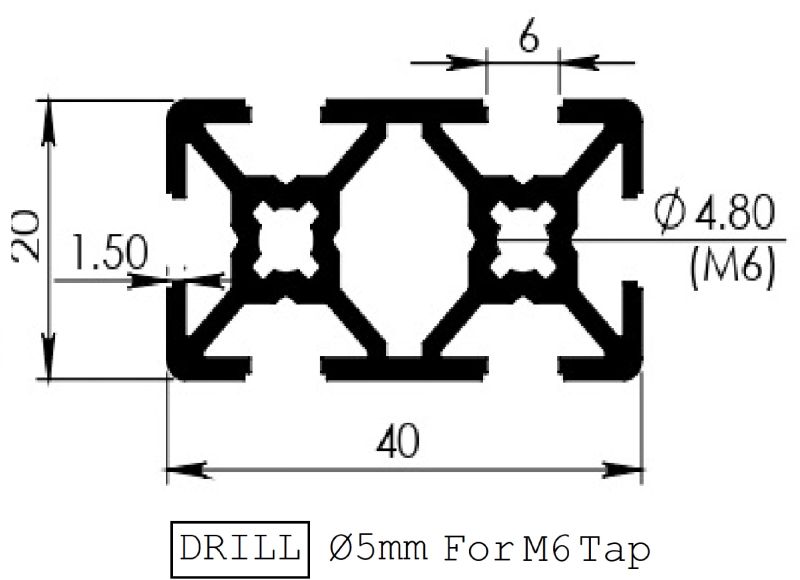

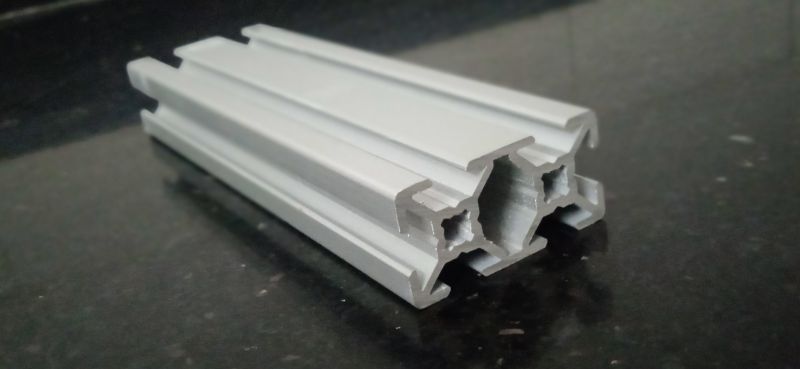

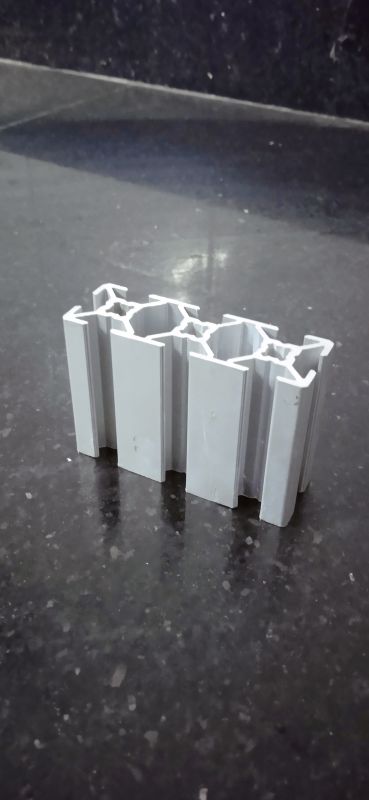

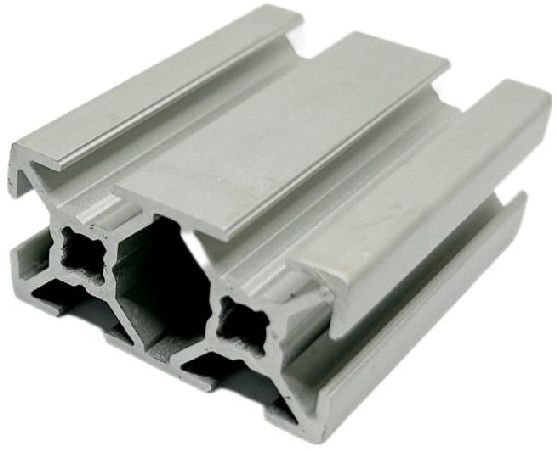

The Dexterous Aluminium Profile 20x40 T-Slot is a premium-quality structural framing solution engineered for durability, precision, and modular design flexibility. Made from high-strength Aluminium Alloy 6063-T6, it combines lightweight performance with exceptional mechanical properties, making it a preferred choice for engineers, manufacturers, and automation system builders.

With its cross-section of 20mm x 40mm, the profile offers an excellent balance between strength and weight—perfect for medium-duty frameworks and industrial structures. Weighing approximately 0.75 kg per meter (±100 grams), it delivers solid load-bearing capabilities without adding excessive weight. The profile surface area of 279 mm² ensures consistent rigidity, while its sleek, anodized finish enhances both appearance and corrosion resistance.

The profile’s slot width of 6.15 mm (±0.2 mm) is designed for M6 bolts and slot-6 T-nuts, ensuring compatibility with a wide range of connectors and accessories. The center hole diameter of Ø4.8 mm allows for M6 threading or self-tapping, enabling secure connections and versatile assembly options.

This extrusion offers superior mechanical performance, with a tensile strength of 205 MPa and yield strength of 160 MPa, guaranteeing high resistance to bending and torsional stress. The moment of inertia values (Ix = 4.6 cm, Iy = 1.2 cm) reflect its robust structural stability, ensuring minimal deflection even under moderate loads.

In controlled load tests, the Dexterous 20x40 profile demonstrates impressive strength-to-weight efficiency:

• 0.3 m span: 680 kg maximum load

• 0.5 m span: 400 kg maximum load

• 1 m span: 200 kg maximum load

These values are calculated under static loading conditions without safety factors. For practical engineering use, a safety factor of 1.5–2.5 is recommended based on application type.

The Dexterous Aluminium 20x40 T-Slot Profile is engineered for precision modular construction. It can be easily cut, drilled, or assembled using standard fasteners, eliminating the need for welding or painting. Its compatibility with Dexterous connectors, brackets, end caps, and joining plates makes it suitable for both simple frameworks and complex machine assemblies.

• Automation and robotic frames

• Machine guards and industrial enclosures

• Conveyor and material handling systems

• Workbenches and workstation structures

• Display racks and prototype assemblies

• Dimensions: 20mm x 40mm

• Weight: 0.75 kg/m ±100 g

• Profile Surface Area: 279 mm²

• Slot Width: 6.15 mm ±0.2 mm

• Center Hole Diameter: Ø4.8 mm (for M6 threading)

• Moment of Inertia: Ix = 4.6 cm, Iy = 1.2 cm

• Tensile Strength: 205 MPa

• Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Maximum Load Capacity:

  • 0.3 m span – 680 kg

  • 0.5 m span – 400 kg

  • 1 m span – 200 kg

• Standard Length: 6 meters (Custom cutting available upon request)

• Lightweight yet rigid design for versatile use

• Corrosion-resistant anodized surface finish

• Easy to assemble using T-slot connectors

• Compatible with slot-6 M6 fasteners

• Ideal for automation and modular structures

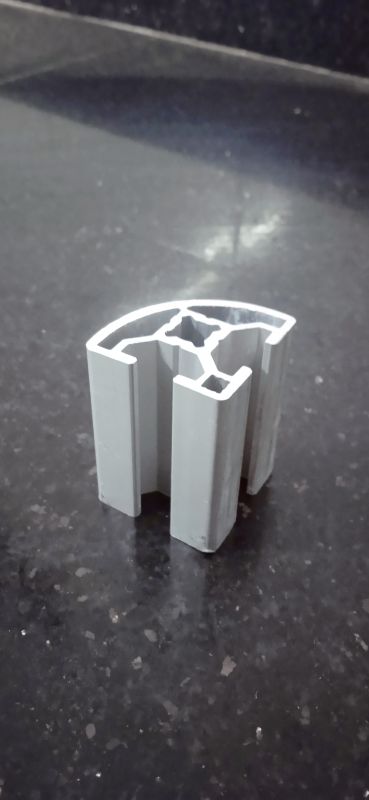

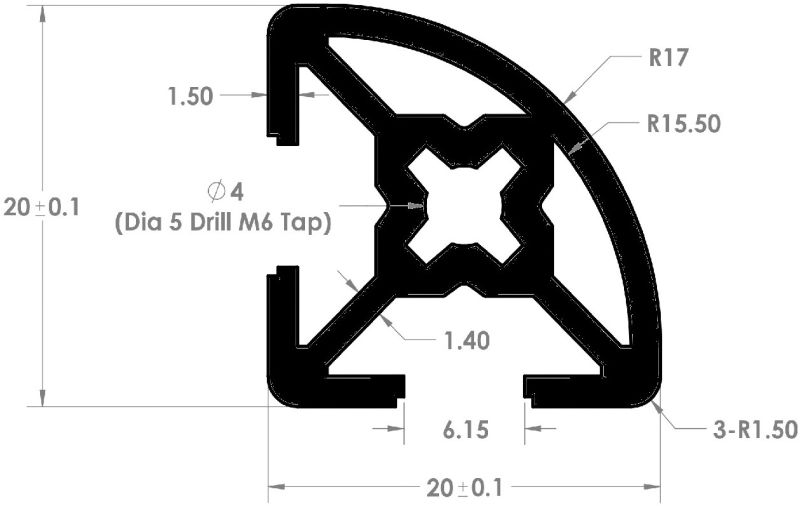

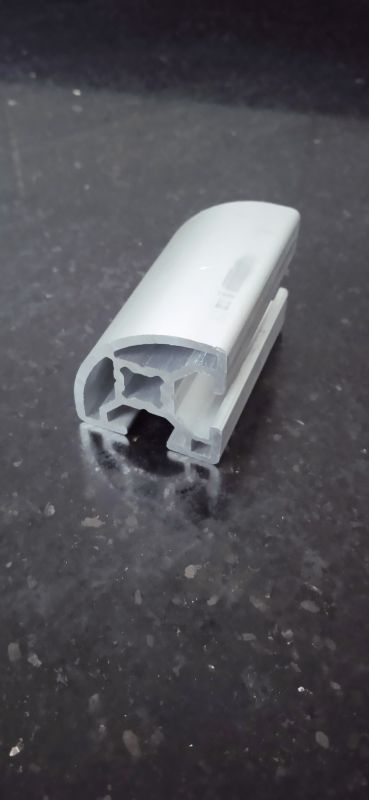

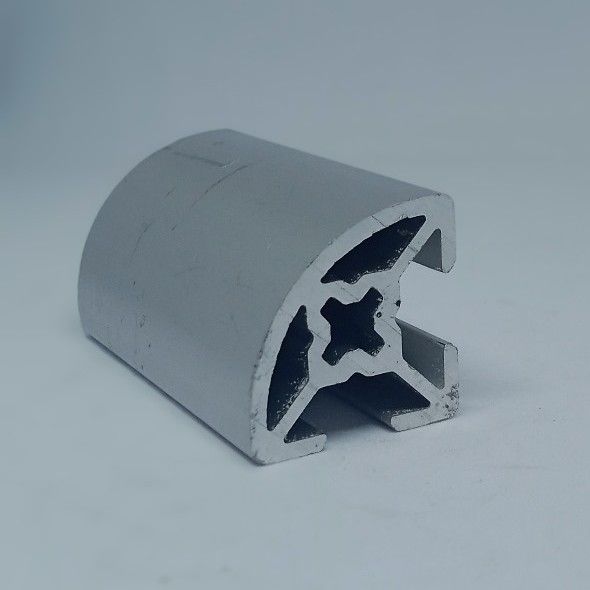

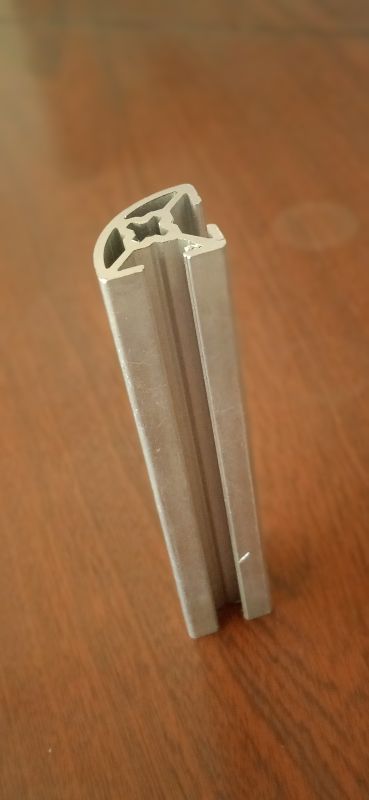

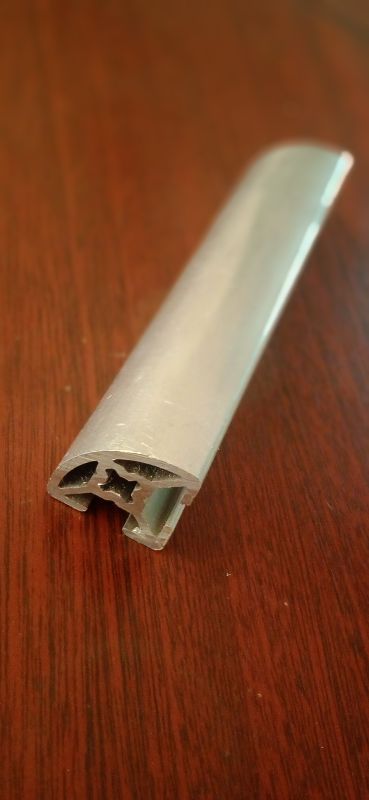

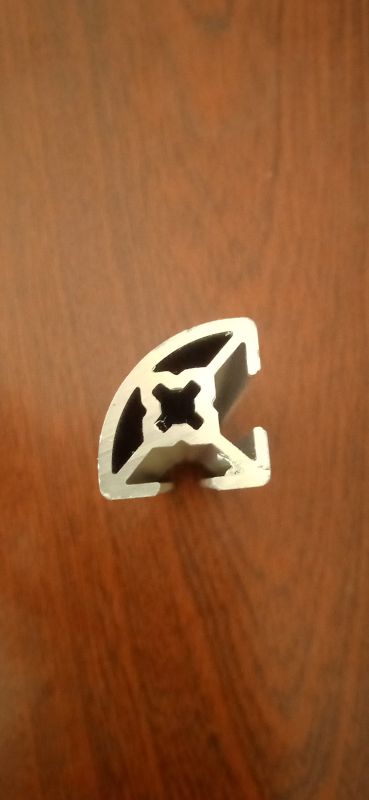

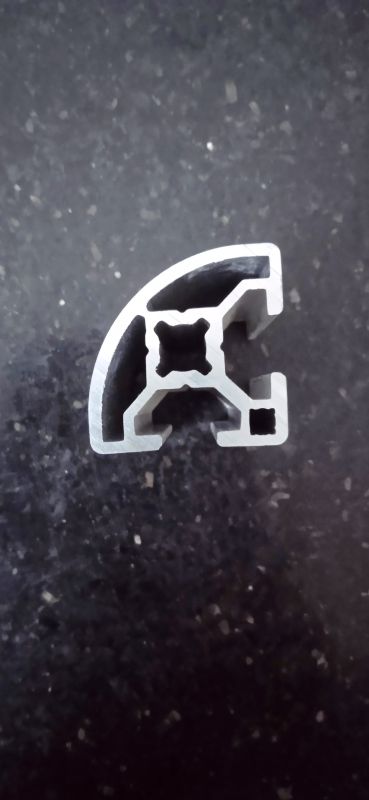

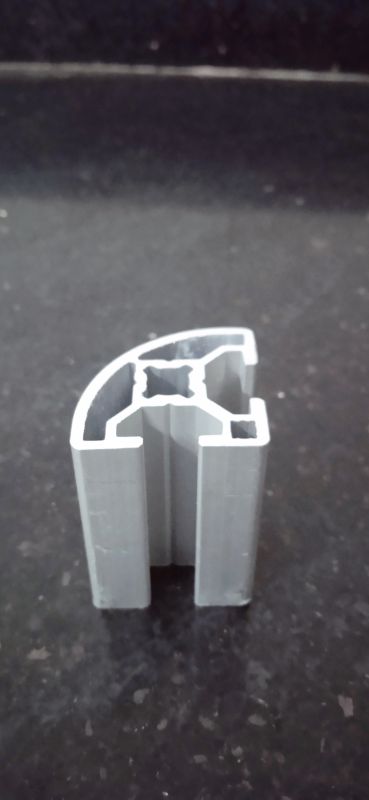

The Dexterous Aluminium Profile 20x20 Radius is a precision-engineered modular framing component designed for light-duty applications where aesthetic appeal and functional strength are equally important. Crafted from premium-grade Aluminium Alloy 6063-T6, this profile offers superior corrosion resistance, excellent machinability, and long-lasting durability, making it a popular choice in automation, prototyping, and custom display structures.

With a 20mm x 20mm radius-edged cross-section, this profile combines smooth contours with modern design, giving projects a professional finish. It weighs approximately 0.429 kg per meter (±100 grams), maintaining a lightweight yet sturdy framework suitable for smaller assemblies. The profile surface area of 297.18 mm² ensures structural stability, while the rounded edges provide a refined and ergonomic appearance—perfect for visible installations in offices, labs, and showrooms.

The slot width of 6.15 mm (±0.2 mm) is compatible with M6 T-nuts and slot-6 fasteners, enabling easy integration with other modular aluminium components. The center hole diameter of Ø4.8 mm supports M6 threading or self-tapping screws, offering strong fastening points without additional machining. The smooth slot design ensures quick assembly, easy reconfiguration, and compatibility with the complete range of Dexterous Aluminium accessories.

The Dexterous 20x20 Radius Profile demonstrates excellent mechanical performance with a tensile strength of 205 MPa and yield strength of 160 MPa, ensuring reliability in both static and dynamic applications. The moment of inertia values—Ix = 0.65 cm and Iy = 0.65 cm—highlight its balanced stiffness across both axes, making it ideal for small but structurally demanding builds.

In static load testing, the profile achieves the following maximum safe load capacities:

• 0.3 m span: 1230 kg

• 0.5 m span: 730 kg

• 1.0 m span: 360 kg

These figures represent static conditions without applied safety factors. For practical engineering use, a safety factor between 1.5 and 2.5 is typically recommended depending on environmental and operational factors.

Anodized with a premium matte silver finish, the surface provides superior corrosion resistance, prevents oxidation, and enhances overall appearance. This finish also improves wear resistance, making it suitable for cleanroom environments, automation labs, and aesthetically oriented applications.

Applications

• Aesthetic machine frames and decorative structures

• Laboratory and R&D enclosures

• Display and exhibition stands

• DIY projects and small automation setups

• Lightweight framing for guards and panels

Technical Specifications

• Dimensions: 20mm x 20mm Radius

• Weight: 0.429 kg/m ±100 g

• Profile Surface Area: 297.18 mm²

• Slot Width: 6.15 mm ±0.2 mm

• Center Hole Diameter: Ø4.8 mm (for M6 threading)

• Moment of Inertia: Ix = 0.65 cm, Iy = 0.65 cm

• Tensile Strength: 205 MPa

• Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Estimated Maximum Safe Load:

  • 0.3 m – 1230 kg

  • 0.5 m – 730 kg

  • 1.0 m – 360 kg

• Standard Length: 6 meters (Custom cutting available)

Key Benefits

• Elegant radius-edge design for a smooth and professional appearance

• Lightweight yet strong structural integrity

• Compatible with slot-6 T-nuts and M6 fasteners

• Ideal for clean and aesthetic industrial or office environments

• Modular, corrosion-resistant, and easy to assemble

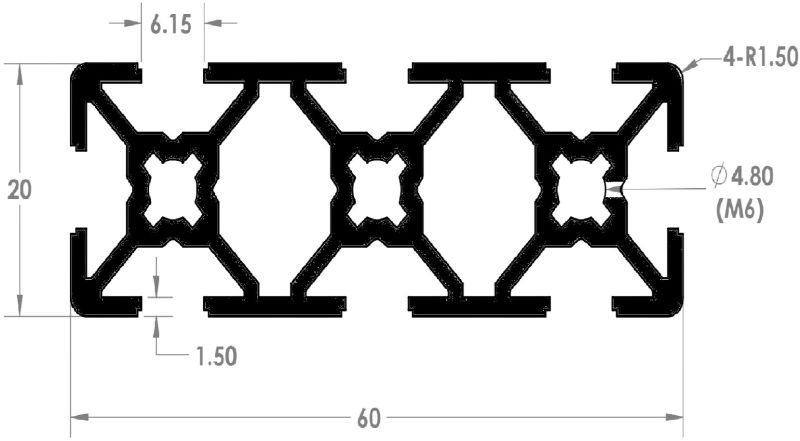

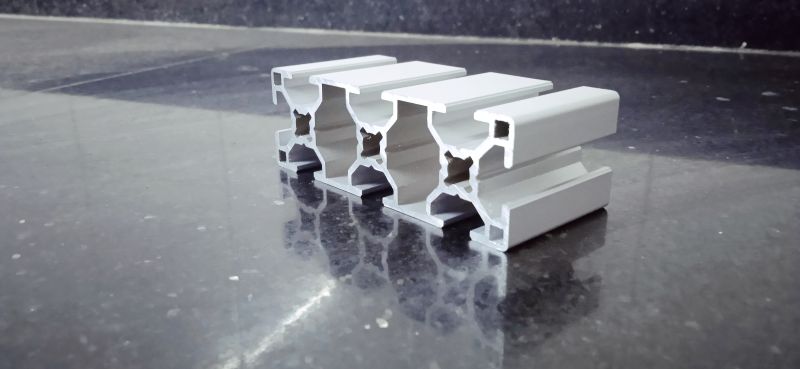

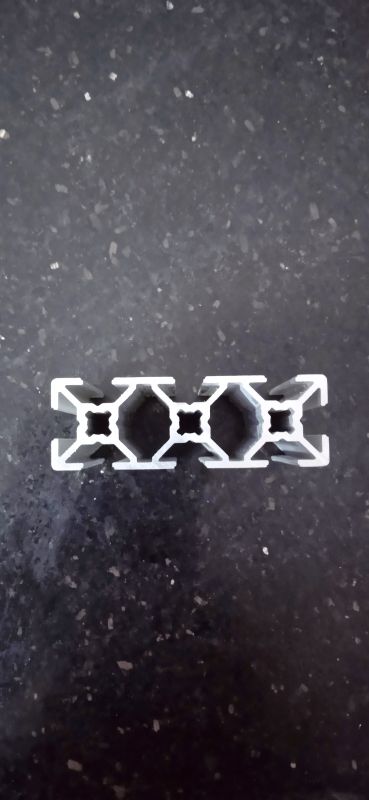

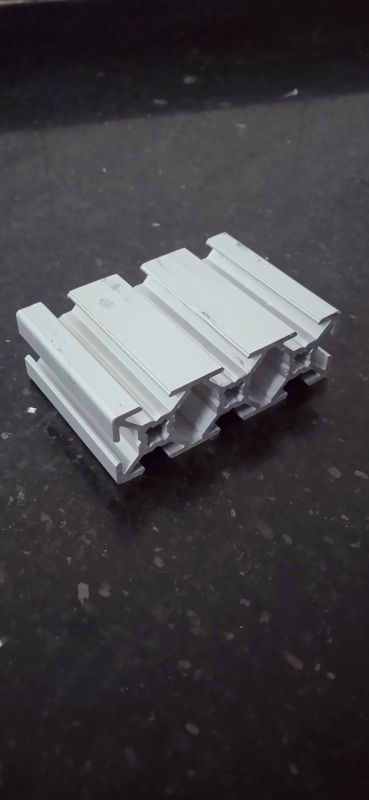

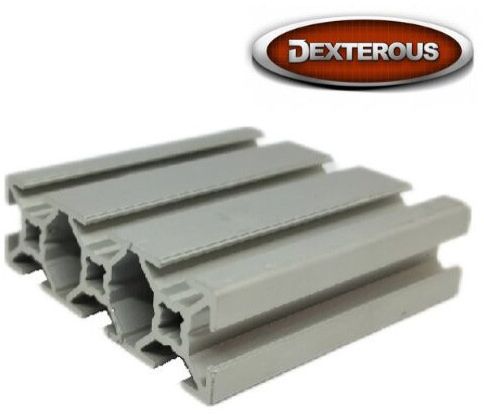

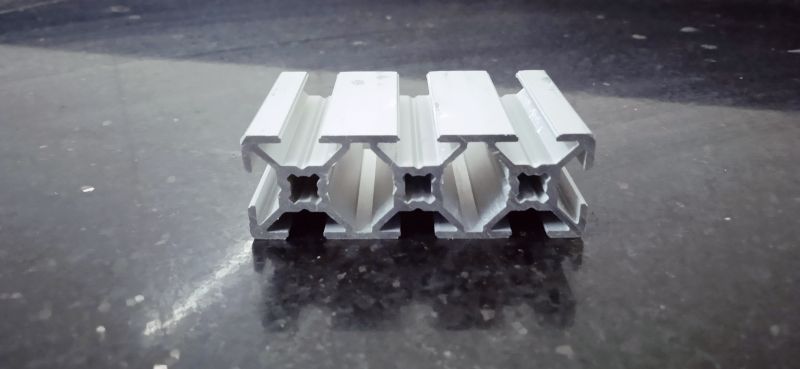

The Dexterous Aluminium Profile 20x60 T-Slot is a precision-engineered extrusion designed for medium-duty industrial and automation applications. Manufactured using Aluminium Alloy 6063-T6, it provides superior strength, durability, and versatility while maintaining lightweight characteristics. This profile is ideal for creating modular conveyor frames, workstations, and machine enclosures.

The 20mm x 60mm cross-section offers a balanced ratio of rigidity to weight, enabling designers to build robust yet adaptable structures. With a weight of 1.09 kg/m (±100g) and a surface area of 406.3 mm², it provides reliable performance in dynamic environments. The moment of inertia values—Ix = 13.9 cm and Iy = 13.9 cm—highlight its exceptional resistance to bending and deflection, ensuring long-lasting structural integrity.

The slot width of 6.15 mm (±0.2) accommodates M6 T-nuts and fasteners, offering broad compatibility with the entire Dexterous accessory ecosystem. The center hole diameter (Ø4.8 mm) supports M6 threading or self-tapping, providing secure fastening options.

With a tensile strength of 205 MPa and yield strength of 160 MPa, this profile excels in supporting automation and material handling systems. The maximum safe load capacity is rated at 600 kg (0.3m span), 360 kg (0.5m span), and 240 kg (1m span) under static conditions. For safety-critical designs, a safety factor of 1.5–2.5 is recommended.

Its anodized silver finish enhances corrosion resistance, making it ideal for cleanroom, factory, and laboratory environments. Installation is simple—no welding or painting required. The T-slot modular design allows quick assembly, flexibility, and easy reconfiguration.

Applications:

• Conveyor and guiding systems

• Workbenches and assembly tables

• Display and exhibition stands

• Machine guards and frames

Specifications:

• Dimensions: 20mm x 60mm

• Weight: 1.09 kg/m ±100 g

• Slot Width: 6.15 mm ±0.2

• Center Hole: Ø4.8 mm (M6 compatible)

• Ix = 13.9 cm Iy = 13.9 cm

• Max Load: 600 kg (0.3m) 360 kg (0.5m) 240 kg (1m)

• Material: Aluminium 6063-T6 (Anodized Finish)

• Standard Length: 6 meters

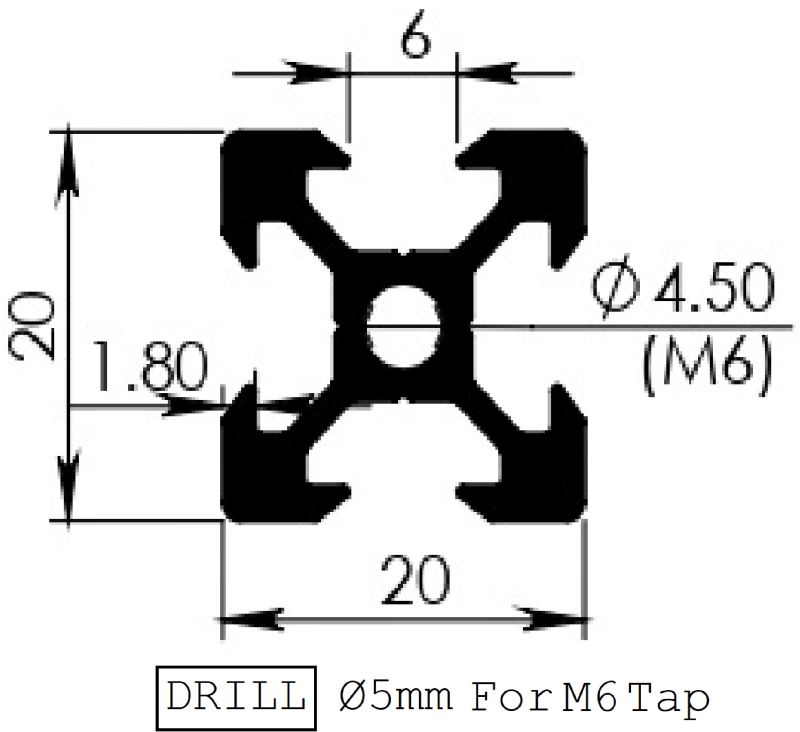

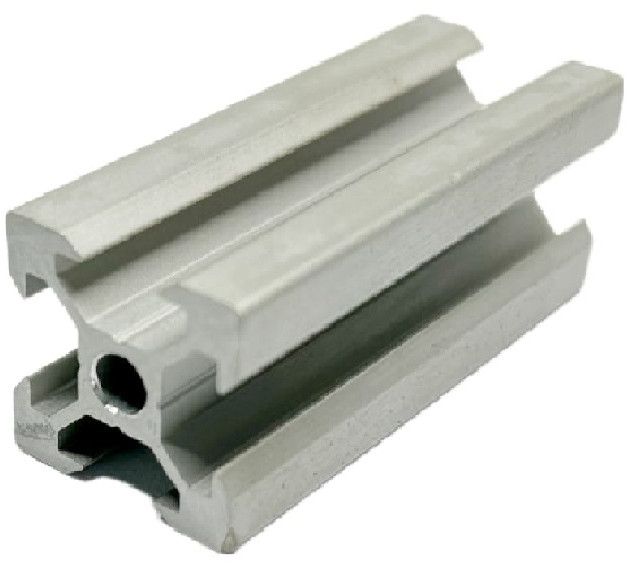

The Dexterous Aluminium Profile 20x20 V-Slot is a lightweight yet robust extrusion designed for high-precision motion systems, 3D printers, CNC routers, and automation equipment. Crafted from Aluminium Alloy 6063-T6, it delivers durability, dimensional stability, and smooth linear movement.

Its 20mm x 20mm V-grooved cross-section allows V-wheels to roll smoothly along the slot, making it perfect for linear motion applications. The weight of 0.442 kg/m (±100g) ensures easy handling and transport. The slot width (6.15 mm ±0.2) accepts M6 T-nuts, and the center hole (Ø4.8 mm) fits M6 threading for secure mechanical connections.

The moment of inertia values (Ix = 0.7 cm, Iy = 0.7 cm) demonstrate balanced stiffness, while the tensile strength of 205 MPa and yield strength of 160 MPa guarantee mechanical reliability. The maximum load-bearing capacity is 1160 kg at 0.3m, 690 kg at 0.5m, and 340 kg at 1m span (under static load conditions).

With its anodized matte silver finish, this profile provides corrosion resistance and professional appearance. Its V-slot design offers dual functionality—serving both as a structural frame and a linear motion guide.

Applications:

• 3D printers and CNC machine frames

• Camera sliders and track systems

• Automation and robotic projects

• DIY modular frames

Specifications:

• Dimensions: 20x20mm

• Weight: 0.442 kg/m ±100g

• Slot Width: 6.15 mm ±0.2

• Center Hole: Ø4.8 mm

• Ix = Iy = 0.7 cm

• Max Load: 1160 kg (0.3m) 690 kg (0.5m) 340 kg (1m)

• Material: Aluminium 6063-T6 (Anodized Finish)

• Standard Length: 6 meters

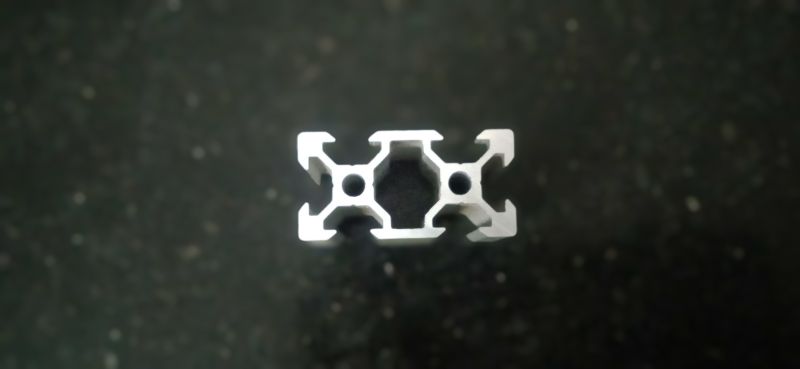

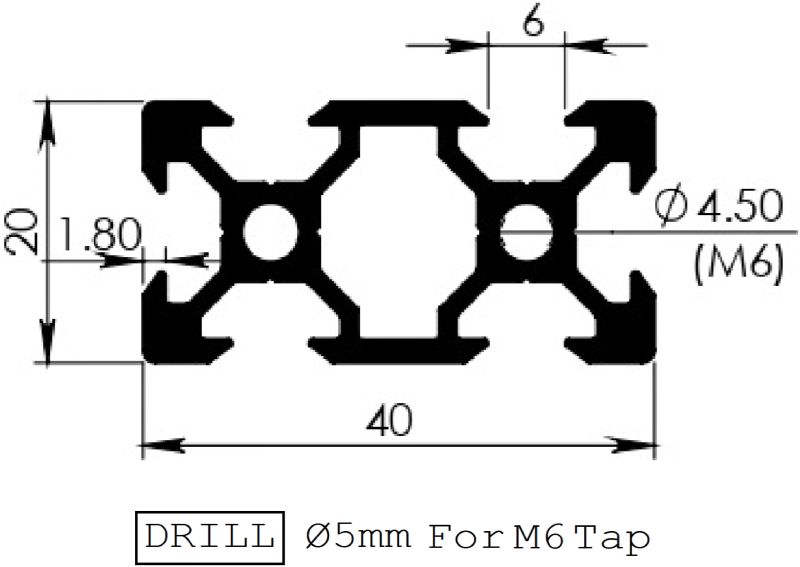

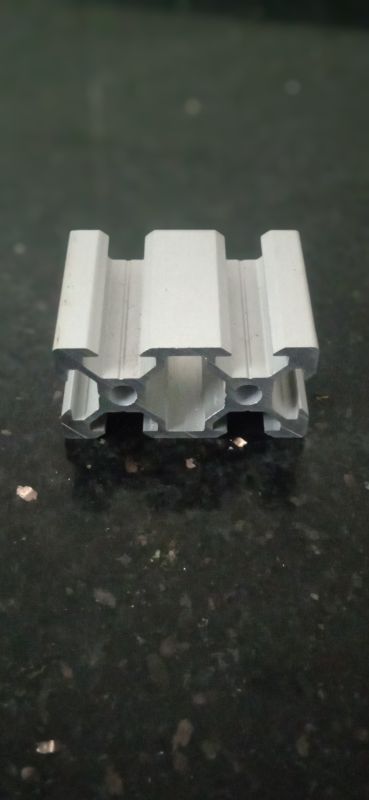

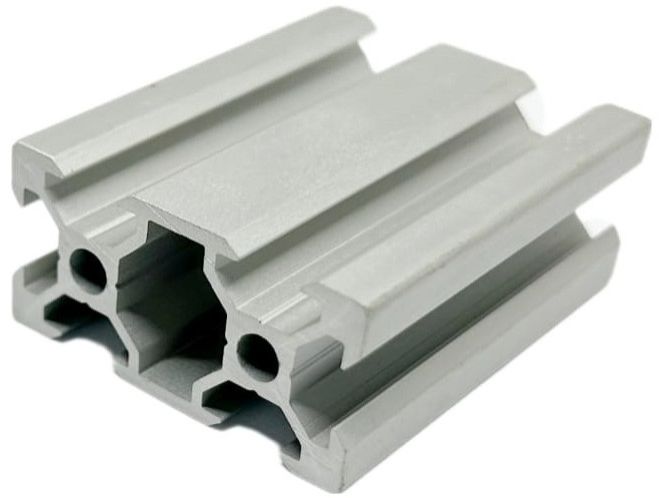

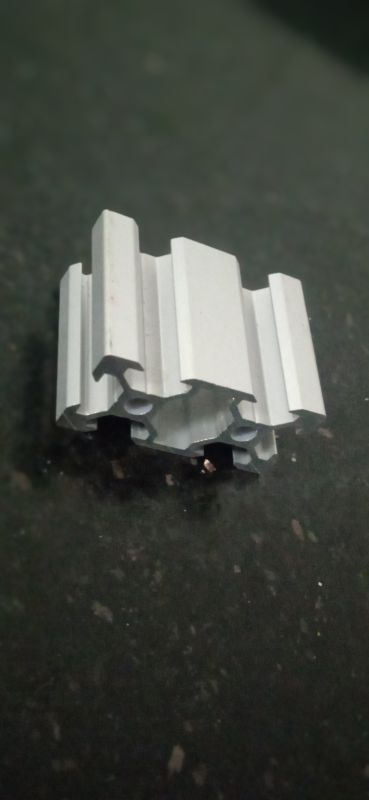

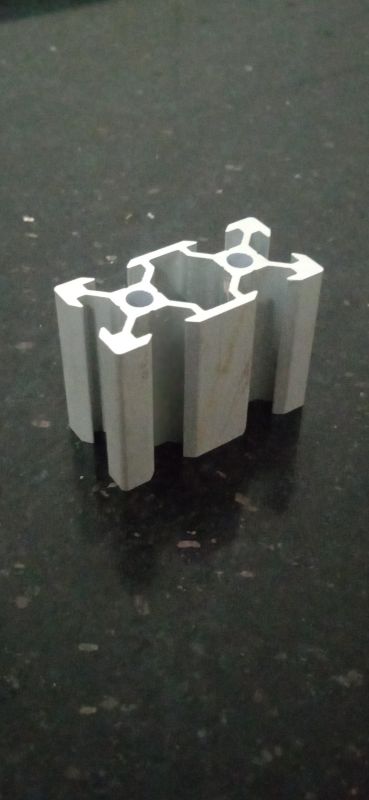

The Dexterous Aluminium Profile 20x40 V-Slot is engineered for superior performance in CNC frames, 3D printers, linear motion systems, and automation projects. Built from Aluminium Alloy 6063-T6, it offers high stiffness, light weight, and corrosion resistance.

Its 20mm x 40mm V-shaped structure allows precision linear motion using V-wheels or carriage systems. The profile weighs 0.75 kg/m (±150g) and provides excellent rigidity with a moment of inertia of Ix = 4.6 cm and Iy = 1.2 cm. The slot width (6.15 mm) fits M6 fasteners, while the center hole Ø4.8 mm supports threaded or self-tapping connections.

With tensile strength of 205 MPa and yield strength of 160 MPa, it withstands industrial loads effectively. It supports up to 610 kg (0.3m span), 360 kg (0.5m span), and 180 kg (1m span) safely. The V-groove slot enables both assembly flexibility and motion guidance, eliminating the need for linear rails.

The anodized finish ensures excellent wear and corrosion resistance, ideal for environments requiring high precision and cleanliness.

Applications:

• CNC machine and 3D printer frames

• Linear motion and automation setups

• Camera sliders and track systems

• Robotic prototypes and fixtures

Specifications:

• Dimensions: 20mm x 40mm

• Weight: 0.75 kg/m ±150g

• Slot Width: 6.15 mm ±0.2

• Center Hole: Ø4.8 mm (M6)

• Ix = 4.6 cm Iy = 1.2 cm

• Max Load: 610 kg (0.3m) 360 kg (0.5m) 180 kg (1m)

• Material: Aluminium 6063-T6 (Anodized)

• Length: 6 meters (custom cut available)

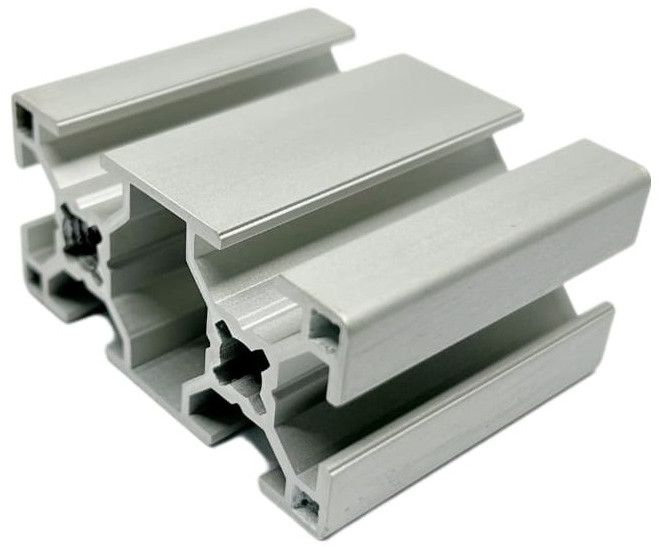

The Dexterous Aluminium Profile 30x60 is a medium-to-heavy-duty modular extrusion suitable for automation and industrial frameworks. Manufactured using 6063-T6 aluminium, it combines strength, corrosion resistance, and precision.

With dimensions of 30 × 60 mm and a weight of 1.40 kg/m (±150 g), this profile delivers excellent rigidity with a moment of inertia of Ix = 18.8 cm Iy = 6.0 cm. The slot width 8.2 mm (±0.2) accommodates M8 bolts and T-nuts, and the Ø6.9 mm center hole supports M8 threading.

Load capacities:
• 0.3 m – 545 kg
• 0.5 m – 325 kg
• 1 m – 160 kg

Applications:

• Conveyor and guiding systems

• Robotics and automation assemblies

• Machine frames and supports

• Workbench construction

Key Specs:
Material 6063-T6 Weight 1.40 kg/m Slot 8.2 mm Surface 1002 mm² Tensile 205 MPa Yield 160 MPa Length 6 m

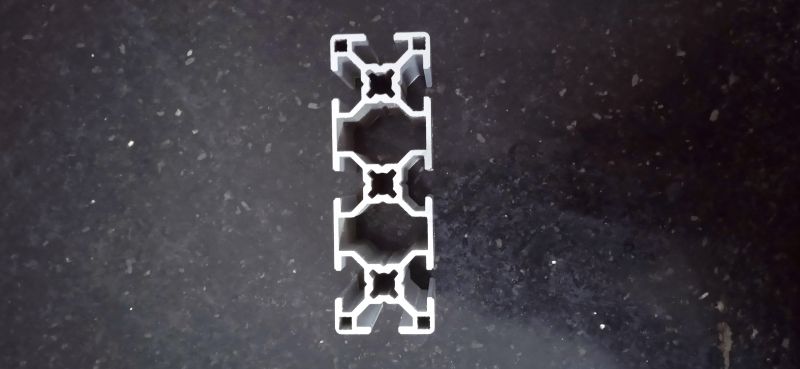

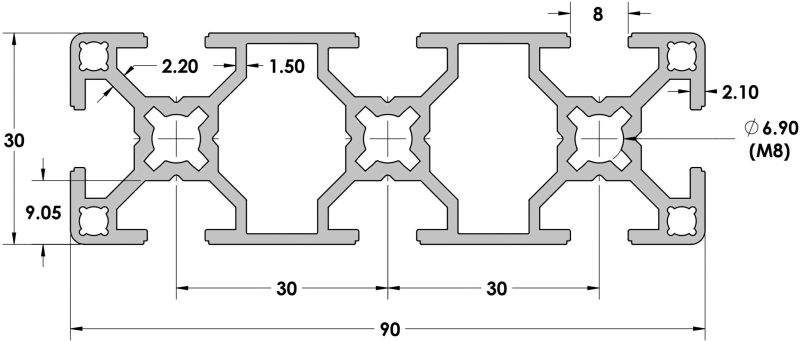

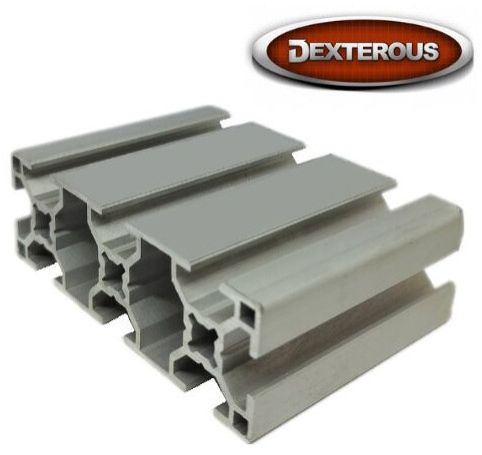

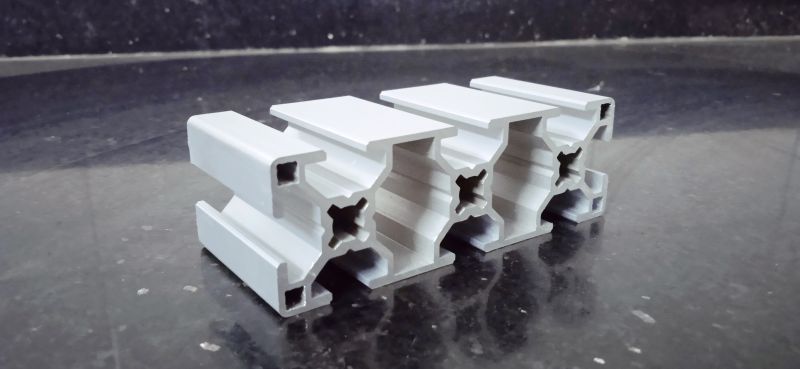

The Dexterous Aluminium Profile 30x90 is a heavy-duty structural profile designed for applications requiring exceptional strength and rigidity. Made from high-grade Aluminium Alloy 6063-T6, it provides outstanding mechanical performance, dimensional stability, and corrosion resistance — making it ideal for large automation frames, machine guards, and industrial structures.

With a cross-section of 30mm × 90mm, this profile offers an ideal combination of durability and modular flexibility. Weighing 1.99 kg/m (±150 g) and featuring a profile surface area of 739 mm², it provides excellent load-bearing capability for its weight class. The moment of inertia (Ix = 58.2 cm Iy = 7.5 cm) ensures outstanding bending resistance, while maintaining easy machinability for fabrication.

The slot width (8.2 mm ±0.2) is compatible with M8 fasteners and slot-8 connectors, while the Ø6.9 mm center hole allows M8 threading. With a tensile strength of 205 MPa and yield strength of 160 MPa, the profile can withstand demanding mechanical stresses.

Maximum safe load capacity:
• 0.3 m span – 820 kg
• 0.5 m span – 495 kg
• 1 m span – 247 kg

The anodized finish offers superior corrosion protection and a sleek silver aesthetic. Its T-Slot design ensures modularity and easy re-assembly without welding.

Applications:

• Heavy-duty machine frames

• Automation and robotic platforms

• Workstations and assembly tables

• Safety enclosures and guards

Technical Data:
Weight 1.99 kg/m Slot 8.2 mm Ix 58.2 cm Iy 7.5 cm Material 6063-T6 Length 6 m

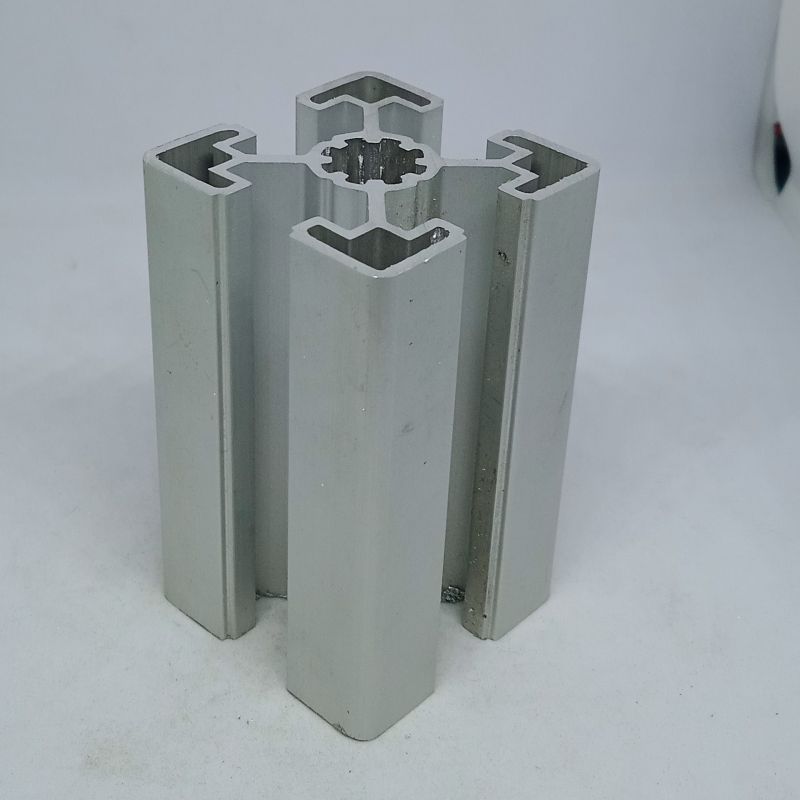

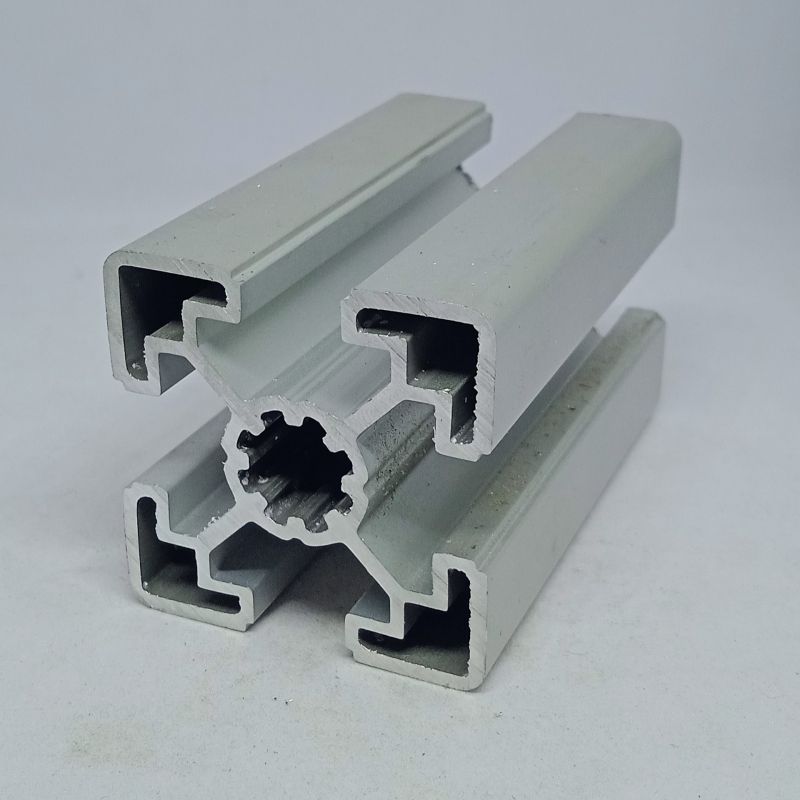

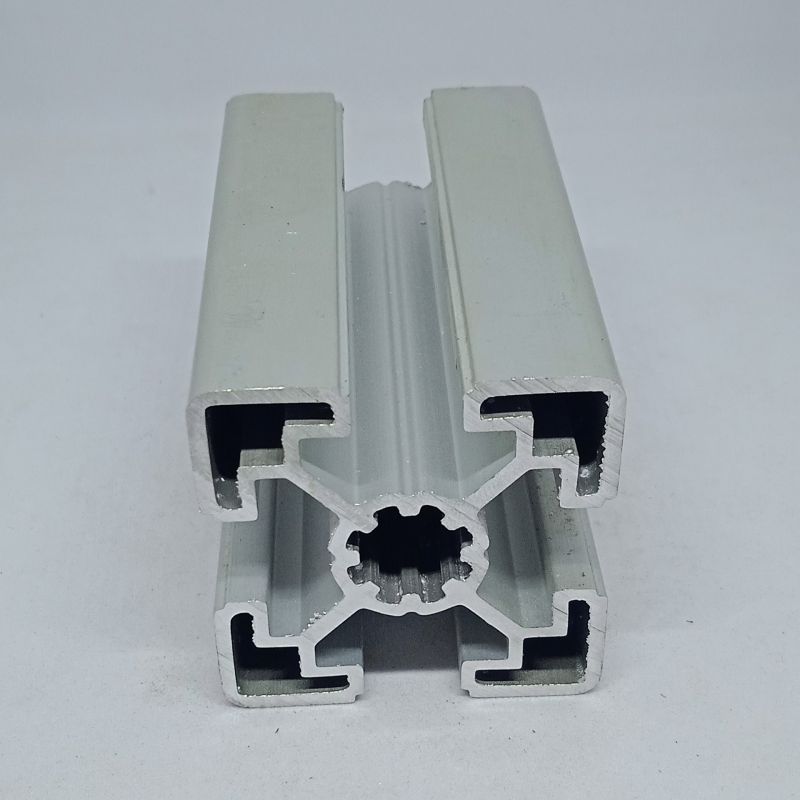

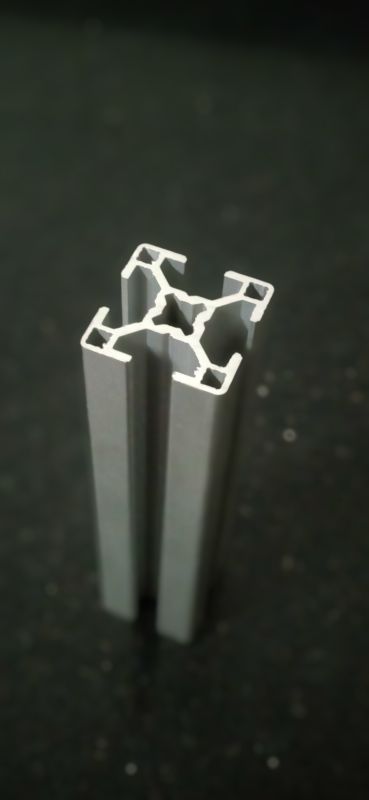

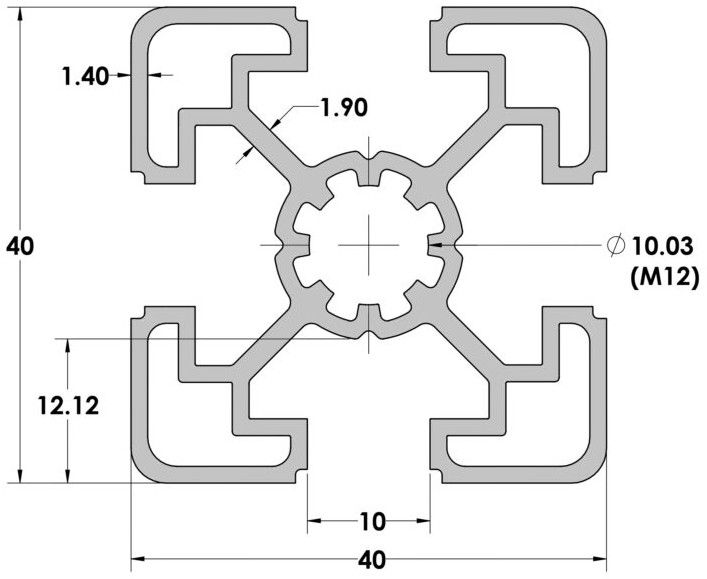

The Dexterous Aluminium Profile 40x40 is one of the most widely used structural framing profiles for industrial, automation, and modular system applications. Manufactured from premium Aluminium Alloy 6063-T6, it combines outstanding strength, rigidity, and corrosion resistance with lightweight versatility, making it a preferred choice for engineers and fabricators worldwide.

With a cross-sectional dimension of 40mm x 40mm, this profile offers the perfect balance between compactness and stability. Weighing approximately 1.16 kg/m (150 grams), it provides exceptional load-bearing strength without unnecessary bulk. Its surface area of 430 mm ensures high stiffness and excellent mechanical performance across various load conditions.

The Dexterous 40x40 T-Slot Profile features a slot width of 10.2 mm (0.2), designed for use with M12 T-nuts, bolts, and fasteners, ensuring compatibility with a broad range of aluminium profile accessories. The center hole diameter of 10 mm allows for M12 threading or self-tapping, enabling quick and secure connections during assembly.

Engineered for demanding environments, this profile offers a tensile strength of 205 MPa and a yield strength of 160 MPa, ensuring reliable performance under mechanical stress. Its moment of inertia (Ix = 7.9 cm, Iy = 7.9 cm) provides consistent resistance to bending and torsional forces, making it suitable for both vertical and horizontal load applications.

In static load testing, the profile supports up to:

• 684 kg at a 0.3 m span

• 410 kg at a 0.5 m span

• 205 kg at a 1 m span

These values are under static loading conditions without applied safety factors. For engineering design, a safety factor between 1.5 and 2.5 is recommended depending on the application.

The anodized finish gives the profile an elegant, matte silver appearance that resists corrosion, oxidation, and wear. This ensures long-lasting performance even in harsh industrial environments while maintaining a clean, professional aesthetic.

Its modular T-slot system enables quick and flexible assembly using standard Dexterous brackets, connectors, and accessorieseliminating the need for welding or painting. The reusability of the system allows easy modification or reconfiguration of structures, saving both time and material costs.

• Medium to heavy-duty machine frames

• Workbenches and industrial tables

• Machine guards and safety enclosures

• Conveyor and automation systems

• Modular structures and laboratory setups

• Dimensions: 40mm x 40mm

• Weight: 1.16 kg/m 150 g

• Profile Surface Area: 430 mm

• Slot Width: 10.2 mm 0.2

• Center Hole Diameter: 10 mm (for M12 threading)

• Moment of Inertia: Ix = 7.9 cm, Iy = 7.9 cm

• Tensile Strength: 205 MPa

• Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Maximum Safe Load:

  • 0.3 m span 684 kg

  • 0.5 m span 410 kg

  • 1 m span 205 kg

• Standard Length: 6 meters (custom cutting available)

High strength-to-weight ratio for versatile use
Modular T-slot design no welding required
Corrosion-resistant anodized surface
Compatible with standard M12 accessories
Ideal for automation and machine frame systems
