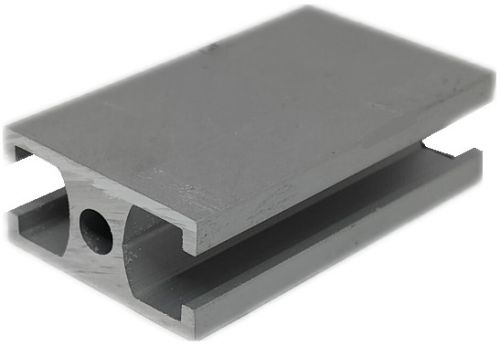

15x30 Aluminium Profile, Color : Silver, Brand Name : Dexterous

The Dexterous Aluminium Profile 15x30 is a high-quality, lightweight, and versatile structural framing component designed for a wide range of industrial and automation applications. Manufactured using premium Aluminium Alloy 6063-T6, this profile offers excellent mechanical strength, corrosion resistance, and dimensional accuracy, making it suitable for machine frames, enclosures, display structures, and lightweight frameworks.

With its cross-sectional size of 15mm x 30mm, the profile provides a compact yet sturdy structure that is ideal for small to medium-duty assemblies. It features a slot width of 6mm (±0.2 mm), allowing easy compatibility with standard slot-6 accessories such as T-nuts, bolts, and angle brackets. The center hole diameter of Ø5.5 mm is suitable for M5 threading or self-tapping, enabling quick and secure fastening without additional machining.

Weighing approximately 0.567 kg per meter (±100 grams), this profile combines low weight with strong structural support. The profile surface area of 211 mm² ensures excellent rigidity and load-bearing efficiency, providing the strength needed for various automation and mechanical structures. Its moment of inertia values (Ix = 0.8 cm⁴, Iy = 1.6 cm⁴) demonstrate balanced stiffness, making it capable of handling both vertical and horizontal loads effectively.

The profile has a tensile strength of 205 MPa and yield strength of 160 MPa, ensuring long-lasting performance even under continuous operation. It is anodized to a smooth, corrosion-resistant finish that provides a professional and aesthetic appearance suitable for cleanroom, industrial, and laboratory environments. The anodized coating also enhances resistance to wear, oxidation, and environmental factors.

The Dexterous 15x30 Aluminium Profile is engineered for efficiency and flexibility. It can be easily cut, drilled, and assembled using modular connection systems without welding or complex tools, making it ideal for adjustable and reusable structures. Its high-quality surface finish and precise slot dimensions enable seamless integration with all Dexterous T-slot components and accessories, ensuring reliable assembly every time.

In static load tests, the maximum safe load capacity is measured as 260 kg at a 0.3-meter span, 155 kg at a 0.5-meter span, and 75 kg at a 1-meter span. These values assume static load conditions without safety factors. For practical applications, a safety factor of 1.5 to 2.5 is recommended based on usage type and dynamic conditions.

• Lightweight framing structures

• Machine enclosures and guards

• Automation equipment and workstations

• Display and exhibition stands

• Laboratory and R&D setups

• Dimensions: 15mm x 30mm

• Weight: 0.567 kg/m ±100 g

• Slot Width: 6mm ±0.2 mm

• Center Hole: Ø5.5 mm (for M5 threading/self-tapping)

• Moment of Inertia: Ix = 0.8 cm⁴, Iy = 1.6 cm⁴

• Profile Surface Area: 211 mm²

• Tensile Strength: 205 MPa

• Yield Strength: 160 MPa

• Material: Aluminium Alloy 6063-T6 (Anodized Finish)

• Estimated Max Load:

  • 0.3 m span – 260 kg

  • 0.5 m span – 155 kg

  • 1 m span – 75 kg

• Standard Length: 6 meters (Custom cutting available)
