Empcentauri S. R. O.

Klatovy, Czech Republic

• MOQ 1 Piece(s)
• ColorRed

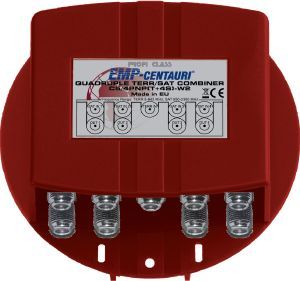

5in/4out TERR and SAT quadruple combiner designed for adding terrestrial signals to all outputs of Quad LNB (Monoblock Quad LNB). Satellite inputs transmit DC voltage, 22 kHz and DiSEqC commands from respective outputs. Terrestrial input is DC isolated.       Parameter Condition Value Frequency range Sat. 950-2300 MHz Terr. 5-862 MHz Insertion loss Sat. 2 dB avg Terr. 9 dB avg Isolation between sat. inputs   30 dB min Dimensions (w, d, h)   11.2 x 11.2 x 4.9 cm Temperature range   -30 ~ +70 °C

• MOQ 1 Piece(s)

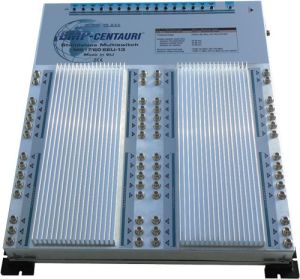

17in/60out standalone multiswitch for distribution of signals from terrestrial broadcasting and 4 satellites (16 sat if inputs) for up to 60 users. switchable active/passive terrestrial input. 12v dc supply for optional terrestrial preamlifier. External power supply (included). for use with quattro lnb only!       parameter condition value frequency range lnb inputs 950-2150 mhz terr. Input 5-840 mhz (passive) 40-840 mhz (active) outputs 5-2150 mhz (passive) 40-2150 mhz (active) control   diseqc 1.0 (2.0) insertion loss sat. 10 db (950 mhz) ~ 0 db (2150 mhz) terr. Passive 27 ± 3 db terr. Active 2 ± 3 db gain sat. Inputs isolation between v/h polarisations 20 db min between low/high bands 20 db min between sat. Systems 25 db min maximum input level* sat. 80 dbµv avg terr. 85 dbµv avg (active) maximum output level* sat. 70 db (950 mhz) ~ 80 db (2150 mhz) terr. 87 dbµv avg (active) power consumption from each receiver 100 ma (18 v) from external power supply 14 w (passive) 15 w (active) + lnb terr. Preamplifier supply   150 ma max (12 v dc) dimensions (w, d, h)   35.5 x 44.0 x 5.0 cm temperature range   -25 ~ +50 °c

• MOQ 1 Piece(s)

4in/4out cascadable amplifier with sloped gain and high pout for distribution of terrestrial & satellite signals from 1 satellite position (4 polarities). satellite trunk lines are dc transparent and supply respective sat amplifiers with dc power (supply of 12 to 18 v dc is satellite input of connected multiswitch or dc inserter). If there is no voltage on any of amplifier's inputs and outputs, the amplifier may be supplied from an external power supply (recommended pa12) via socket dc2.1. This voltage then appears on each input and output of the amplifier and can supply other devices in the trunk or the lnb. terrestrial line input-output is dc blocked, terrestrial amplifier is dc supplied from satellite line 3. the amplifier is designed in such a way that individual units can be stacked into 2, 3 or 4 satellite amplifying block using extension module a4/4pus-3.       parameter condition value frequency range sat. Trunks 950-2300 mhz terr. Trunk 40-862 mhz insertion gain sat. 10-15 db avg terr. 10-15 db avg isolation between trunks   25 db avg maximum input level* sat. 103-98 dbµv avg terr. 99-94 dbµv avg maximum output level* sat. 113 dbµv avg terr. 109 dbµv avg power consumption via coaxial cables or dc input 5 x 70 ma (12 v) dimensions (w, d, h)   12.7 x 10.4 x 4.1 cm temperature range   -30 ~ +70 °c

• MOQ 1 Piece(s)

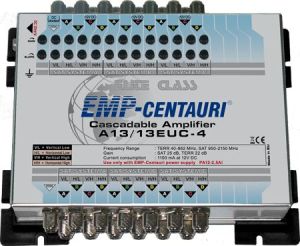

13in/13out cascadable amplifier with adjustable gain and slope steepness for distribution of terrestrial & satellite signals from 3 satellite position (12 polarities). The amplifier is powered from power supply PA12 2A (included). The voltage appears on each Vert/High input and can supply the LNB or other devices in the cascade. All other trunk lines are DC blocked. The amplifier cannot be powered from follow-up multiswitches.       Parameter Condition Value Frequency range Sat. trunks 950-2150 MHz Terr. trunk 40-862 MHz Insertion gain Sat. 25 dB avg Terr. 22 dB avg Gain control range   10 dB avg Isolation between trunks   25 dB min Maximum input level* Sat. 90 dBµV Terr. 85 dBµV Maximum output level* Sat. 115 dBµV Terr. 107 dBµV Current consumption   1100 mA (12V DC) Dimensions (w, d, h)   18.6 x 14.6 x 5.5 cm Temperature range   -25 ~ +50 °C

• MOQ 1 Piece(s)

17in/10out standalone multiswitch for distribution of 16 SAT IF signals including UHF band for up to 10 users. External data link 1 Gbit/s (RJ45), 10 coaxial links 100 Mbit/s. Power supply PA12 F is included in the package. Any user output of multiswitch can be terminated with standard tv/sat wall socket, or with NS01-S1 wall socket enabling data transmission through coaxial cable alongwith satellite and terrestrial signals. The unused user outputs dont need to be terminated with 75 Ohm loads.

• MOQ 1 Piece(s)

utp/coaxial ethernet switch, 100 mbit/s. provides 3 standard fast ethernet rj-45 sockets plus 2 coaxial ports (f-sockets). Requires external power supply pa12 (not included in the package), or remote powering through coaxial cable. should be used in pairs or together with other emp-centauri net class devices.       parameter condition value frequency range tv 470-862 mhz data rj45 (3x) 10base-t (10 mbit/s), 100base-tx (100 mbit/s) f-socket (2x) 10base-t (10 mbit/s), 100base-tx (100 mbit/s) insertion loss tv 1 db avg maximum input level tv 90 dbµv maximum output level tv 89 dbµv current consumption max. 100 ma (12 v) dimensions (w, d, h)   14.8 x 8.9 x 5.4 cm temperature range   -25 ~ +60 °c

• MOQ 1 Piece(s)

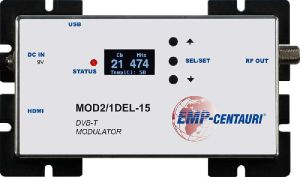

the modulator has one hdmi input and one dvb-t/atsc/dtmb standard rf output. It also supports playback from pc via usb to dvb-t/atsc/dtmb. designed for real time encoding of any hdcp compliant signal and sending it out via built in frequency dvb modulator. Produces excellent quality signal output with 30 db mer, compatible with a variety digital tv tuners. the model mod2/1deh-15 offers high level output signal. external power supply (included).   parameter condition value frequency range     output 300-900 mhz   (8 mhz step) output level mod2/1del-15 75 dbµv inputs   usb hdmi 1.2 itu bt.656/bt.1120 (8bit/10bit) support rgb or ycbcr colour space resolution 480i/480p/576p/720p/1080p output tv standards dvb-t, atsc, dtmb modulation qpsk, 16-qam, 32-qam, 64-qam, 8 vsb, qam4-nr carrier 2k, 4k, 8k, single/multi guard interval 1/4, 1/8, 1/16, 1/32 output bandwidth 2~8 mhz connector f audio codec mpeg-1   video codec mpeg-2 main@main, main@high 480i/480p/576p/720p/1080p h.264 main@main 480i/480p/576p only other parameters quant control adjustable – 1~31 (mpeg-2) mer s/n >= 30 db >= 40 db bit rate adjustable according to modulation bandwidth 3mbps~22mbps (15mbps typ.) adjustable parameters service provider name, service name program id, network id, video pid, audio pid other features   auto null packet fill up power consumption   6-24v 2.9w dc

• MOQ 1 Piece(s)

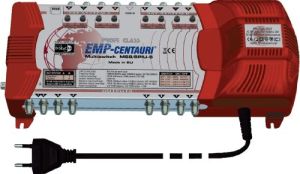

9in/8out standalone multiswitch for distribution of 8 sat if signals including terrestrial for up to 8 users.       parameter condition value frequency range lnb inputs 950-2300 mhz terr. Input 5-862 mhz (passive) 40-862 mhz (active) outputs 5-2300 mhz (passive) 40-2300 mhz (active) control   diseqc 1.0 (2.0) commands insertion loss 950-2300 mhz 0 db avg 5-862 mhz (passive) 16 db avg 40-862 mhz (active) 0 db avg sat. Inputs isolation between v/h polarisations 20 db min between low/high bands 20 db min between sat. Systems 25 db min maximum input level* sat. 90 dbµv avg** terr. 100 dbµv avg (passive) 90 dbµv avg (active) maximum output level* sat. 90 dbµv avg terr. 84 dbµv avg (passive) 90 dbµv avg (active) power consumption from each receiver 50 ma (18 v) from internal power supply 3 w (passive) 4.5 w (active) + lnb terr. Preamplifier supply   150 ma max (12 v dc) dimensions (w, d, h)   34.7 x 15.2 x 8.7 cm (power cord length 130 cm) temperature range   -30 ~ +70 °c

• MOQ 1 Piece(s)

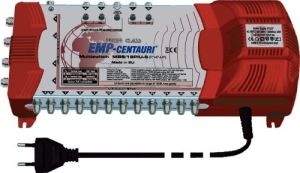

5in/16out standalone multiswitch for distribution of 4 sat if signals including terrestrial for up to 16 users.       parameter condition value frequency range lnb inputs 950-2300 mhz terr. Input 5-862 mhz (passive) 40-862 mhz (active) outputs 5-2300 mhz (passive) 40-2300 mhz (active) control   13/18 v + 0/22 khz insertion gain / loss sat. 0 db avg. terr active gain 6 db avg terr. Passive loss 22 db avg sat. Inputs isolation   20 db min maximum input level* sat. 90 dbµv avg** terr. 100 dbµv avg (passive) 85 dbµv avg (active) maximum output level* sat. 90 dbµv avg terr. 78 dbµv avg (passive) 91 dbµv avg (active) power consumption from each receiver 40 ma (18 v) from internal power supply 5 w (passive) 9 w (active) + lnb terr. Preamplifier supply   100 ma max (12 v dc) dimensions (w, d, h)   35.4 x 15.2 x 8.7 cm (power cord length 130 cm) temperature range   -30 ~ +70 °c

• MOQ 1 Piece(s)

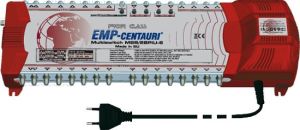

5in/28out standalone multiswitch for distribution of 4 sat if signals including terrestrial for up to 28 user.       parameter condition value frequency range lnb inputs 950-2300 mhz terr. Input 5-862 mhz (passive) 40-862 mhz (active) outputs 5-2300 mhz (passive) 40-2300 mhz (active) control   13/18 v + 0/22 khz insertion loss sat. 4 db avg. terr active 10 db avg terr. Passive 25 db avg sat. Inputs isolation   20 db min maximum input level* sat. 90 dbµv avg** terr. 100 dbµv avg (passive) 90 dbµv avg (active) maximum output level* sat. 86 dbµv avg terr. 75 dbµv avg (passive) 80 dbµv avg (active) power consumption from each receiver 40 ma (18 v) from internal power supply 3.5 w (passive) 5 w (active) + lnb terr. Preamplifier supply   100 ma max (12 v dc) dimensions (w, d, h)   47.0 x 15.2 x 8.7 cm (power cord length 130 cm) temperature range   -30 ~ +65 °c

• MOQ 1 Piece(s)
• ColorRed, Grey

13in/8out standalone multiswitch for distribution of 12 sat if signals including terrestrial for up to 8 users.       parameter condition value frequency range lnb inputs 950-2300 mhz terr. Input 5-862 mhz (passive) 40-862 mhz (active) outputs 5-2300 mhz (passive) 40-2300 mhz (active) control   diseqc 1.0 (2.0) commands insertion loss sat. 0 db avg terr. Passive 16 db avg terr. Active 2 db avg sat. Inputs isolation between v/h polarisations 20 db min between low/high bands 20 db min between sat. Systems 25 db min maximum input level* sat. 90 dbµv avg** terr. 100 dbµv avg (passive) 90 dbµv avg (active) maximum output level* sat. 90 dbµv avg terr. 84 dbµv avg (passive) 88 dbµv avg (active) power consumption from each receiver 75 ma (18 v) from internal power supply 4.5 w (passive) 6.5 w (active) + lnb terr. Preamplifier supply   150 ma max (12 v dc) dimensions (w, d, h)   47.0 x 15.2 x 8.7 cm (power cord length 130 cm) temperature range   -30 ~ +70 °c

• MOQ 1 Piece(s)

17in/8out standalone multiswitch for distribution of 16 sat if signals including terrestrial for up to 8 users.       parameter condition value frequency range lnb inputs 950-2300 mhz terr. Input 5-862 mhz (passive) 40-862 mhz (active) outputs 5-2300 mhz (passive) 40-2300 mhz (active) control   diseqc 1.0 (2.0) commands insertion loss sat. 0 db avg terr. Passive 16 db avg terr. Active 2 db avg sat. Inputs isolation between v/h polarisations 20 db min between low/high bands 20 db min between sat. Systems 25 db min maximum input level* sat. 90 dbµv avg** terr. 100 dbµv avg (passive) 90 dbµv avg (active) maximum output level* sat. 90 dbµv avg terr. 84 dbµv avg (passive) 88 dbµv avg (active) power consumption from each receiver 75 ma (18 v) from internal power supply 4.5 w (passive) 6.5 w (active) + lnb terr. Preamplifier supply   150 ma max (12 v dc) dimensions (w, d, h)   47.0 x 15.2 x 8.7 cm (power cord length 130 cm) temperature range   -30 ~ +70 °c

• MOQ 1 Piece(s)

13in/13out+20 compact cascadable multiswitch for distribution terrestrial and satellite signals from 3 satellite positions (12 polarities) to 20 users. the multiswitch is dc supplied from connected satellite receivers, 2.1 socket for external power is connected to all satellite trunk lines. Dc power is present at the terr line, avoid short circuit! using a rotary trimmer it is possible to switch terrestrial band fromactive to passive mode. The loss at user outputs in satellite band is adjustable by another rotary trimmer in the range 5-20db. The attenuation at the outputs can be set by means of the trimmer together for each five outputs.       parameter condition value frequency range sat. Trunks 950-2150 mhz terr. Trunk 20-862 mhz user outputs 20-2150 mhz control   13/18 v + 0/22 khz + diseqc insertion loss - user outputs sat. 5-20 db avg terr. Active / passive 12/26 db avg insertion loss - trunk outputs sat. 3 db avg terr. 5 db avg sat. Inputs isolation at user outputs 20 db min at trunk outputs 25 db min maximum input level* sat./terr. 105 / 105 dbµv maximum user output level* sat./terr. 100 / 93 dbµv current consumption per user output 100 ma at 18v dc dimensions (w, d, h)   18.6 x 24.5 x 5.1 cm temperature range   -25 ~ +60 °c weight   1.050 kg

• MOQ 1 Piece(s)
• Brand NameEMP-Centauri
• Number Of FlowerSatellite Multiswitch

5in/5out+12 compact cascadable multiswitch for distribution terrestrial and satellite signals from 1 satellite position (4 polarities) to 12 users. the multiswitch is dc supplied from connected satellite receivers. Trunk lines pass dc current, if applied. Power from any of receivers is passed to hor/low trunk line. the product is offered in 2 versions with different loss at user outputs, please pay attention to the right part number.       parameter condition value frequency range sat. Trunks 950-2150 mhz terr. Trunk 5-862 mhz user outputs 5-2150 mhz control   13/18 v + 0/22 khz insertion loss - user outputs sat. / terr. (ms5/5+12elp5db-4) 5 / 24 db avg sat. / terr. (ms5/5+12elp10db-4) 10 / 27 db avg insertion loss - trunk outputs sat. 4 db avg terr. 3 db avg sat. Inputs isolation at user outputs 20 db min at trunk outputs 25 db min maximum input level* sat. 90 dbµv avg terr. 110 dbµv avg maximum user output level* sat. / terr. (ms5/5+12elp5db-4) 85 / 86 dbµv sat. / terr. (ms5/5+12elp10db-4) 80 / 83 dbµv current consumption per user output 50 ma dc current pass   500 ma dimensions (w, d, h)   18.2 x 15.2 x 4.5 cm temperature range   -25 ~ +60 °c

• MOQ 1 Piece(s)

eoc enabled end wall socket, outputs sat+tv+2xrj45, 100 mbit/s. only for use with emp-centauri net class multiswitches.       parameter condition value frequency range sat 950-2300 mhz tv 470-862 mhz data   2x rj45 10base-t (10 mbit/s), 100base-tx (100 mbit/s) insertion loss sat 3 db avg. tv 3 db avg current consumption max. 60 ma (12 v) dimensions (w, d, h)   7.6 x 7.6 x 4.0 cm (incl. Plastic cover) temperature range   -25 ~ +60 °c
