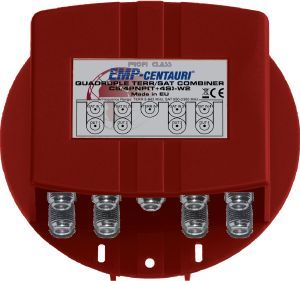

C5/4PNP(T+4S)-W2 Satellite Switchboard

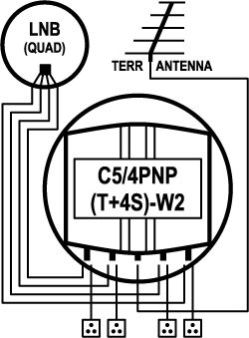

5in/4out TERR and SAT quadruple combiner designed for adding terrestrial signals to all outputs of Quad LNB (Monoblock Quad LNB). Satellite inputs transmit DC voltage, 22 kHz and DiSEqC commands from respective outputs. Terrestrial input is DC isolated.       Parameter Condition Value Frequency range Sat. 950-2300 MHz Terr. 5-862 MHz Insertion loss Sat. 2 dB avg Terr. 9 dB avg Isolation between sat. inputs   30 dB min Dimensions (w,d,h)   11.2 x 11.2 x 4.9 cm Temperature range   -30 ~ +70 °C
