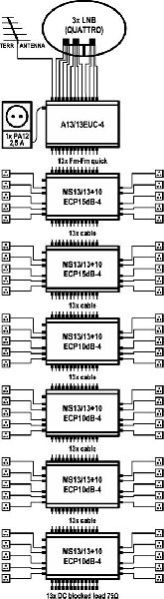

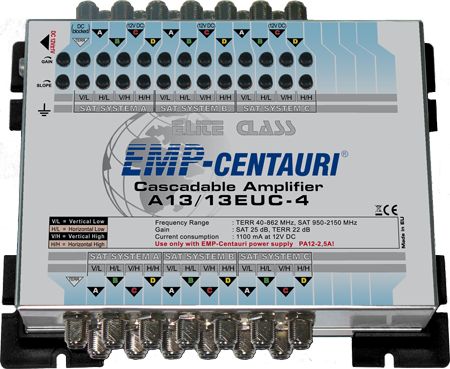

13in/13out cascadable amplifier with adjustable gain and slope steepness for distribution of terrestrial & satellite signals from 3 satellite position (12 polarities).
The amplifier is powered from power supply PA12 2A (included). The voltage appears on each Vert/High input and can supply the LNB or other devices in the cascade. All other trunk lines are DC blocked.
The amplifier cannot be powered from follow-up multiswitches.
| Parameter | Condition | Value |
| Frequency range | Sat. trunks | 950-2150 MHz |
| Terr. trunk | 40-862 MHz | |
| Insertion gain | Sat. | 25 dB avg |
| Terr. | 22 dB avg | |
| Gain control range | 10 dB avg | |
| Isolation between trunks | 25 dB min | |

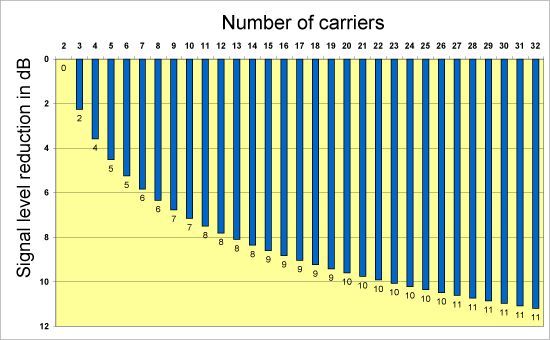

| Maximum input level* | Sat. | 90 dBµV |
| Terr. | 85 dBµV | |
| Maximum output level* | Sat. | 115 dBµV |
| Terr. | 107 dBµV | |
| Current consumption | 1100 mA (12V DC) | |
| Dimensions (w,d,h) | 18.6 x 14.6 x 5.5 cm | |
| Temperature range | -25 ~ +50 °C |
