Powertrac Meters and Transformers

Mansarovar, Jaipur, Rajasthan

• Min. Order (MOQ) 20 Piece
• Frequency 50 Hz ± 5%
• Standard IS: 1248 / IEC 60051

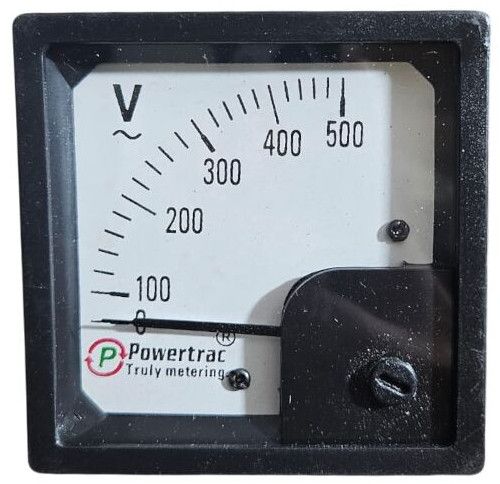

• Type Analogue Voltmeter (Moving Iron, Panel Mounting)
• Country of Origin India
• Color Light Grey
• Power Type AC, DC
• Certification CE Certified
• Feature Accuracy, Easy To Use
• System Voltage 240 V / 415 V AC (phase-to-neutral / phase-to-phase), other ranges on request
• Size 96 × 96 mm and 72 × 72 mm (Square, DIN standard)
• Measuring Range Common ranges: 0–150 V, 0–300 V, 0–500 V, 0–600 V (custom ranges available)
• Accuracy Class Class 1.5 (standard) or Class 1.0 (optional)
• Scale Linear, 90° or 240° deflection, white background with black markings
• Pointer Knife-edge pointer, black
• Case Construction Moulded Polycarbonate / ABS plastic, flame-retardant
• Mounting Flush / Panel mounting with clamp
• Terminal Connections Screw type terminals at rear
• Overload Capacity 1.2 × rated voltage (continuous), 2 × rated voltage (for 5 sec)
• Insulation Class Class B / E
• Ambient Temperature –10°C to +55°C
• Options Customized scale ranges (e.g., dual scale), square-root scale (if required)

• Min. Order (MOQ) 20 Piece
• Country of Origin India
• Body Material Plastic
• Color Grey
• Automatic Grade Manual
• Power Source Electric
• Application Panel Monitor
• Certification CE Certified
• Instrument Type KWH Meter
• Mounting Panel / Flush mounted
• Size 96 × 96 mm (DIN standard)
• Display 3-Line Bright LED / LCD, 4 digits, Auto-scroll / Manual selection
• Accuracy Class Class 0.5 (IEC 62053-22 / IS standards)
• Measured Parameters - Voltage (Phase & Line) - Current (Phase & Neutral) - Frequency - Active Power (kW) - Reactive Powe
• Energy Measurement - kWh Import / Export / Net - kVArh Import / Export - kVAh Total - MD (Maximum Demand)
• Harmonics THD Voltage & THD Current up to 31st harmonic
• Input Voltage 3 Phase, 4 Wire, 415 V L-L / 230 V L-N (50% – 120% of nominal)
• Input Current 1A / 5A CT programmable (5% – 120% of rated)
• Frequency Range 45 – 65 Hz
• Auxiliary Supply 230 V AC ±20% (Optional: 110 V AC / DC)
• Power Consumption < 5 VA
• Processing True RMS, DSP / Microcontroller based
• Communication Optional RS485 port, MODBUS-RTU protocol
• DG Reading Feature Compatible for Single Source and Dual Source DG measurement (Import / Export registers)
• Environmental Conditions Operating Temp: –10°C to +55°C - Storage Temp: –20°C to +70°C - Humidity: ≤ 95% RH (non-condensing)
• Enclosure &amp; Protection - Housing: Flame retardant ABS / Polycarbonate - Front: IP54, Rear: IP20
• Standards Compliance IEC 62053-22 (Accuracy), IEC 61010-1 (Safety), IEC 61326 (EMC)

Additional Information:

• Min. Order (MOQ) 20 Piece
• Color Grey
• Condition New
• Automatic Grade Automatic
• Power Source Battery
• Application Control Panels, Industrial Use, Power Grade Use
• Feature Easy To Use
• Type Analogue Ammeter (Moving Iron, Panel Mounting)
• Country of Origin India
• Standards IS: 1248 / IEC 60051
• Insulation Class Class B / E
• Service Conditions Indoor, suitable for tropical climate
• Dial Markings As per IS: 1248 (Scale, Range, Accuracy Class, Manufacturer, Serial No.)
• Protection IP 20 (front) / higher on request
• Pointer Knife-edge pointer, black
• Case Construction Moulded Polycarbonate / ABS plastic, flame-retardant
• Mounting Flush / Panel mounting with clamp
• Terminal Connections Screw type terminals at rear
• Routine Tests As per IS: 1248 (Insulation, Accuracy, Deflection, Durability, etc.)
• Options CT-operated models (for higher currents), customized scale markings if required

• Min. Order (MOQ) 20 Piece
• Type Residual
• Shape Round
• Color Black
• Current 30 MA To 3000 MA (0.03 A – 3.0 A)
• Window Size 30, 50, 70, 100, 150, 200, 250, 300, 400 And 600 Mm
• Core Material Cold-rolled Grain-oriented Silicon Steel Or Equivalent Low-loss Magnetic Material
• Housing Flame-retardant, UV-stable, Thermoset Material. Provision For Mounting Clamps Or Bolt Holes As Per O
