Ring Current Transformer

We offer a complete product range of 300 A Resin Cast Ring Type Current Transformer, 400-600 A Resin Cast Ring Type Current Transformer, 600-800 A Resin Cast Ring Type Current Transformer and 30-800A Resin Cast Ring Type Current Transformer

300 A Resin Cast Ring Type Current Transformer

300 A Resin Cast Ring Type Current Transformer
  • Min. Order (MOQ) 20 Piece
  • Frequency 50 Hz ± 5%
  • Type Ring Type / Window, Resin Cast CT
  • Country of Origin India
  • Standards IS: 2705 (Part I–IV) / IEC 61869-2
  • System Voltage 1.1 kV (LT Application)
  • Ratio 300/5 A
  • Core Single Core
  • Accuracy Class Class 1
  • Burden 5–10 VA
  • Window / Inner Diameter 45 mm
  • Outer Dimensions (L×W×H) 90 × 90 × 40 mm
  • Continuous Thermal Current 1.2 × Rated Current
  • Short Time Current As per IS: 2705 (e.g., 25 × rated current for 1 sec)
  • Instrument Security Factor (ISF) ≤ 5
  • Construction Resin / Epoxy encapsulated, flame-retardant housing
  • Terminals Electrolytic copper, screw-type with protective terminal cover
  • Mounting Busbar / Cable pass-through
  • Insulation Class E / Class B
  • Ambient Temperature –10°C to +55°C
  • Service Conditions Indoor, suitable for tropical climate
  • Markings As per IS: 2705 (Ratio, VA, Class, Serial No., Year, IS marking)
  • Routine & Type Tests As per IS: 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality 300 A Resin Cast Ring Type Current Transformer originating from India. This transformer is designed for LT applications with a system voltage of 1.1 kV and a frequency of 50 Hz ± 5%. It complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, offering a ratio of 300/5 A and an accuracy class of Class 1. The single-core transformer features a 45 mm inner diameter window, with a burden of 5–10 VA. Trust in our reliable and efficient product for your current measurement needs.

Additional Information:

Payment Terms : T/T

Packaging Details : as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs

Delivery Time : 7 days

View Complete Details
Ask Latest Price & Details
400-600 A Resin Cast Ring Type Current Transformer

400-600 A Resin Cast Ring Type Current Transformer
  • Min. Order (MOQ) 20 Piece
  • Country of Origin India
  • Type Ring Type / Window, Resin Cast CT
  • Frequency 50 Hz ± 5%
  • Standards IS: 2705 (Part I–IV) / IEC 61869-2
  • System Voltage 1.1 kV (LT Application)
  • Ratio 400/5 A 600/5A
  • Core Single Core
  • Accuracy Class Class 1
  • Burden 5–10 VA
  • Window / Inner Diameter 55 mm
  • Outer Dimensions (L×W×H) 100 × 100 × 40 mm
  • Continuous Thermal Current 1.2 × rated current
  • Short Time Current As per IS: 2705 (e.g., 25 × rated current for 1 sec)
  • Instrument Security Factor (ISF) ≤ 5
  • Construction Resin / Epoxy encapsulated, flame-retardant housing
  • Terminals Electrolytic copper, screw-type with protective terminal cover
  • Mounting Busbar / Cable pass-through
  • Insulation Class E / Class B
  • Ambient Temperature –10°C to +55°C
  • Service Conditions Indoor, suitable for tropical climate
  • Markings As per IS: 2705 (Ratio, VA, Class, Serial No., Year, IS marking)
  • Routine & Type Tests As per IS: 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)
We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality 400-600 A Resin Cast Ring Type Current Transformer originating from India. This transformer is designed as per IS: 2705 / IEC 61869-2 standards for 1.1 kV system voltage in LT applications. With a frequency of 50 Hz 5%, it offers a ratio of 400/5 A or 600/5 A, single-core construction, and Class 1 accuracy. The transformer has a burden of 510 VA and features a 55mm window diameter. Ideal for various applications, this product ensures reliable performance and precise measurements.
View Complete Details
Ask Latest Price & Details

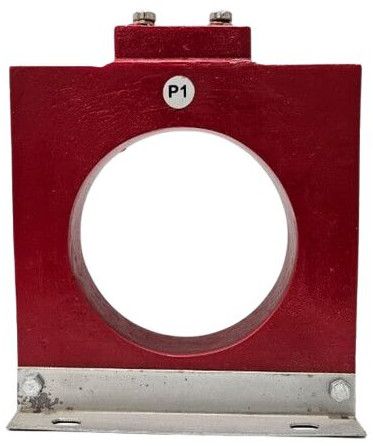

600-800 A Resin Cast Ring Type Current Transformer

600-800 A Resin Cast Ring Type Current Transformer
  • Min. Order (MOQ) 20 Piece
  • Country of Origin India
  • Type Ring Type / Window, Resin Cast CT
  • Frequency 50 Hz ± 5%
  • Standards IS: 2705 (Part I–IV) / IEC 61869-2
  • System Voltage 1.1 kV (LT Application)
  • Ratio 600/5 A 800/5A
  • Core Single Core
  • Accuracy Class Class 1
  • Burden 5–10 VA
  • Window / Inner Diameter 65 mm
  • Outer Dimensions (L×W×H) 110 × 110 × 40 mm
  • Continuous Thermal Current 1.2 × rated current
  • Short Time Current As per IS: 2705 (e.g., 25 × rated current for 1 sec)
  • Instrument Security Factor (ISF) ≤ 5
  • Construction Resin / Epoxy encapsulated, flame-retardant housing
  • Terminals Electrolytic copper, screw-type with protective terminal cover
  • Mounting Busbar / Cable pass-through
  • Insulation Class E / Class B
  • Ambient Temperature –10°C to +55°C
  • Service Conditions Indoor, suitable for tropical climate
  • Markings As per IS: 2705 (Ratio, VA, Class, Serial No., Year, IS marking)
  • Routine & Type Tests As per IS: 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality 600-800 A Resin Cast Ring Type Current Transformer from India. This transformer is designed for LT applications with a system voltage of 1.1 kV and a frequency of 50 Hz ± 5%. It complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, offering a ratio of 600/5 A or 800/5 A. Featuring a single core and Class 1 accuracy, it has a burden of 5–10 VA and a window diameter of 65 mm. Trust in our reliable and efficient product for your current measurement needs.

View Complete Details
Ask Latest Price & Details
30-800A Resin Cast Ring Type Current Transformer

30-800A Resin Cast Ring Type Current Transformer
  • Min. Order (MOQ) 20 Piece
  • Frequency 0-50Hz, 50 Hz ± 5%
  • Type Ring Type Current Transformers, Ring Type / Window, Resin Cast CT
  • Country of Origin India
  • Current Type Single Phase
  • Color Red
  • Condition New
  • Standards IS: 2705 (Part I–IV) / IEC 61869-2
  • System Voltage 1.1 kV (LT Application)
  • Ratio 30/5A, 60/5A, 100/5A, 150/5A, 200/5 A, 250/5 A, 300/5 A, 400/5A, 500/5A, 600/5A AND 800/5A
  • Core Single Core/Dual core
  • Accuracy Class Class 1, 0.5, 0.5s, 0.2, 0.2s
  • Burden 5–30 VA
  • Window / Inner Diameter 30-100 mm
  • Outer Dimensions (L×W×H) depending upon ratio
  • Continuous Thermal Current 1.2 × rated current
  • Short Time Current As per IS: 2705 (e.g., 25 × rated current for 1 sec)
  • Instrument Security Factor (ISF) ≤ 5
  • Construction Resin / Epoxy encapsulated, flame-retardant housing
  • Terminals Electrolytic copper, screw-type with protective terminal cover
  • Mounting Busbar / Cable pass-through
  • Insulation Class E / Class B
  • Ambient Temperature –10°C to +55°C
  • Service Conditions Indoor, suitable for tropical climate
  • Markings As per IS: 2705 (Ratio, VA, Class, Serial No., Year, IS marking)
  • Routine & Type Tests As per IS: 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality 200-300 A Resin Cast Ring Type Current Transformer originating from India. This transformer is designed for LT applications with a system voltage of 1.1 kV and a frequency of 50 Hz ± 5%. It complies with IS: 2705 (Part I–IV) / IEC 61869-2 standards, featuring a single core, 200/5 A ratio, and Class 1 accuracy. The transformer has a burden of 5–10 VA and a window diameter of 30–35 mm, making it ideal for various industrial applications.

Additional Information:

Payment Terms : T/T

Packaging Details : as per customer demand, individual and master packing as standards weight of one master pack not more than 24kgs

Delivery Time : 7 days

View Complete Details
Ask Latest Price & Details
