Our Products
Our product range contains a wide range of Concentric Tube Heat Exchanger and Shell & Tube Heat Exchanger (Water To Water)
Product Code: EKE 2315
Plain Tube ( Water To Water ):The apparatus consists of two concentric tubes. Inner tube consists of copper tube through which hot water flows. While the outer tube consists of GI pipe through which cold water flows. The arrangement enables the parallel and counter flow of the cold water. The inlet and outlet temperatures and the flow measurement enable to find out the heat exchanged LMTD, and effectiveness of the equipment.
Finned Tube ( Water To Air ):The apparatus consists of two concentric tubes. Inner tube consists of copper tube through which hot water flows. It is finned at its outer diameter to increase the heat transfer surface. While the outer tube consists of GI pipe through which cold air flows. The arrangement enables the parallel and counter flow of the air. The inlet and outlet temperatures and the flowmeasurement enable to find out the heat exchanged LMTD, and effectiveness of the equipment.
Plain Tube ( Water To Water ):
Specifications:
Services required220v, 15A, stabilized single-phase AC supply.Floor area - 3m x I m x 1 m height.
Finned Tube ( Water To Air ):
Specifications:
Services Required

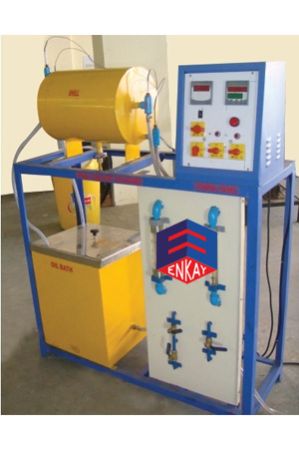

Product Code: EKE 2316Heat exchanger is the devices used to transfer the heat from one fluid to other. The shell and tube heat exchanger is two tube single pass heat exchanger. The hot fluid is hot water obtained from water heater. The coil fluid is cold water. The schematic flow arrangement is shown in figure. Hot water enters the lower side of end box, flows through the tubes in lower half of shell and comes to the other end of the shell. It reverses its direction, flows through tubes in upper half of the shell and leaves out. Cold water enters lower part of the shell passes over the tubes between the baffles and leaves out the shell through outlet at upper surface of shell.
Specifications:
Services Required
