Our Products
The corrosion of steel in concrete is an electro chemical process which creates a current flow causing metal to dissolve so that it is possible to asess the probability of reinforcement corrosion by evaluating the electrical resistance of the concrete.The factor is measured in terms of resistivity and expressed in Ohm. The resistivity of concrete varies a complete stricture due to a variety of changing site conditions from day to day so that other methods, like half cell potential or impact testing, should be combined to ensure the data.Generally, the portability of he steel corrosion increases, the concrete resistivity deceases.
One of the practical problem of concrete resistivity testing is to ensure the good electrical contact between the electrodes and concrete surface, In R-40, sponge insert Type sensor is used for good electrical contact.R-40 is supplied with wenner sensor carrying pouch, refrence block, connection cable, AC adaptor, sensor cleaning bottle, insert sponge, aluminium bag and instruction manual.
Features
R-40 Kit
Specification of R-40
Testing is carried out directly on the structure. It can be measured on any point of the structure. For the determination of the tension strength it is not necessary to install test devices prior to the casting of the concrete. It is ideal for the evaluation of strength in concrete renovation. such as plastic coatings, concrete coats, mortars and plasters, bituminous coats and paint finishes and coatings on metal.
Pull-Off Tester Dyna
Technical Information
The permeability of concrete at the surface (concrete cover) has been recognized as a major factor in determining the durability of concrete structures. Many specialists emphasize the importance of this property and the possibility of measuring it reliably - not only in the laboratory but also at the building site.
Technical Information Basic Unit
The unit is operated with a commercial vacuum pump. Technical data according to DIN 28400 - Suction capacity 1.5 m³ / h, final total pressure 10 mbar Suction-side connection: small flange 10 KF / 16 KF, high water vapour toleration.
Product Code: EKE 602The paint film is bent through 180º over a 6.35 mm dia rod and examined for any damage, detachment or cracking of the film. The tester consists of two plates hinged at one end with the help of a 6.35 mm dia rod. A stop is provided on one plate against which the painted panel can be held. Complete with 10x magnifier.
For determining pressure resistance properties of ready mixed paints and enamels by applying 1.81 kg load through a steel ball on two superimposed painted panels for five minutes and observing whether the base metal is visible. The tester consists of a free falling plunger, carrying a platform through a guiding frame
Details
For determining the scratch hardness of ready mixed paints and enamels, which is the minimum load required to produce a scratch showing the bare metal surface of the painted panel. The apparatus consists of a 1mm dia hemispherical stainless steel needle, fixed to a platform of a counter-balanced rod which is assembled on a grooved platform. A rack moves through the groove, to which a painted panel can be clamped. An indicator lamp is provided to indicate the metal contact it the needle penetrates the paint surface to make contact with the metal. Complete with 1 kg weight. Suitable for operation of 220 V, 50 Hz, single phase, AC supply.
Details
Used to determine the strength values of a rock specimen both in the field and in the laboratory. It consists of a load frame for applying loads up to 55 KN, on which a manual hydraulic jack is mounted. The instrument accepts core specimens up to 4” (101, 6 mm) diameter which are loaded by two coneshaped points. A graduated scale indicates the distance between the conical points. The applied load is measured by a pressure transducer with a digital display unit range 0-56kN, 65.000 divisions, 0, 001 kN resolution, accuracy: ± 1%. The strength index (IS) is got by the formula P : D2 where P is the strength and D the space between the two conical points.
Accessories:
Technical Specifications

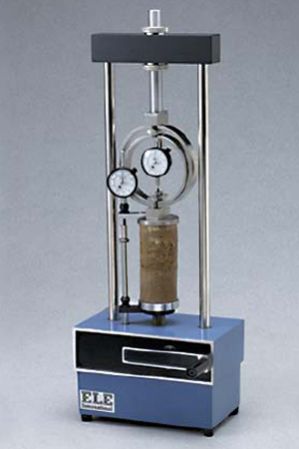

This equipment is used for determining unconfined compressive strength of intact rock core specimens. The rock sample is cut to length and the ends are machined flat. The specimen is placed in a loading frame and if required heated to the desired test temperature. Axial load is continuously increased on the specimen unit peak load and failure are obtained.
Details :
Additional Information:
Payment Terms : T/T
Delivery Time : Within 4 weeks
Permeability test on pozzolana cement mortar and cement mortar with or without the addition of integral water proofing compound is carried out using a brass cell of 100 mm dia and 50 mm high. Each cell with collar is clamped in-between a base plate and a top plate with the help of tension rods and nuts. The cell assembly is mounted on the stand. The top plate is provided with an inlet and air release vent and the base plate is provided with an outlet. A pressure chamber is fitted with a pressure regulator and a pressure gauge 0-10 kg/cm² indicating the chamber pressure, and a pressuregauge 0-7 kg/cm² indicating the test pressure. In three cell model, a pressure chamber is provided with foot pump, whereas in six cell model, the chamber is not provided, as this model is intended to be used with a compressor.
Details
The machine is designed with a Hydraulic Power pack and control circuit for effortless loading unloading operation. An adjustable Dwell Time Facility facilitates production testing within tolerance ensuring accuracy and reliability of test results. This facilitates production testing within tolerance limits by comparison method.
Standard Supply
Product Code: EHR 500EHR-500 can be used directly to measure Rockwell hardness and plastic Rockwell hardness, and it can change the value of Rockwell hardness into HB, HV, HLD, HK and ób value. Provided with many features such as
Specification
Standard Delivery
