Pull Off Tester

Testing is carried out directly on the structure. It can be measured on any point of the structure. For the determination of the tension strength it is not necessary to install test devices prior to the casting of the concrete. It is ideal for the evaluation of strength in concrete renovation. such as plastic coatings, concrete coats, mortars and plasters, bituminous coats and paint finishes and coatings on metal.

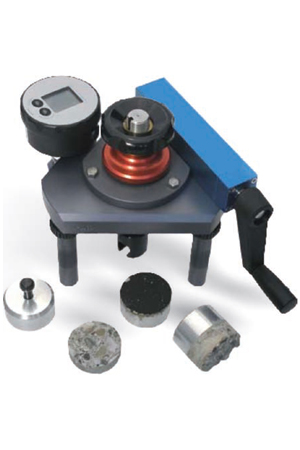

Pull-Off Tester Dyna

• Mobile for use in any location
• Independent of mains supply thanks to easy running crank drive
• Constant jerk-free load increase
• Weights only 3.5 kg (standard unit Z16)

Technical Information

• DYNA Tensile force Resolution Accuracy
• Permissible stroke
• Z16 16 kN 0.01 N/mm² < 2% 3.5 mm
• Z6 6 kN 0.01 N/mm² < 2% 4.0 mm
