FFV Process Solution

Rakhial, Ahmedabad, Gujarat

• Quick opening & closing compared to Electrical Actuator Ball Valve
• Lightweight due to their compact rack and pinion Construction
• Easy maintenance and long life cycle
• Can be installed in door as well as outdoor Environment
• Actuators have high bore finished are factory lubricated for good life cycle in normal conditions
• Extruded Aluminium Hard Anodised for Corrosion Protection & wear resistance
• Pneumatic Actuator ball valves give higher flows and wider media compatibility

• FFV Y type Control Valve have High flow capacity
• Compact, Light weight, Easy to install and maintain
• Small actuator, low air consumption
• Gland Packing is self adjustable, self-regulating seal & self cleaning
• Simple design, Easy to assembly
• Valve can be assembled in horizontal, vertical or angled position

• Power supply availability of wide ranges
• Have less noise pollution
• Have less maintenance on over all accessories equipped by system
• Less friction & lubrication
• Components are lightweight
• Comparable life to pneumatic operators
• Optional manual override
• Top indicators optional

• High Tempereture Line

• Manufacturing Std:BS 5352
• Testing & Inspection Std:API 602
• End Connection Socket Weld/Screwed end/Butt Weld/Flange end/800#

• FFV below Seal Valves are Machine with High Quality material.
• These Valves are Design With Positive Stem Sealing to prevent the zero Stem Seal Leakage in Environment
• FFV Below Seal Valves are used in High Temperature, Vacuum and High Pressure Lines
• It also High Strength Bellow for Pressure Difference
• FFV Below Seal Valves are widely Used in Thermic Fluid Line, Refrigeration gases, Cryogenic, Hydrochloride Acid, Chemical Line and All major Gases Line to Protect from Ozen Layer
• Below Seal Valves Will Reduce Cycle Cost and have good Functional Life
• Design Standard:API 593/API 600/ BS 5352/ HS 18/3
• Insp & Testing :API 598/BS 5146/ BS EN 12266 1 / BS 6755 -1
• Face to Face:As per ANSI B 16.10 / BS 5352

• MOC Aluminium of best grade
• Compact Design & Light Weight
• Seals Nitrile
• Useful for controlling flow of air
• Detente Type for neutral in centred position
• Dry or lubricated operation

• Compact Size, Light weight, aluminum bodies and Buna-N seals
• Suitable for panel mounting
• Mounting provision for individual unit
• High pressure and flow capability for maximum cost-effectiveness
• Maximize machine life due quiet low vibration

FFV Make Single Piece Design High Pressure Ball Valve.Forged Ball Valve, C.S Ball Valve Round Body / Square Body / Short Pattern Ball Valve.

• Self adjusting stem packing
• Available in 3 Way/4 Way L-Port/T-Port
• Blow Out proof stem design anti blow out proof stem design

FFV Manufacture Single Piece, Two Piece & Three Piece Design Ball Valve.

Cast Steel Ball Valves Have Been Designed To Meet The Requirements BS 5351/ASME B 16.34 /API 6D /API 608.

Face to Face an End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN

End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN

Butt weld end dimensions conform to ASME B 16.25

Screwed Ends to BSP / BSPT / NPT Female Threads

Socket Weld Ends to ANSI-B-16.11

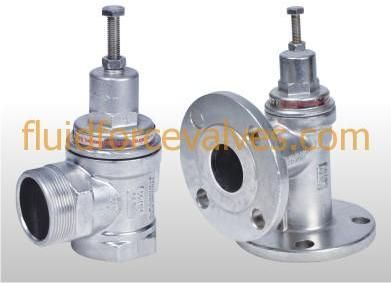

Safety Valve (Pressure Relief Valve) which automatically releases a substance from a boiler, pressure vessel, or other system, when the pressure or temperature exceeds preset limits. Also pilot-operated relief valves could have the function of safety valves.

Safety Valves are used on Pressure equipments, Containers or Pipeline as over Pressure in the equipment increase and exceeds allowance.the valve can automatically open to discharges some mediums to prevent the pressure keeping raised.when the pressure decreases till to the stipulated value, the valve can close in time to avoic the pressure too much reduced, so that normal production will be carried out.
