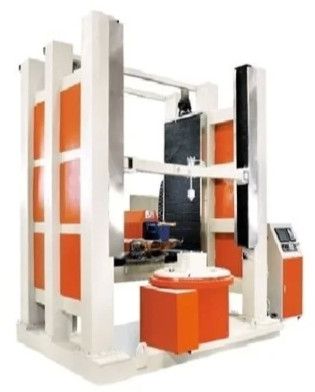

- Large 3D Stone Caring Machine

CNC Machine

We offer a complete product range of 3 Axis Dual Head Post CNC Router, 5 Axis CNC Engraving Machine, CNC 5 Axis Bridge Saw Machine, CS-3915 4 Four Head Horizontal CNC Cutting Machine and CNC Column Cutting Machine

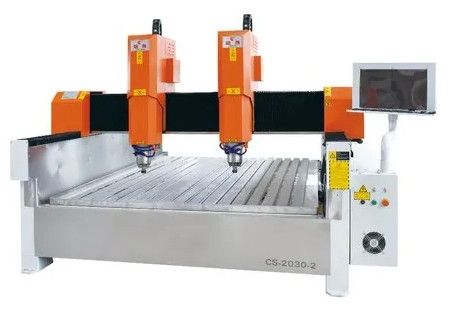

3 Axis Dual Head Post CNC Router

Min. Order (MOQ) 1 Piece
Type CNC Router
Usage/Application Woodworking, Metalworking, Plastic Fabrication
Number Of Axis 3 Axis
Head Type Dual Head
Material Metal And Plastic
Color Various
Power Supply Electric
Maximum Speed High Speed

We offer a high-speed 3 Axis Dual Head CNC Router designed for woodworking applications. This CNC router features dual heads for efficient operation, suitable for working with both metal and plastic materials. Available in various colors, this electric-powered machine ensures precision and productivity. As a Manufacturer, Exporter, and Supplier, we provide a reliable solution for your woodworking needs with this versatile CNC router.

View Complete Details

Ask Latest Price & Details

5 Axis CNC Engraving Machine

Min. Order (MOQ) 1 piece
Machine Power 16kw
Spindle Parameters 7.5kw Water Cooling Splinderrpm18000 - 24000 with Air Seal Protection
Repeat Positioning Accuracy ±0.03mm
Processing Accuracy ±0.1mm
Maximum Empty Line Speed 25m/min
Operating Voltage AC 380V/50Hz
Water Supply Available
Water Flow Rate 3m³/h
Gas Supply Pressure 0.4mpa
Gas Type Dry Gas
Minimum Floor Space 18m²
Foundation Requirements Hard Concrete Floor
Water Circulation External Circulating Water Required

We provide a high-performance 5 Axis CNC Engraving Machine with a powerful 16kw machine power. Featuring a 7.5kw water-cooling spindle with RPM ranging from 18000 to 24000 and air seal protection for precision engraving. This machine offers exceptional accuracy with repeat positioning accuracy of 0.03mm and processing accuracy of 0.1mm. With a maximum empty line speed of 25m/min, this CNC machine ensures efficient operation. Operating at AC 380V/50Hz, it is equipped with water supply at 3m/h flow rate and dry gas supply at 0.4mpa pressure. Ideal for manufacturers, exporters, and suppliers seeking top-notch engraving solutions.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

CNC 5 Axis Bridge Saw Machine

Min. Order (MOQ) 1 Piece
Type CNC 5 Axis Bridge Saw Machine
Fabric Steel Structure
Color Anti Rust Paint
Packaging Type Standard
Processing Size X:3600mm Y:2500mm Z:600mm
Feeding Height 300mm (700mm Blades)
Control System Cut CAM Full Functions Version Ethercat
Table Turning Angle 0-85°
Head Rotation Angle -360°~360°
Maximum Travelling Speed 25m/min
Blade Diameter Max 350mm~700mm
Main Motor Power 22KW SNT Brand With Inverter
Total Power 38KW
Ball Screw TBI Taiwan-4010
Rack Hiwin X 35, Y 30 Double, Z 35
Inverter Veichi-China
Disconnector Schneider Brand
Disconnecting Switch Schneider Brand
Contactor Schneider Brand
Emergency Stop Button Siemens Brand
System Power Supply MW Brand
Water Consumption Automatic Supply
Gross Weight ≈7800kg
Operating Voltage 3P/380V/50Hz
Frequency 50Hz
Tool Setter Automatic For Blades And Side Spindle Tool
Thickness Probe Automatic For Slab Thickness Measure
Camera HIK VISION Camera Self-positioning With Cover
Ambient Temperature 0~45°C

Configuration Description

1. Main motor: high quality permanent magnet motor

2. System: Cut CAM intelligent system

3. Ethernet interface

4. 19-inch LCD touch screen computer

5. Drive and motor: Ether CAT absolute value servo and drive

6. Gears, racks, and guide rails: high-precision for all from Taiwan

7. Lubrication method: the gears, racks and guide rails of the X and Z axis are refueled by automatic oil pumps, the A/C axis are lubricated with grease, and the gears, racks and guide rails of the Y axis are lubricated by oil tank.

Cutting function:

1. Cutting (square, polygonal, shaped, round, chamfered, fan-shaped, oval, countertops, etc.)

2. Profiling function; (straight lines, arc lines, oblique lines, wavy lines, etc.)

3. One-click insert via AutoCAD for any shape cutting (Select in CAD, confirm, the system automatically obtains the cutting data

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

CS-3915 4 Four Head Horizontal CNC Cutting Machine

Min. Order (MOQ) 1 Piece
Type CNC Cutting Machine
Model CS-3915-4
Working Size 3900 X 1500 X 500 Mm
Maximum Stone Size 800 X 1500 Mm
Spindle Motor 7.5KW*4 Water Cooling
Working Accuracy +/- 0.5mm
Spindle Speed 0 - 24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/60Hz - 3 Phase
Drive And Motor Hybrid Servo
Control System Weihong NKI 05 G2 Hand Control Remote System
XYZ Structure X, Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball
Transmission Way Reducer Japan
Block & Guide Hiwin 25 & 30 Taiwan Brand
Rack Precision Halick Drive
Screw Taiwan Brand TBI Screw
Lubrication System Automatic Oil Filling Pump
Instruction G Code

We offer the CS-3915-4 Four Head Horizontal CNC Cutting Machine, a top-of-the-line CNC cutting machine designed for precision cutting. With a working size of 3900 x 1500 x 500 mm and a maximum stone size of 800 x 1500 mm, this machine ensures high-quality results. Equipped with 7.5KW*4 water-cooled spindle motors, it delivers exceptional performance. The machine operates at a spindle speed of 0-24000rpm, with a working accuracy of +/- 0.5mm. Its max traveling speed is 20000mm/min, and max working speed is 12000mm/min. Ideal for manufacturers, exporters, and suppliers in need of efficient cutting solutions.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

CNC Column Cutting Machine

₹ 42.50 Lakh / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Weight 4500 KG
Max Working Length 3500 Mm
Max Working Diameter 200-500 Mm
Saw Blade 400 Mm
Main Motor 15 KW
Total Power 30 KW
Water Consumption 5 M³/h
Machine Size 5800x2400x1200 Mm
Control System Dinosaw CNC

We are a leading Manufacturer, Exporter, and Supplier offering a CNC Column Cutting Machine designed for precision cutting. With a weight of 4500 KG, this machine boasts a Max Working Length of 3500 mm and Max Working Diameter of 200-500 mm. Equipped with a 400 mm Saw Blade and a powerful 15 KW Main Motor, it delivers efficient cutting performance. The total power of 30 KW ensures optimal operation. Featuring a Dinosaw CNC Control System, this machine consumes 5 M/h of water and has a compact size of 5800x2400x1200 mm. Upgrade your cutting capabilities with this advanced CNC machine.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

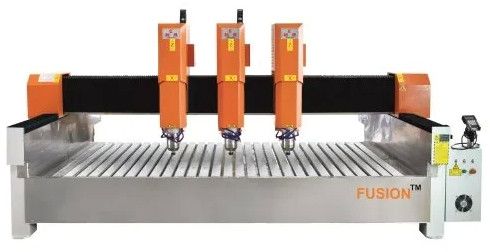

Three Head Horizontal CNC Cutting Machine

Min. Order (MOQ) 1 Set
Model CS-3014-3
Working Size 3000 X 1400 X 500 Mm
Maximum Stone Size 900 X 1400 Mm
Spindle Motor 7.5KW Water Cooling
Working Accuracy +/- 0.5mm
Spindle Speed 0 - 24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/60Hz - 3 Phase
Drive And Motor Hybrid Servo
Control System Weihong NKI 05 G2 Hand Control Remote System
XYZ Structure X, Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball
Transmission Way Reducer Japan
Block & Guide Hiwin 25 & 30 Taiwan Brand
Rack Precision Halick Drive
Screw Taiwan Brand TBI Screw
Lubrication System Automatic Oil Filling Pump
Instruction G Code

We are a leading Manufacturer, Exporter, and Supplier offering the CS-3014-3 Three Head Horizontal CNC Cutting Machine. With a working size of 3000 x 1400 x 500 mm and maximum stone size of 900 x 1400 mm, this machine ensures precise cutting. Equipped with a 7.5KW water-cooled spindle motor, it delivers high performance with a spindle speed of 0-24000rpm. The working accuracy of +/- 0.5mm, max traveling speed of 20000mm/min, and max working speed of 12000mm/min make it efficient for various applications. Operating at AC380V/60Hz - 3 Phase, the machine features hybrid servo drive and motor for optimal functionality.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Dual Head Split Type Three Axis CNC Router Machine

Min. Order (MOQ) 1 piece
Working Size 2200 X 3700 X 500 Mm
Spindle Motor 7.5 KW* 2 Water Cooling
Working Accuracy ±0.5mm
Spindle Speed 0-24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Control System Weihong NK105 G2 Hand Control Remote System
Models CS-2237-2 / CS-3050-2
Machine Type Gentry Type
Working Voltage AC380V/50Hz - 3 Phase
Guide & Ball Screw Taiwan Hiwin Guide XY30 , Z 35
Drive And Motor Lead Shine Servo Systems
XYZ Structure X, Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw -Taiwan

We are a leading Manufacturer, Exporter, and Supplier offering the Dual Head Split Type Three Axis CNC Router Machine. With a working size of 2200 X 3700 X 500 mm, this machine features a powerful 7.5 KW* 2 water-cooled spindle motor, ensuring precision with 0.5mm working accuracy. The spindle speed ranges from 0 to 24000rpm, while the max traveling speed is 20000mm/min and max working speed is 12000mm/min. Equipped with the Weihong NK105 G2 Hand Control Remote System, available in models CS-2237-2 / CS-3050-2, this Gentry Type machine operates on AC380V/50Hz - 3 Phase power supply.

View Complete Details

Ask Latest Price & Details

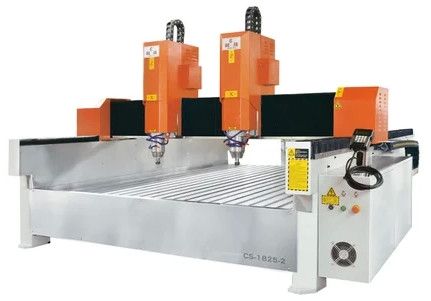

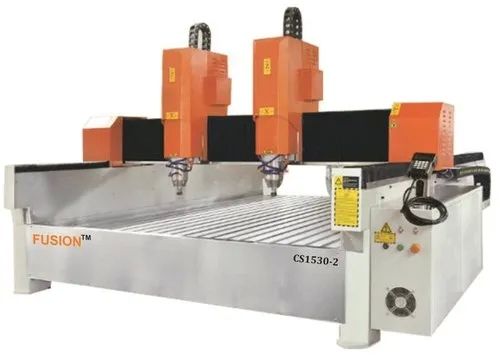

Dual Head Horizontal CNC Cutting Machine

Min. Order (MOQ) 1 Piece
Model CS-1530-2, CS-3015-2, CS-3700-2
Working Size 1500 X 3000 X 500 Mm, 3000 X 1500 X 500 Mm
Spindle Motor 7.5KW Water Cooling
Working Accuracy +/- 0.5mm
Spindle Speed 0 - 24000rpm
Max Traveling Speed 20000mm/min
Max Working Speed 12000mm/min
Working Voltage AC380V/60Hz - 3 Phase
Drive And Motor Hybrid Servo
Control System Weihong NKI 05 G2 Hand Control Remote System
XYZ Structure X, Y Rail With Rack & Pinion Z -Ball Screw With High Precision Ball Screw - Taiwan
Transmission Reducer Japan, Block & Guide Hiwin 25 & 30 Taiwan Brand, Rack Precision Halick Drive, Screw Taiwan Brand TBI Screw
Lubrication System Automatic Oil Filling Pump
Instruction G Code

We offer the advanced Dual Head Horizontal CNC Cutting Machine model CS-1530-2, featuring a working size of 1500 x 3000 x 500 mm. Equipped with a powerful 7.5KW water-cooled spindle motor, this machine ensures precision with a working accuracy of +/- 0.5mm. The spindle speed ranges from 0 to 24000rpm, while the max traveling speed is 20000mm/min and max working speed is 12000mm/min. Operating at AC380V/60Hz - 3 Phase, it utilizes hybrid servo drive and motor with a Weihong NKI 05 G2 Hand Control Remote System. Ideal for manufacturers, exporters, and suppliers seeking efficient CNC solutions.

More Info.

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
